Auto parts
Machine manufacturer
Military Aerospace
Mould
| Cooltant system | hydraulic station | lubrication system | working light | leveling wedges |
| foundation screw | wheel flange | wheel balance arbor | tool and tool box | magnetic chuck |
| standard wheel | PLC controller | operation manual | touched screen |
dust collection device | paper filter | magetic separator | wheel balance stand | Y Z axis DRO |
Description | Unit | SG2050NC2 SG2050NC3 | SGA2550NC2 SGA2550NC3 | SGA3063 NC2 SGA3063 NC3 |
Table size(L*W) | mm | 200*460 | 250*500 | 635*305 |
Distance from spindle center to worktable | mm | 450 | 450 | 580 |
Max. loading of table(including magentic chuck) | 120 | 180 | 270 | |
Magnetic chuck size | mm | 200*460 | 250*500 | 300*600 |
Wheel size(OD*Width*ID) | mm | 200*20*31.75 | 200*20*31.75 | 350*40*127 |
Spindle speed(stepless) | r/min | 2850 | 2850 | 1450 |
Worktable speed | m/min | 5-25(NC2 model);0.02-15(NC3 model) | ||
Worktable handwheel feed | Mm/div. | 0.005(NC3 mode) | ||
Vertical auto feed | mm/stoke | 0.001-0.05 | ||
Vertical feed rapid speed (motor) | m/min | 0-1 | ||
Vertical feed (handwheel) | mm/div. | 0.001 | ||
Transverse feed handwheel per division | mm | 0.005 | ||
Transverse auto feed | mm/min | 0.005-12 | ||
Transverse rapid feed | m/min | 0-1 | ||
Spindle motor | KW | 1.5 | 2.2 | 5.5 |
Hydraulic motor | KW | 0.75(NC2 model) | 2.2(NC2 model) | |
Cooltant motor | KW | 0.04 | 0.125 | |
Surface roughness | μm | Ra0.63 | ||
Description | Unit | SGA30100NC2 SGA30100 NC3 | SGA4080 NC2 SGA4080 NC3 | SGA40100 NC2 SGA40100 NC3 |
Table size(L*W) | mm | 305*1050 | 406*813 | 406*1020 |
Distance from spindle center to worktable | mm | 580 | ||
Max. loading of table(including magentic chuck) | 400 | 500 | 600 | |
Magnetic chuck size | mm | 300*1000 | 400*800 | 400*1000 |
Wheel size(OD*Width*ID) | mm | 350*40*127 | 350*40*127 | 350*40*127 |
Spindle speed(stepless) | r/min | 1450 | 1450 | 1450 |
Worktable speed | m/min | 5-25(NC2 model);0.02-15(NC3 model) | ||
Worktable handwheel feed | Mm/div. | 0.005(NC3 mode) | ||
Vertical auto feed | mm/stoke | 0.001-0.05 | ||
Vertical feed rapid speed (motor) | m/min | 0-1 | ||
Vertical feed (handwheel) | mm/div. | 0.001 | ||
Transverse feed handwheel per division | mm | 0.005 | ||
Transverse auto feed | mm/min | 0.005-12 | ||
Transverse rapid feed | m/min | 0-1 | ||
Spindle motor | KW | 5.5 | ||
Hydraulic motor | KW | 2.2(NC2 model) | ||
Cooltant motor | KW | 0.125 | ||
Surface roughness | μm | Ra0.63 | ||

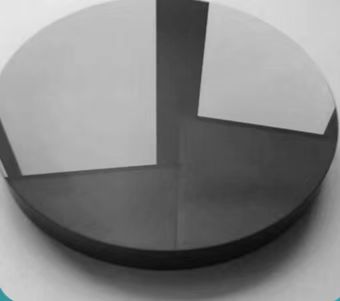

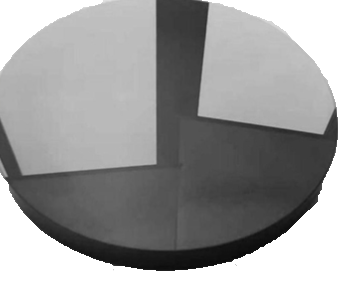

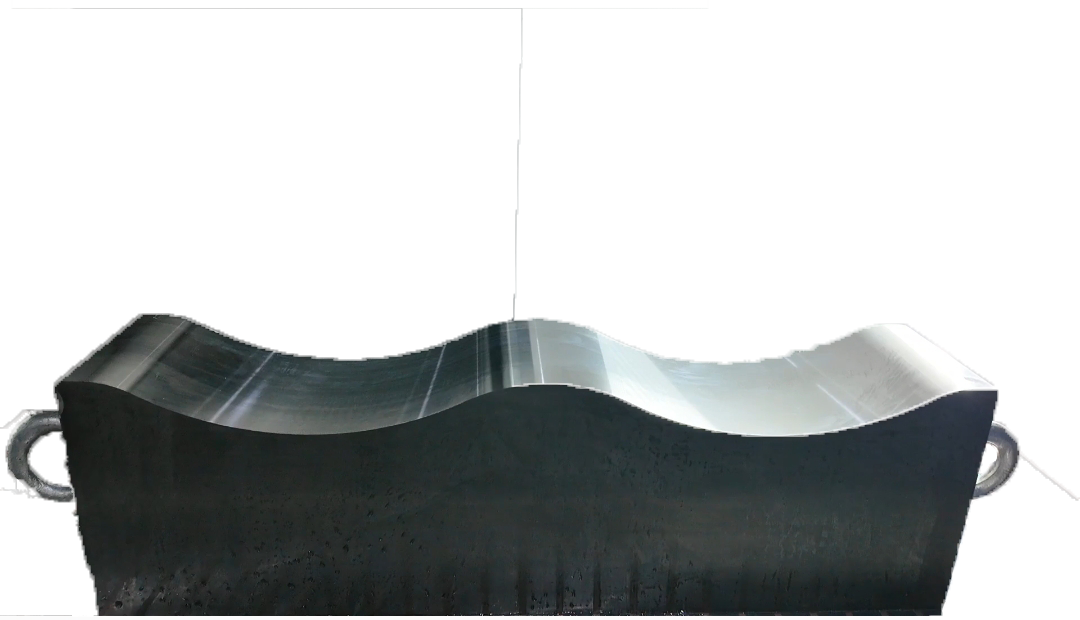

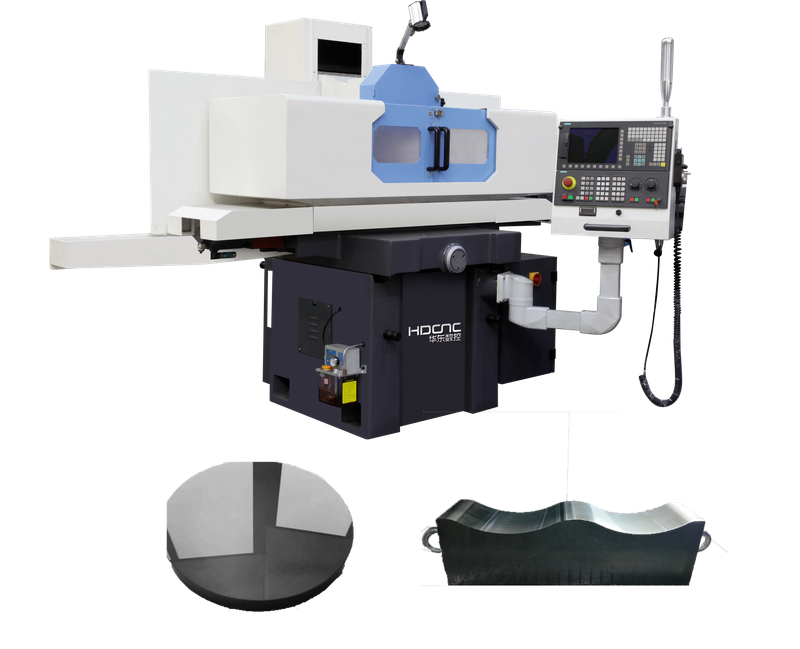

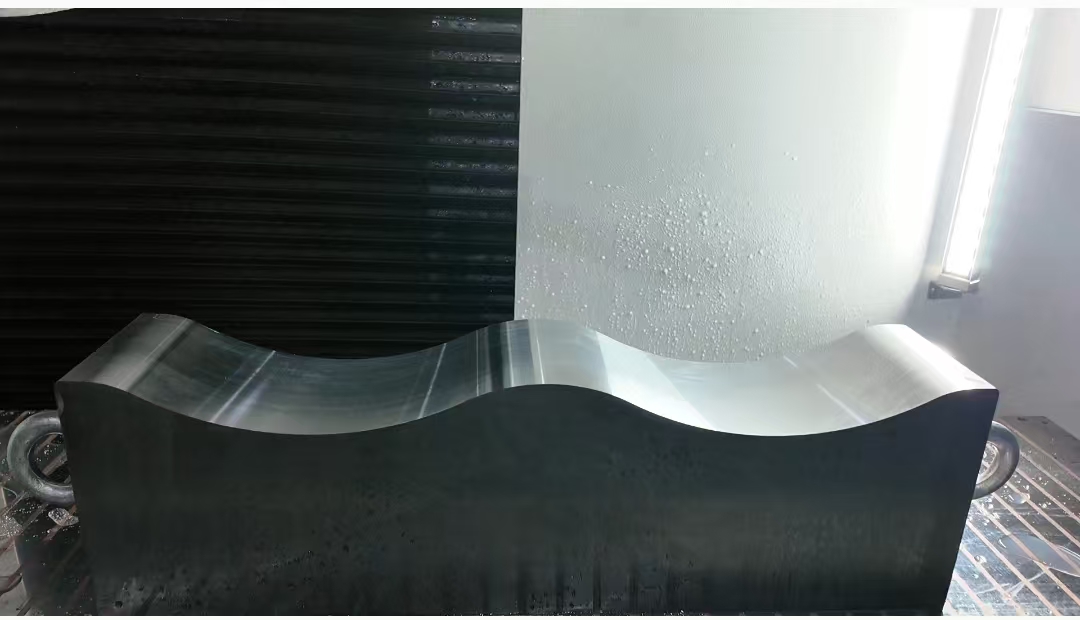

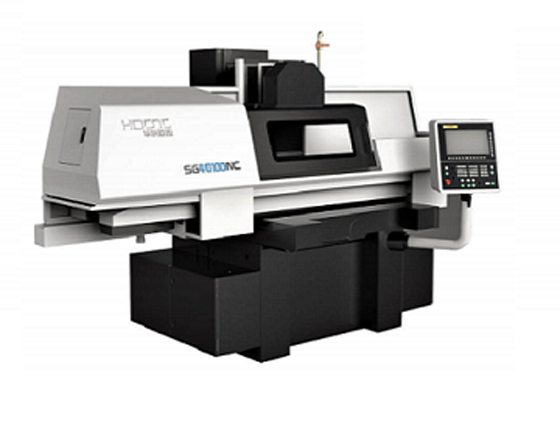

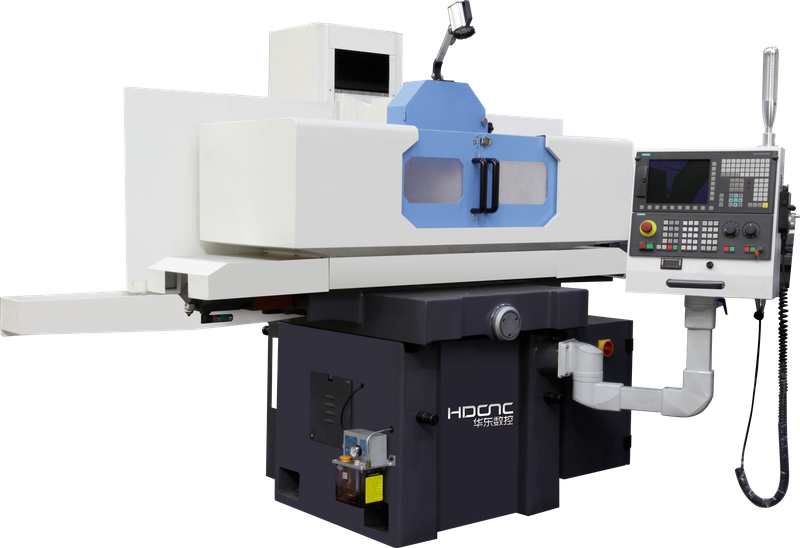

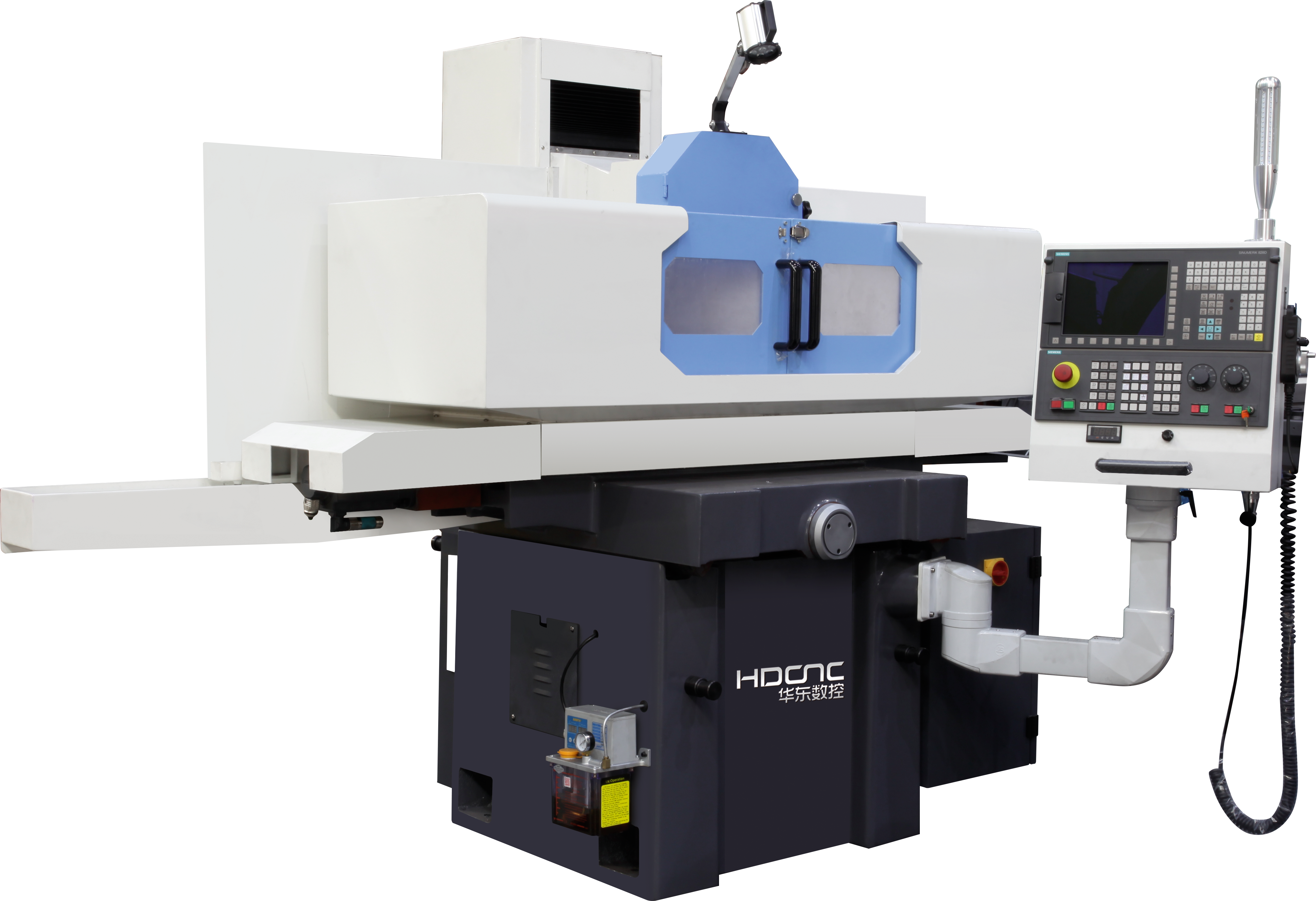

It adopts the layout of cross drag plate, and the main components adopt the new symmetrical structure design, which avoids the influence of temperature difference on the accuracy and has the rigidity of high strength structure and good damping performance.
The precision of the machine can reach um (0.001mm) level.
The table along the saddle left and right moving guideway for double V guideway, guide rail surface using manual, precision scraping development, left and right moving by independent hydraulic station closed hydraulic system drive, with strong rigidity, small thermal deformation, high grinding accuracy.
Preloaded precise linear guideway and precise ball screw drive are used for the lower and front and back movement of the grinding head, which can do accurate feeding with high repeatability.
The spindle for the special grinding head spindle, using dynamic pressure technology, sleeve structure into the spindle, spindle motor with elastic coupling and direct connection with spindle.
Dedicated man-machine interface for grinding, making grinding more simple and efficient.
