| Quantity: | |
|---|---|
Auto parts
Machine industry
Military areospace
Mould
| Cooltant system | hydraulic station | lubrication system | working light | leveling wedges |
| foundation screw | wheel flange | wheel balance arbor | tool and tool box | standard wheel |
Diamond pen | Wheel balance stand | Magnetic chuck | paper filter | DRO |
Description | Unit | MCW5316A | MCW5320A | MCW5325A | MCW5330A | MCW5335A |
Table width | mm | 1250 | 1600 | 2000 | 2500 | 3000 |
Table length | m | 2.0/2.5/3.5/4.0 | 2.5/3.5/4.5 /6/8 | 3.5/4.5/6/8/10/12/14/15/16 | 8/10/12/13 /14/15/16 | 8/10/12/13 /14/15/16 |
Max. grinding height | mm | 950 | 950 | 950 | 950 | 950 |
Max.wheel center to table | mm | 1250 | 1250 | 1250 | 1250 | 1250 |
Column distance | mm | 1600 | 2000 | 2500 | 3000 | 3500 |
Horizontal wheel head motor | kw | 22 | 22 | 22 | 30 | 30 |
Horizontal wheel size | mm | φ600*120*203 | φ600*120*305 | |||
Horizontal spindle speed | mm | 1050 | ||||
Vertical head motor | mm | 11 | 15 | |||
Vertical wheel size | mm | φ400*75*127 | ||||
Vertical spindle speed | mm | 800-2500 | ||||
Vertical head rotation | ° | ±90 | ||||
Hydrostatic bearing has the advantages of high motion accuracy, no wear, long life, small starting power, high bearing capacity and good vibration resistance at high speed
Longitudinal moves hydraulically with variable speed

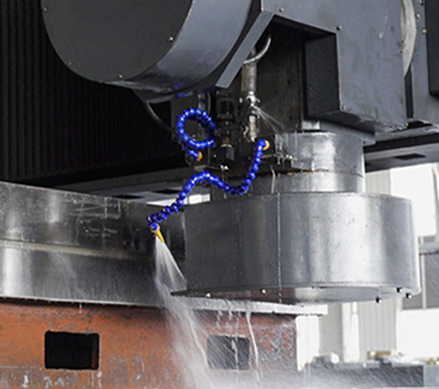

CNC rotary table is used to drive the vertical head,the min.division is 0.01 degree.
MKW series means the machine can be configured with the CNC system to expand to 2 axis CNC machine.
