| Quantity: | |
|---|---|
Auto Parts
Machine manufacturer
Military Aerospace
Mould
| Cooltant system | working light | leveling wedges | foundation screw | wheel flange |
| wheel balance arbor | magnetic chuck | standard wheel | operation manual | wheel dressing base |
| PLC controller | touched screen | operation manual |
diamond pen | magnetic separator | wheel balance stand | DRO | dust collection |

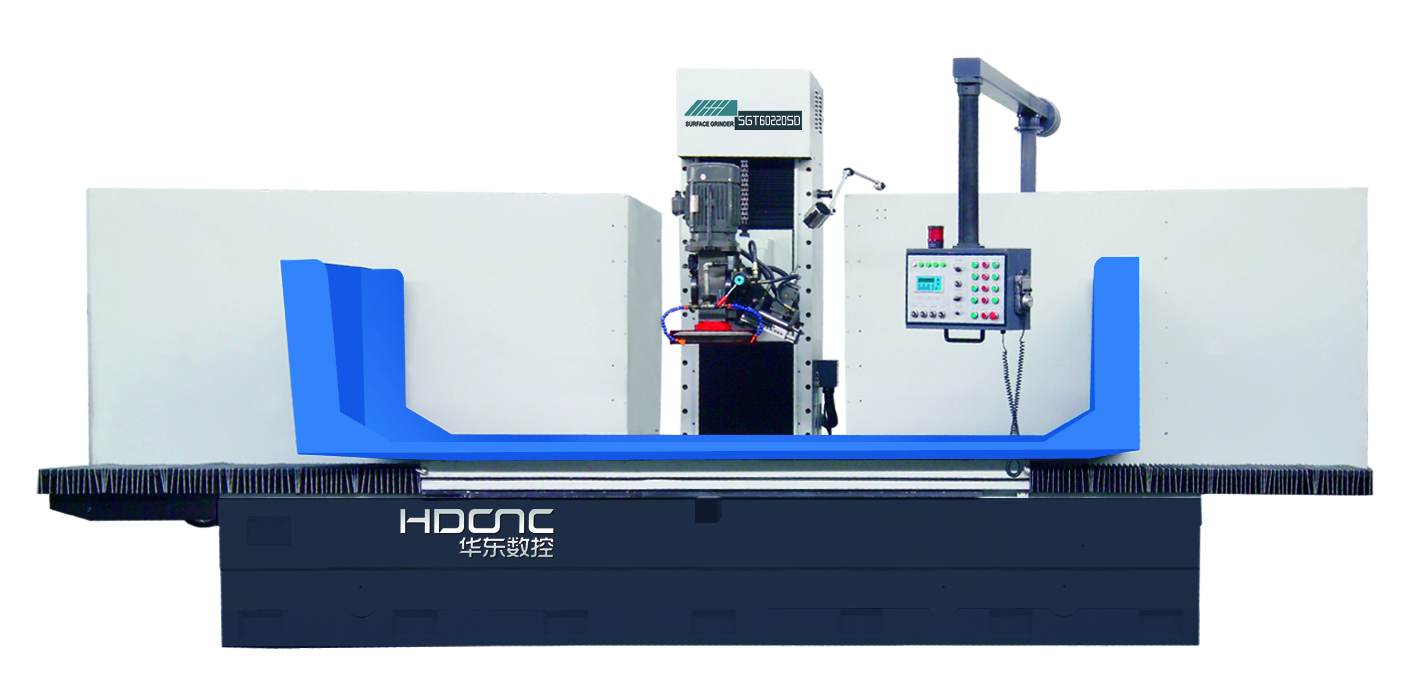

Description | Unit | SGT60160SD | SGT60220SD | |
Table size(L*W) | mm | 1600*610 | 2200*610 | |
Max.grinding size of workpiece(L*W*H) | mm | 1600*610*600 | 2200*610*600 | |
Magnetic chuck size | mm | 600*800*2 | 600*1000*2 | |
Table longitudinal speed | mm | 7-23 | ||
Max. loading of table(including magentic chuck) | kg | 1230 | 1690 | |
Wheelhead Transverse moving | Auto intermittent feed rate | m/t | 1-30 | |
Rapid speed feed | m/min | 0.05-2 | ||
Handwheel feed per gra. | mm/gra. | 0.005/0.05 | ||
Wheel vertical moving | Vertical wheel head rotation | mm/t | ±30°, ±5° | |
Rapid speed feed | m/min. | 0.05-2 | ||
Handwheel feed per gra. | mm/gra. | 0.005/0.05 | ||
Wheel size(OD*Width*ID) | mm | According to process requirements | ||
Total rated power | KW | 17 | ||
Gross weight | kg | 8500 | 9500 | |
Package dimension(L*W*H) | cm | 480*220*172 260*227*255 | 600*220*172 260*227*255 | |
Description | Unit | SGT80160SD | SGT80220SD | SGT80300SD | |
Table size(L*W) | mm | 1600*810 | 2200*810 | 3000*810 | |
Max.grinding size of workpiece(L*W*H) | mm | 1600*810*600 | 2200*810*600 | 3000*810*600 | |
Magnetic chuck size | mm | 800*800*2 | 800*1000*2 | 800*1000*3 | |
Table longitudinal speed | mm | 7-23 | |||
Max. loading of table(including magentic chuck) | kg | 1630 | 2240 | 3060 | |
Wheelhead Transverse moving | Auto intermittent feed rate | m/t | 1-30 | ||
Rapid speed feed | m/min | 0.05-2 | |||
Handwheel feed per gra. | mm/gra. | 0.005/0.05 | |||
Wheel vertical moving | Vertical wheel head rotation | mm/t | ±30°, ±5° | ||
Rapid speed feed | m/min. | 0.05-2 | |||
Handwheel feed per gra. | mm/gra. | 0.005/0.05 | |||
Wheel size(OD*Width*ID) | mm | According to process requirements | |||
Total rated power | KW | 17 | 19 | ||
Gross weight | kg | 8500 | 9500 | 14000 | |
Package dimension(L*W*H) | cm | 480*220*172 280*227*255 | 600*220*172 280*227*255 | 830*220*172 280*227*255 | |

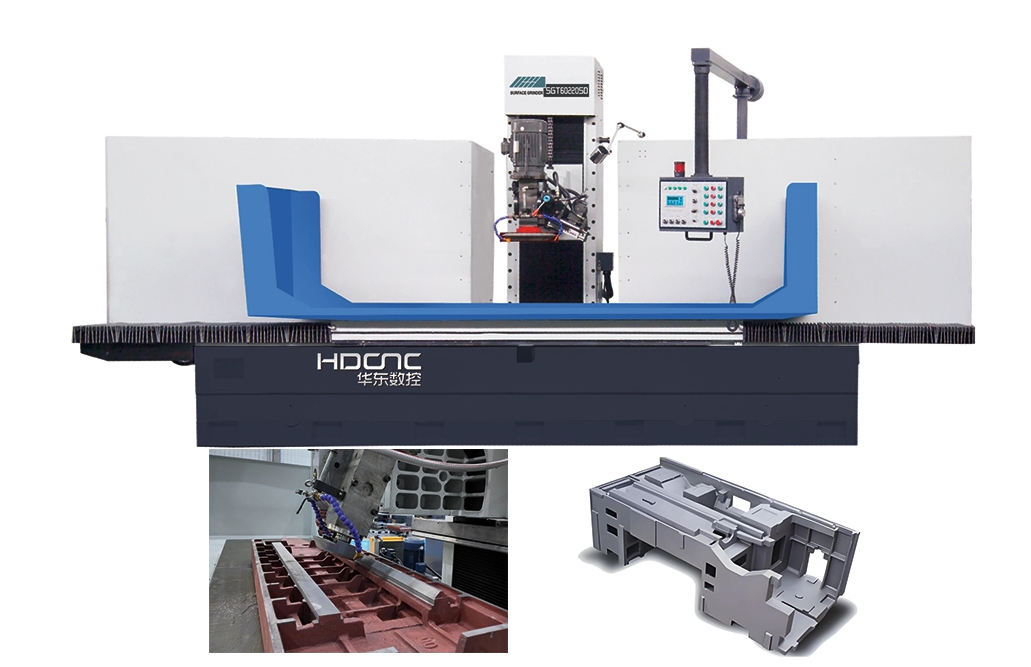

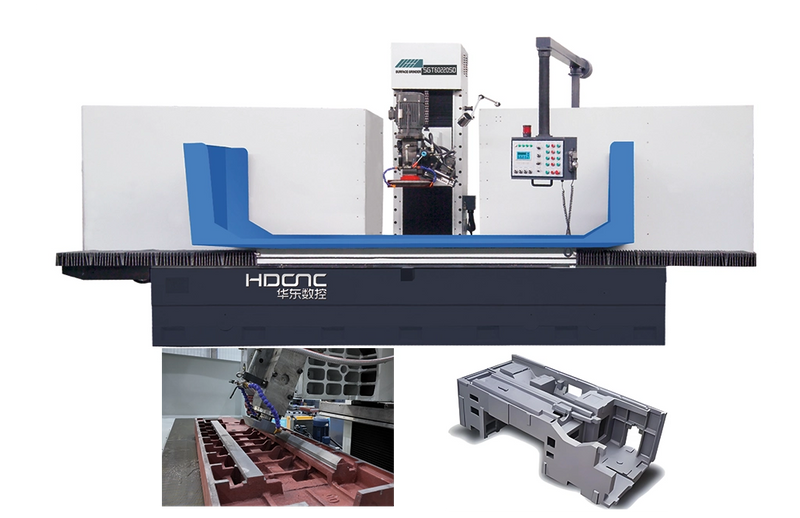

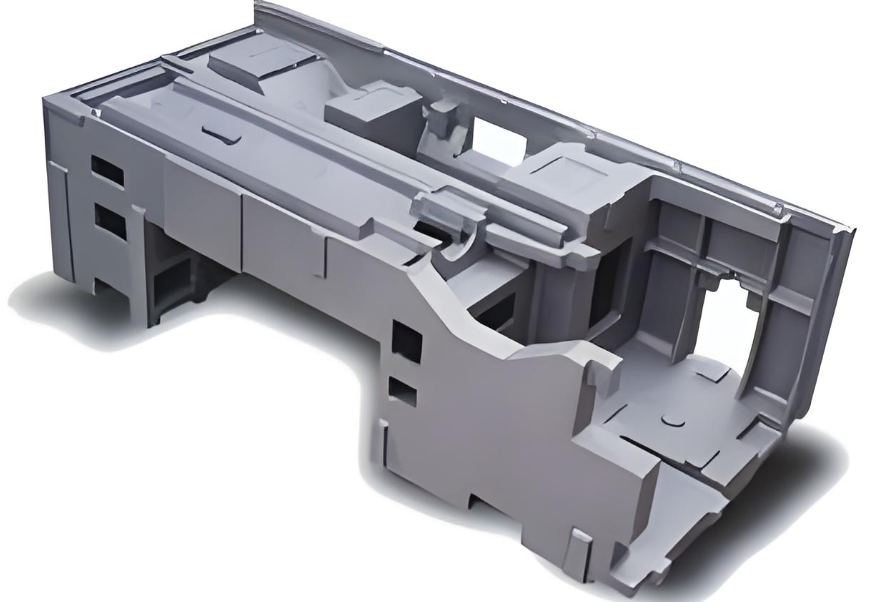

High strength cast iron foundation
Longitudinal moves hydraulically with variable speed
The transverse and Vertical moves by servo motor and PLC controller realizing auto feed
The spindle equipped with imported high-precision rolling bearings is directly connected with the motor through an elastic coupling.
Table guide adopt flat- V guide and affixed with TEflon wear belt

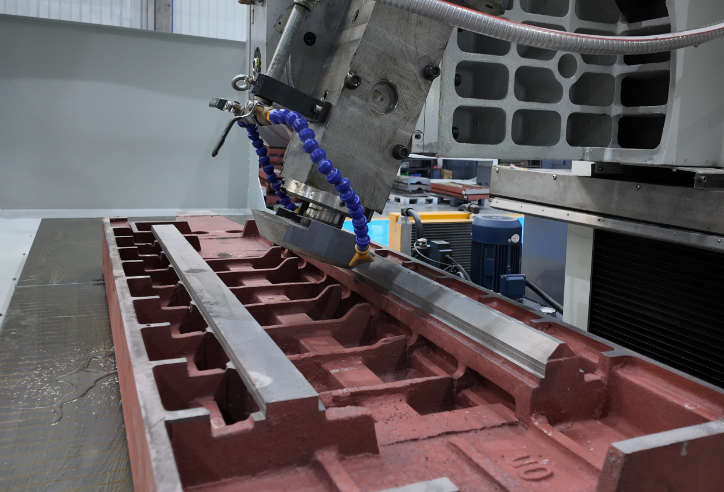

The grinding head is equipped with an Angle dresser to dress the upper plane of the Angle grinding wheel.
