MYGK7370
HDCNC
Ⅰ.Instroduction

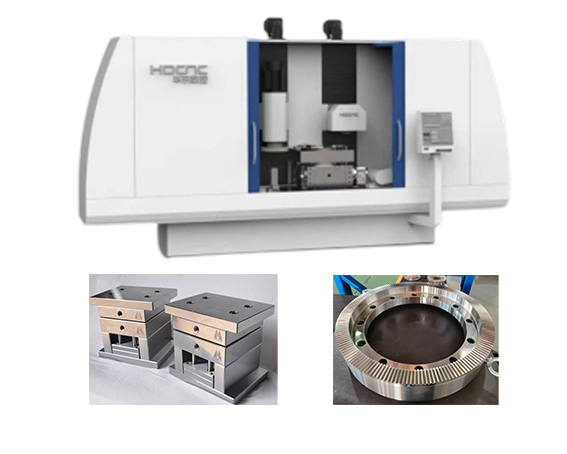

1.This product is a column-moving CNC multi-process end-face spline grinding machine, featuring a T-configuration with dual grinding spindles and dual columns.
2.It delivers high static/dynamic/thermal rigidity and superior dynamic performance. It achieves high-accuracy grinding of end-face spline disks, internal/external cylindrical surfaces, and faces in a single setup.
3.Fully CNC-controlled with user-friendly operation and fully enclosed safety guarding, it is primarily designed for mold cores, mold bases, and precision tooling industries.
Ⅱ.Main Technical Specifications of the Machine Tool
| Item | Unit | MYGK7370 | |
Table Size (L*W) | mm | 800×1600 | |
Grinding Range on Worktable (L*W) | mm | 700×700 | |
CNC rotary table diameter | mm | Φ700 | |
Grinding Range on CNC Rotary Table (D* H) | mm | Φ700*400 | |
Max Distance from Spindle Center to Turntable | mm | 600 | |
Number of T-Slots | pc | 3 | |
T-Slot Width | mm | 18 | |
Worktable Longitudinal Movement Speed | Rapid Traverse Rate | m/min | 0.1-15 |
Electronic Handwheel Feed Rate | mm/div. | 0.001 | |
Horizontal Movement of the Grinding Head Z1, Z2 Axes | Rapid Traverse Rate | m/min | 0.03-3 |
Electronic Handwheel Feed Rate | mm/div. | 0.001 | |
Vertical Movement of the Grinding Head Y1, Y2 Axes | Rapid Traverse Rate | m/min | 0.03-3 |
Electronic Handwheel Feed Rate | mm/div. | 0.001 | |
Horizontal Grinding Head | Spindle Motor | kW | 11/15 |
Rotational Speed | rpm | 0-1500 | |
Dimensions (OD*W*ID) | mm | φ400×20-50×φ203 | |
Vertical Grinding Head | Spindle Motor | kW | 7.5 |
Rotational Speed | rpm | 500-3500 | |
Dimensions (OD* W * ID) | mm | Φ350×40×φ127 | |
Lubrication Motor | kW | 0.06 | |
Coolant Pump Motor | kW | 0.5 | |
Maximum Load Capacity of the Worktable | kg | 1230 | |
Machine Height | mm | 2900 | |
Floor Area (L * W) | mm | 4900×3000 | |
Gross Weight | kg | about10000 | |

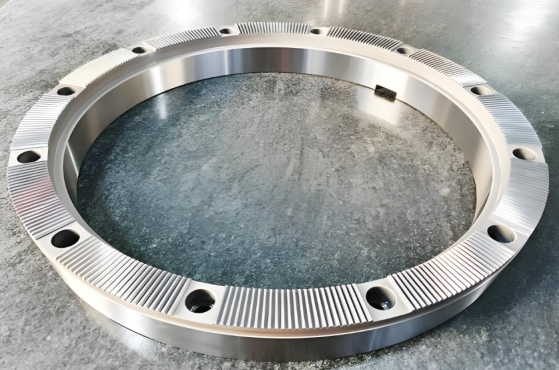

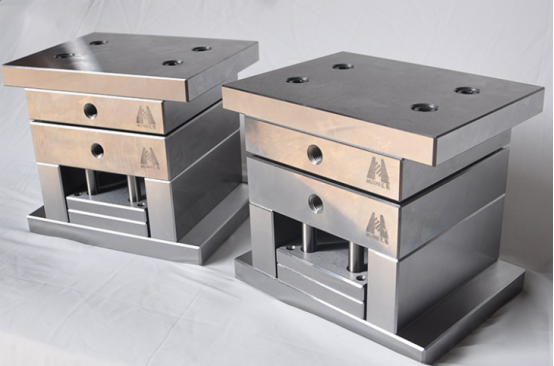

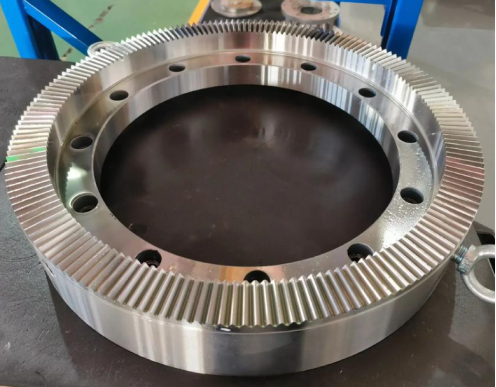

Ⅲ.Machine Application
