| Quantity: | |
|---|---|
Auto parts
Machine industry
Military areospace
Mould
| Cooltant system | hydraulic station | lubrication system | working light | leveling wedges |
| foundation screw | wheel flange | wheel balance arbor | tool and tool box | standard wheel |
Diamond pen | Wheel balance stand | Magnetic chuck | paper filter | DRO |
Description | Unit | MKW5225A | MKW5230A | MKW5240A |
Table width | mm | 2000 | 2500 | 3000 |
Table length | m | 6/8/10/12/14/15/16 | 8/10/12/13/14/15/16 | 8/10/12/13/14/15/16 |
Max. grinding height | mm | 2000/2500/3000 | ||
Column distance | mm | 2500 | 3000 | 4000 |
Horizontal wheel head motor | kw | 30 | 30 | 30 |
Horizontal wheel size | mm | φ600*150*305 | ||
Horizontal spindle speed | mm | 1050 | ||
Vertical head motor | mm | 15 | ||
Vertical travel of Horizontal head | mm | 250 | ||
Vertical travel of vertical head | mm | 800 | ||
Vertical wheel size | mm | φ600*100*250 | ||
Vertical spindle speed | mm | 800-2500 | ||
Vertical head rotation | ° | ±90 | ||

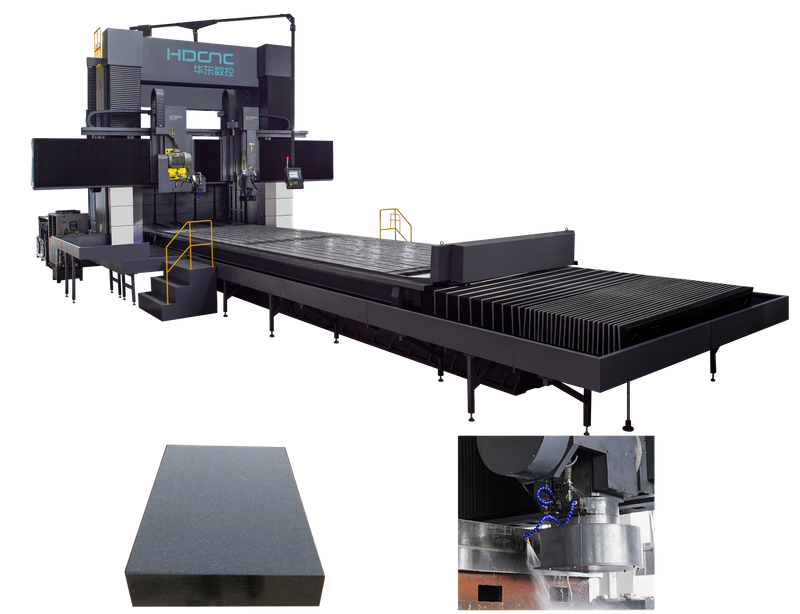

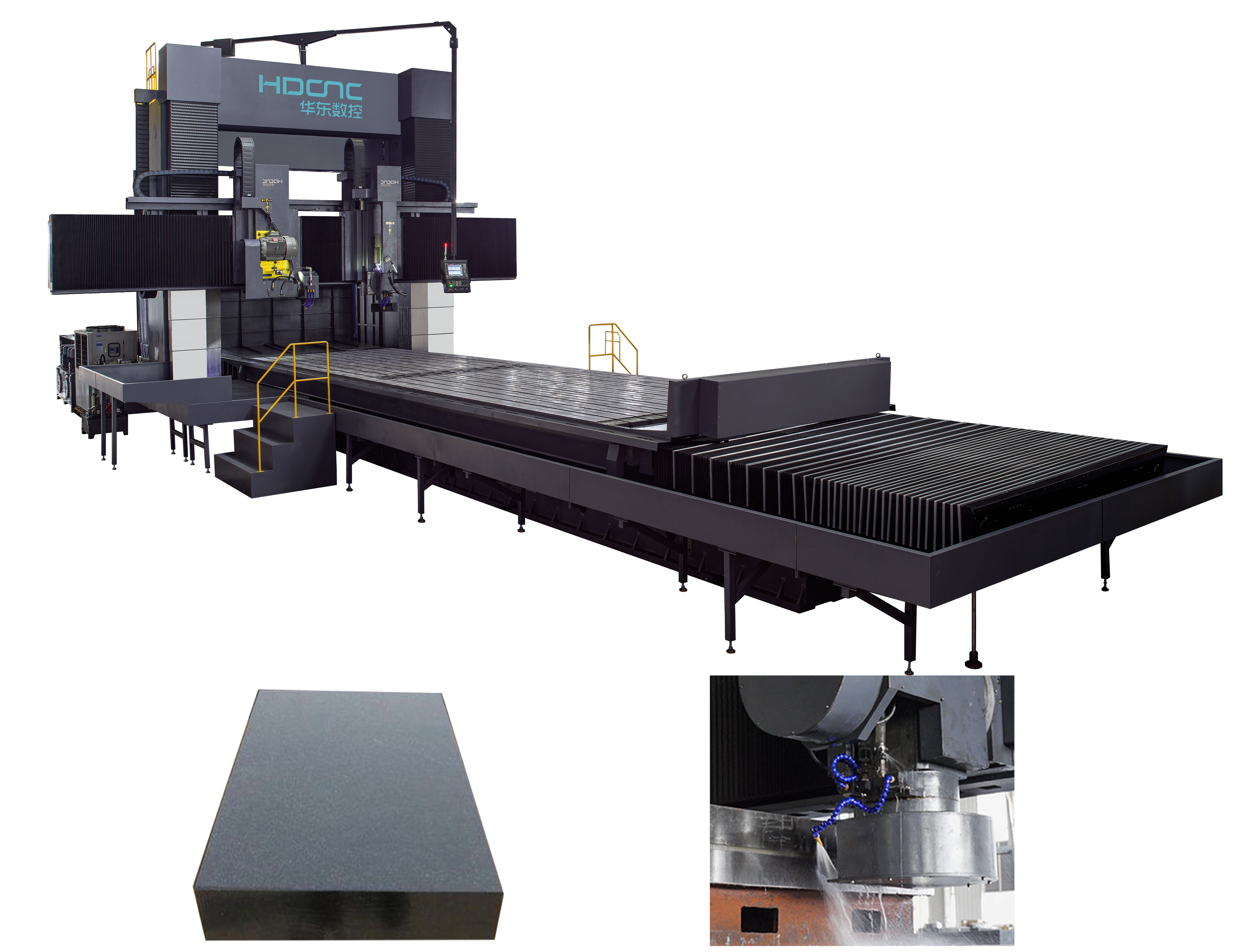

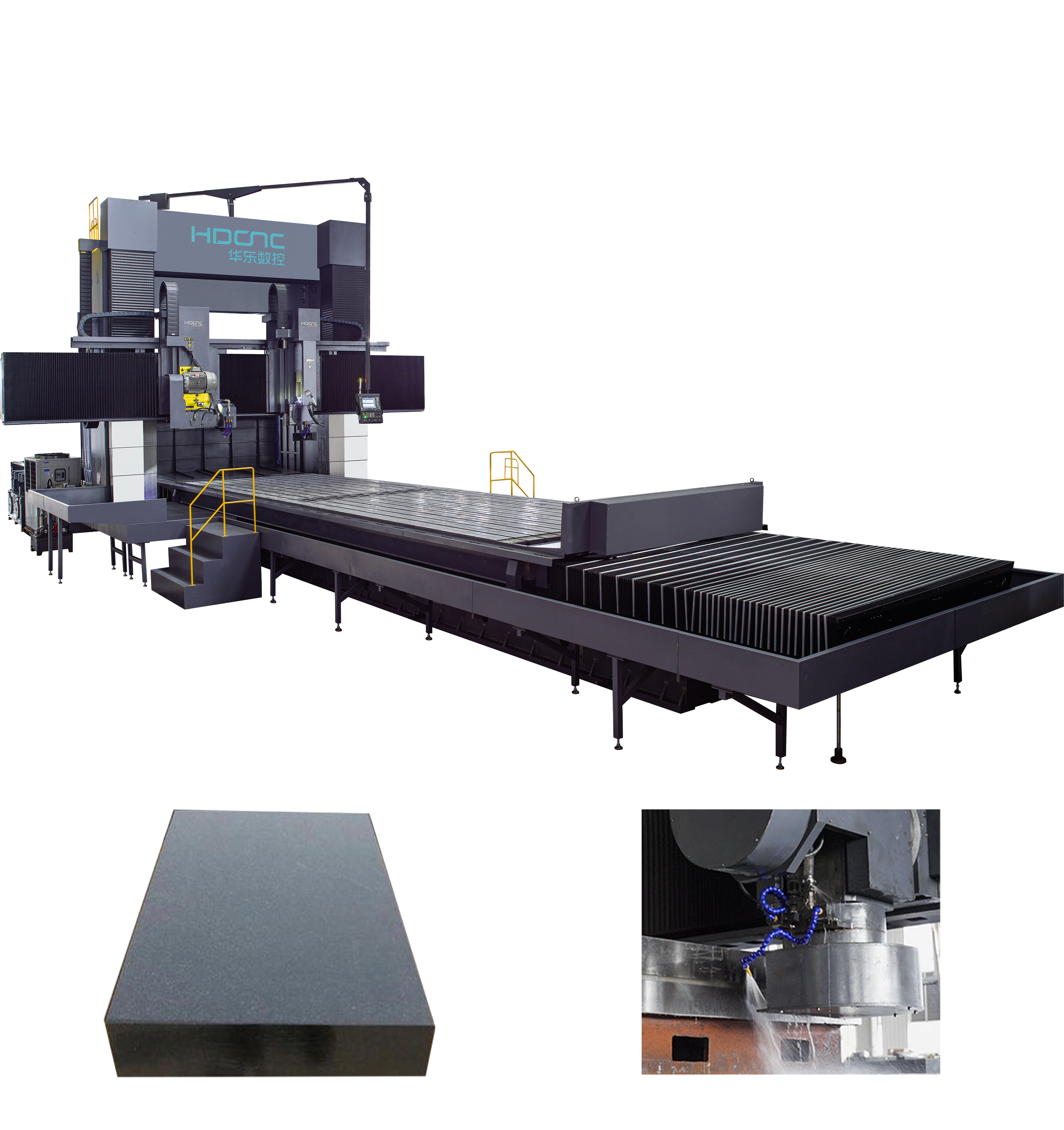

The machine adopts gantry type layout, consisting of double columns, beams and bed body .
The beam adopts the structure of ladder, partially attached steel guide rail, roller block , the whole rigidity is strong, the mechanical property is good.

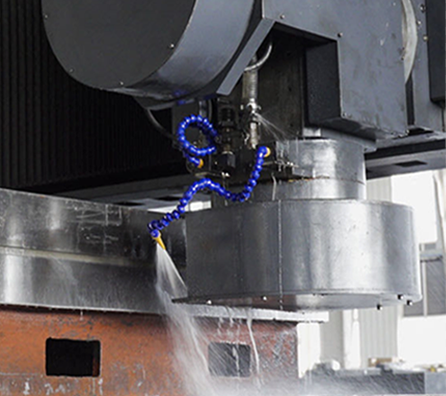

The spindle of grinding head adopts dynamic and static shaft tile structure, which has the advantages of long life, high movement precision and good anti-vibration pertormance.
The working table is driven by oil cylinder, stepless speed regulation, stable movement and low noise;
The main motor of hydraulic station adopts servo motor, and the flow varies with the speed of motor, saving energy and high efficiency.
Vertical grinding head rotation with end gear disk positioning, one point.Large range of processing, to meet the needs of precision machining of large and extra-large workpiece.
Dedicated human-computer interaction intertace, simple and efficient operation.
