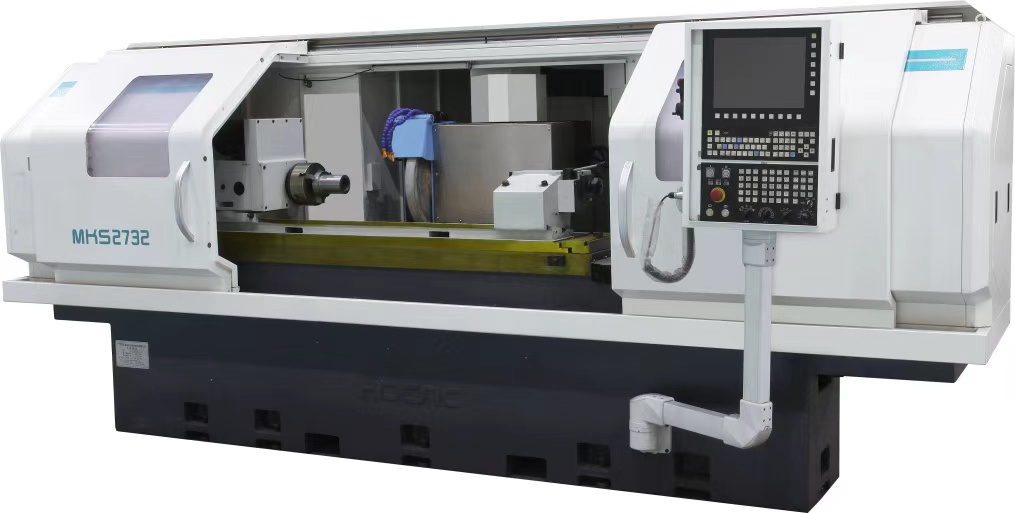

MKS27Series CNC Precision Composite Grinding Machine
HDCNC
I Purpose and Structural Features of the Machine Tool
1.The machine tool adopts a compound box structure, with high-strength and low stress nurturing castings, small thermal deformation, high accuracy, and good stability.
2.The Z-axis guide rail adopts static pressure guide rail technology, which has good rigidity and does not crawl at low speeds; The X-axis adopts imported pre compressed linear guide rail technology, which has a large load-bearing capacity, high accuracy, and sensitive response.
3.The outer circular grinding wheel spindle is equipped with an imported well-know brand grinding electric spindle,which can be equipped with two outer circular grinding wheels at the same time,with high rigidity and high torque;The internal grinding wheel electric spindle is equipped with a well- known domestic brand.
4.The headstock adopts a high-precision dual-purpose headstock structure,and the tailstock adopts a pre pressed bearing tail seat,which has good overall rigidity and high accuracy,and is suitable for precision grinding processes
5.The tool turret can be equipped with a DDR direct drive turntable and a T4 workstation turntable as standard,which meets both rigidity and accuracy requirements.
6.Equipped with a domestically produced Huazhong CNC system as standard,stable performance,dedicated grinding interface,convenient operation,and high cost-effectiveness. It can be optionally equipped with any well-known imported grinding machine system on the market.
II Main Technical Parameters of the Machine Tool
Item | MKS2720×500 | MKS2732×1000 |
Overall performance | ||
Center height | 180mm | 180mm |
Grinding diameter range of cylindrical specimens | Ø8～Ø200mm | Ø8～Ø320mm |
Maximum grinding length of outer circular specimen | 500 mm | 1000 mm |
Grinding hole range of inner circular specimens | Ø10～Ø80mm | Ø10～Ø80mm |
Depth of grinding hole for inner circular specimens | 125 mm | 125 mm |
Minimum feed rate of grinding wheel stand | 0.0005mm | 0.0005mm |
Minimum feed rate of worktable | 0.001mm | 0.001mm |
Z-axis normal feed rate | 10m/min | 10m/min |
X-axis normal feed rate | 8m/min | 8m/min |
Precision headstock | High precision dual-purpose headstock | High precision dual-purpose headstock |
Precision tailstock | Position of preloaded bearings | Position of preloaded bearings |
Cylindrical grinding head (standard configuration) | ||
Brand | Imported well-known brand grinding electric spindle | Imported well-known brand grinding electric spindle |
Grinding wheel specifications (outer diameter max×width ×inner diameter) | 500×63×203(mm) | 500×63×203(mm) |
Cooling method | Circulating water cooling | Circulating water cooling |
Sealing method | Front gas seal | Front gas seal |
Linear speed | 50M/s | 50M/s |
Internal grinding head (standard configuration) | ||
Brand | Domestic well-known brands | Domestic well-known brands |
Cooling method | Circulating water cooling | Circulating water cooling |
Sealing method | Front gas seal | Front gas seal |
Spindle speed | 30000 rpm(standard) | 30000 rpm(standard) |
Grinding wheel specifications (outer diameter max×width ×inner diameter) | 50×25×10(mm) | 50×25×10(mm) |
Tool turret(B-axis) | ||
Workstation | T4(standard) | T4(standard) |
Turret drive | Mechanical turntable/DDR direct drive turntable | Mechanical turntable/DDR direct drive turntable |
Rotation angle(°) | +30～-280 | +30~-280 |
Turntable positioning accuracy(") | ±5/±2.5 | ±5/±2.5 |
control methods | Closed loop control | Closed loop control |
