| Quantity: | |
|---|---|
Glass Industry
Hydraulic industry
Reducer industry
Sapphire industry
| balancing arbor | machine leveling wedge | External grinding wheel flange |
| Internal Grinding shaft | Grinding wheel disassembly tool | Wheel balance shaft |
| grinding wheel | Internal Grinding | 3-Jaw chuck |
| Magnetic separator and paper filter with coolant tank | ||
Optional Accessories
wheel balancing stand | magnetic separator | magnetic separator and paper filter |
diamond pen | Diameter gauge hydraulic station | end face gauge |
closed steady rest | Outer diameter gauge | AE elimination range anti-collision system |

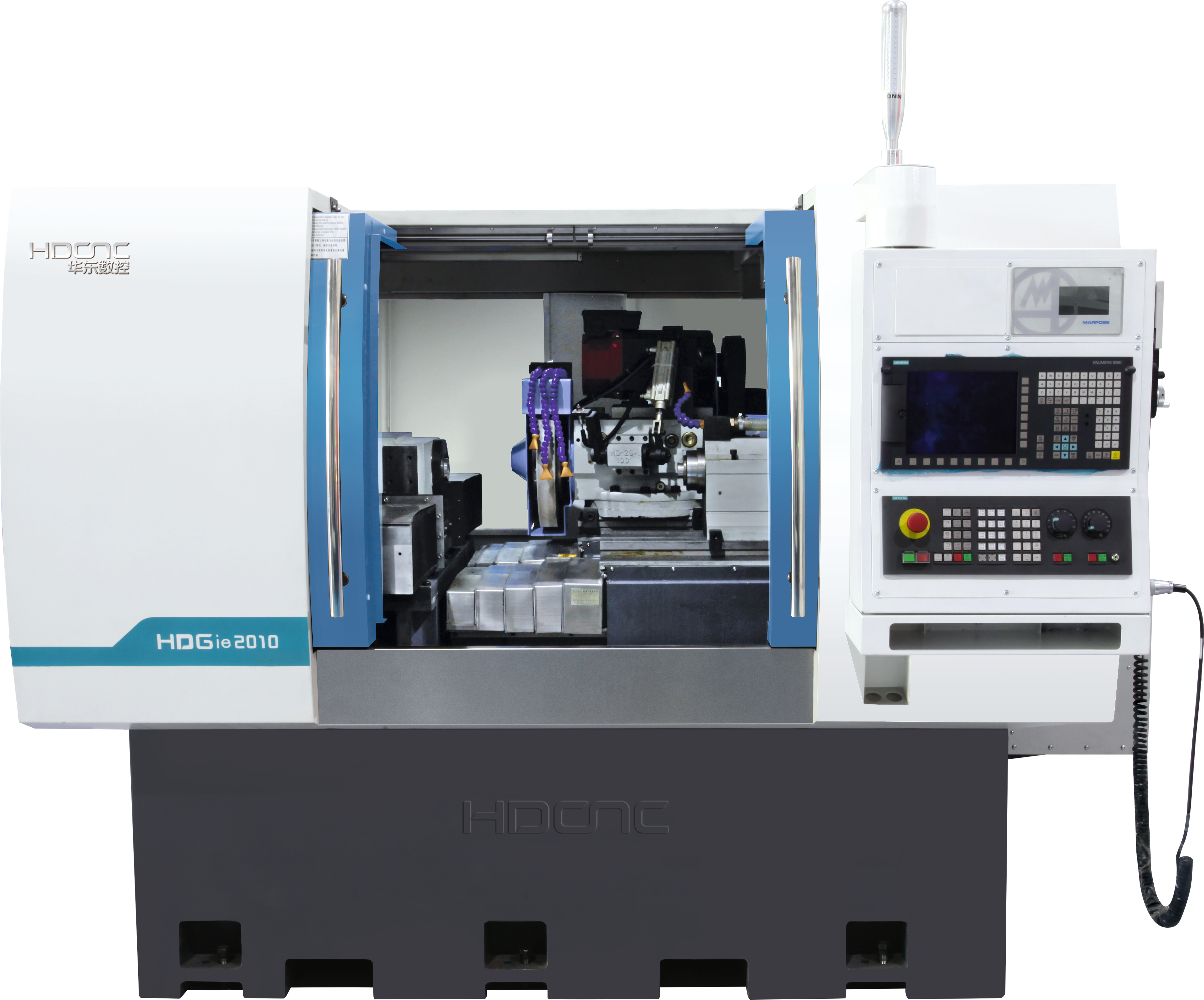

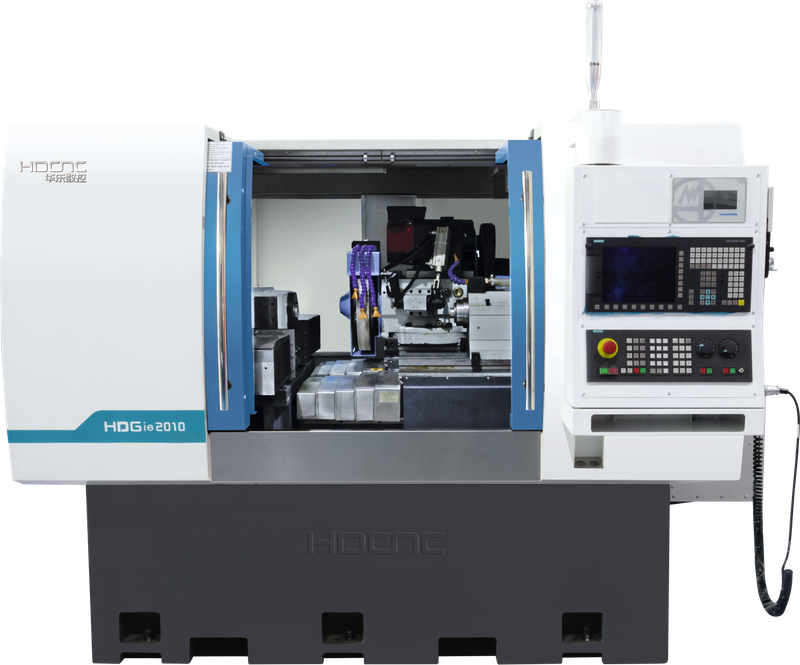

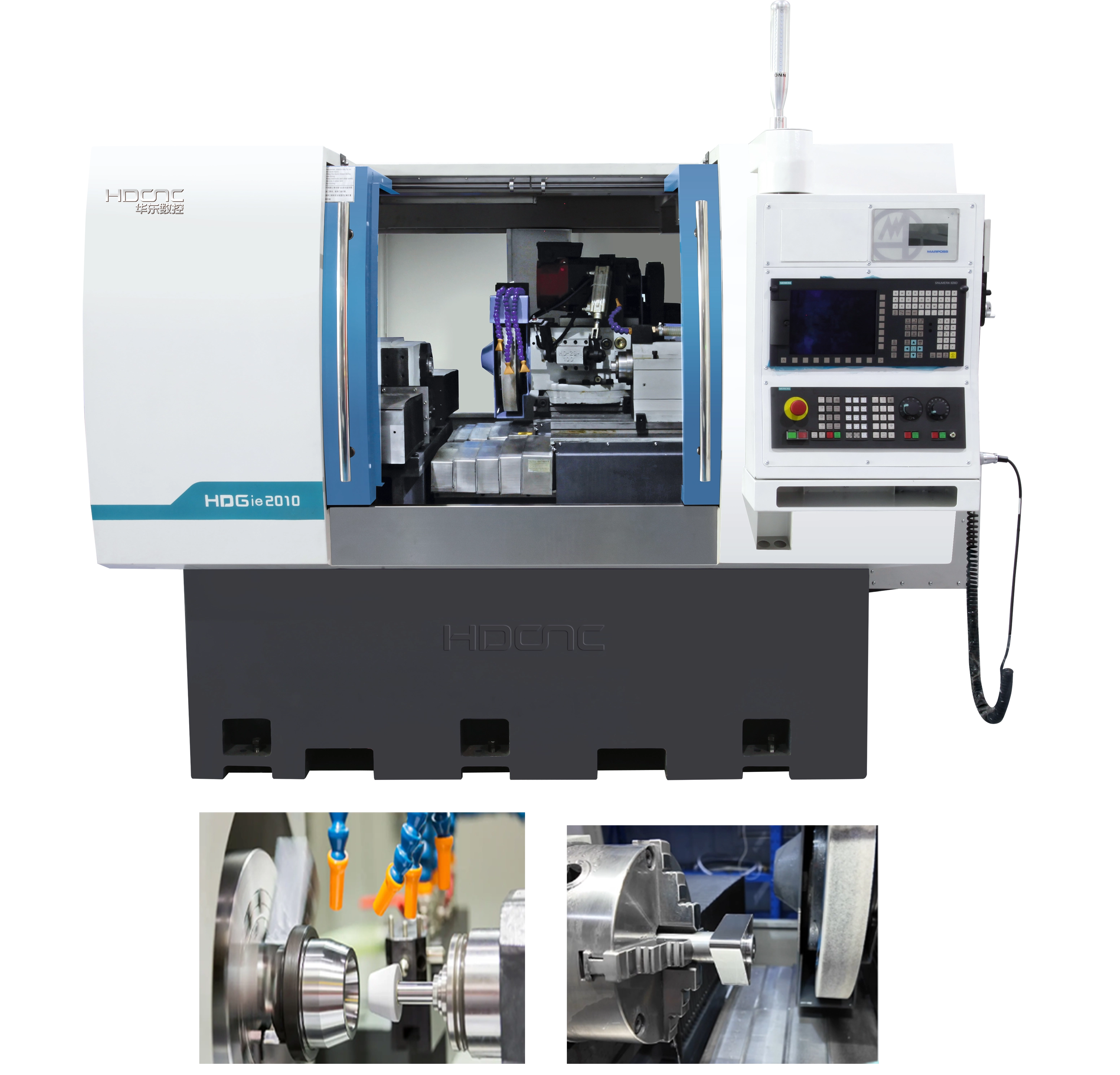

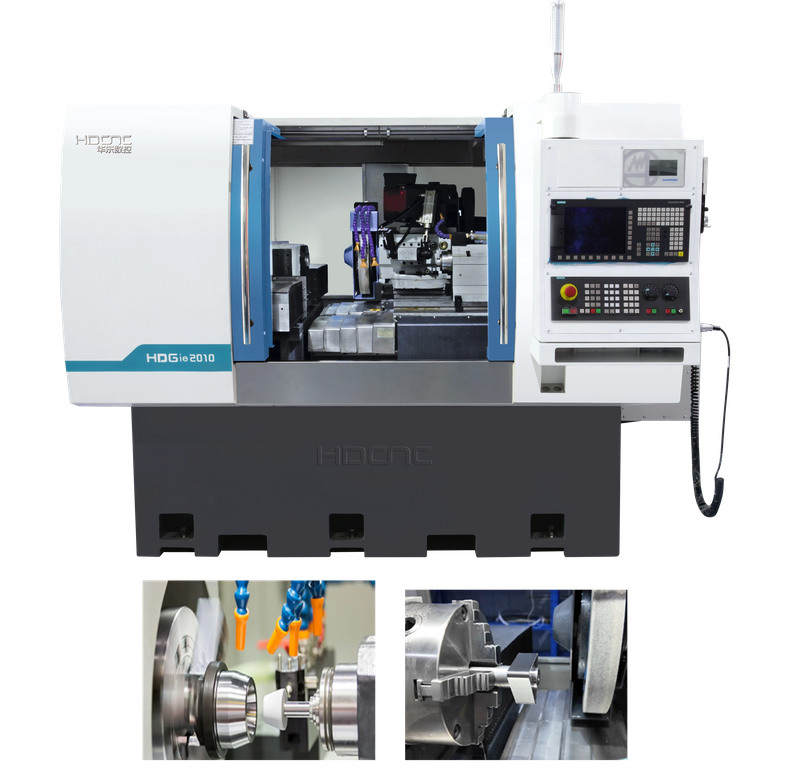

Item | HDGie2010 |
Center Height | 135mm |
Max. External Dia. | 200mm |
Min. External Dia. | 8mm |
Max. External Length | 200mm |
Min. Internal Dia. | 3mm |
Max. Internal Dia. | 150mm |
Max. Internal Depth | 150mm |
X1 Min. Feed | 0.0001mm |
Z1、Z2 Min. Feed | 0.0005mm |
W axis Feed | ≤200mm |
Minimum resolution of servo motor for wheelhead | 0.0001mm |
Minimum resolution of servo motor for Worktable | 0.0001mm |
wheel Size | 400×50×127（External Wheel） 50×50×10（Internal Wheel） |
Workpiece Speed | 0~1000rpm |
Wheel Circular Linear Speed | 35m/s（External） 30000rpm（Internal） |
Max. Loading Weight | 50kg |
Wheel Spindle Power | 5.5KW（External）/14KW（Internal） |

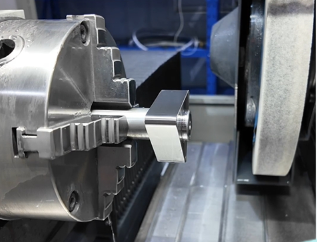

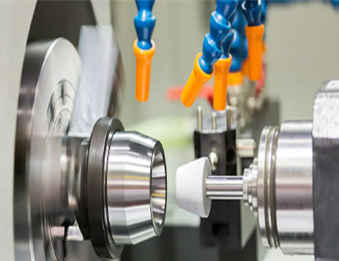

This machine can make one time clamping to do complete grinding of workpiece outer circle, inner circle, end face, cone, non-circle, surface and other positions, completely changed the traditional processing mode of multi-machines sequential processing. It has the characteristics of high machining accuracy, high machining efficiency and high machining flexibility.
Glass Industry
Hydraulic industry
Reducer industry
Sapphire industry
| balancing arbor | machine leveling wedge | External grinding wheel flange |
| Internal Grinding shaft | Grinding wheel disassembly tool | Wheel balance shaft |
| grinding wheel | Internal Grinding | 3-Jaw chuck |
| Magnetic separator and paper filter with coolant tank | ||
Optional Accessories
wheel balancing stand | magnetic separator | magnetic separator and paper filter |
diamond pen | Diameter gauge hydraulic station | end face gauge |
closed steady rest | Outer diameter gauge | AE elimination range anti-collision system |
Item | HDGie2010 |
Center Height | 135mm |
Max. External Dia. | 200mm |
Min. External Dia. | 8mm |
Max. External Length | 200mm |
Min. Internal Dia. | 3mm |
Max. Internal Dia. | 150mm |
Max. Internal Depth | 150mm |
X1 Min. Feed | 0.0001mm |
Z1、Z2 Min. Feed | 0.0005mm |
W axis Feed | ≤200mm |
Minimum resolution of servo motor for wheelhead | 0.0001mm |
Minimum resolution of servo motor for Worktable | 0.0001mm |
wheel Size | 400×50×127（External Wheel） 50×50×10（Internal Wheel） |
Workpiece Speed | 0~1000rpm |
Wheel Circular Linear Speed | 35m/s（External） 30000rpm（Internal） |
Max. Loading Weight | 50kg |
Wheel Spindle Power | 5.5KW（External）/14KW（Internal） |
This machine can make one time clamping to do complete grinding of workpiece outer circle, inner circle, end face, cone, non-circle, surface and other positions, completely changed the traditional processing mode of multi-machines sequential processing. It has the characteristics of high machining accuracy, high machining efficiency and high machining flexibility.
