I Purpose and Structural Features of the Machine Tool

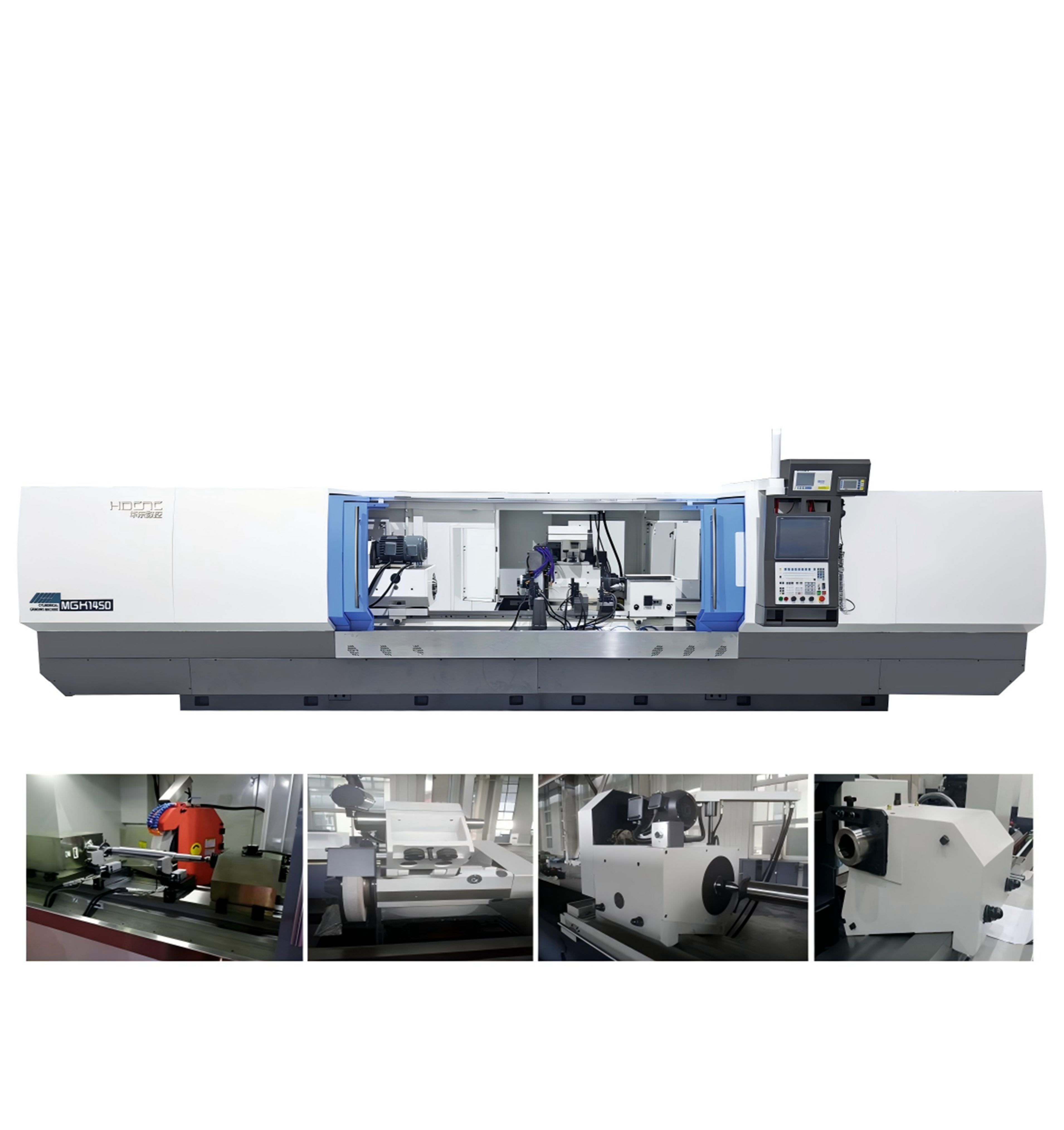

The overall structure of the high-precision CNC universal cylindrical grinder product adopts a worktable movable T-shaped layout, made of high-strength and low stress HT300 pearlite cast iron material, with high stiffness and excellent precision stability. The worktable (Z-axis) guide rail adopts an open unloading static pressure guide rail structure, and is driven by high-precision ball screws, with high precision and no crawling at low speeds. By using a numerical control system, the movement of the X and Z axes can be controlled separately, and the linkage and automatic grinding of the X and Z axes can be achieved. Suitable for special materials such as glass, sapphire, silicon carbide, carbon fiber, etc., the main journal of crankshafts, connecting rod journals, transmission systems, injection molds, stamping molds, engines, shafts, sleeves, medical equipment, optical equipment, reducers, tool holders, oil cylinder industries, etc. This series of machine tools has extremely high cost-effectiveness.
II Main Technical Parameters of the Machine Tool
Item | MGK1450×2000 | MGK1463×3000 | |
Max.length ground(O.D) | 1500、2000 | 2000、3000 | |
Grinding outer diameter range(mm) | maximum | 500 | 630 |
minimum | 25 | 30× | |
Grinding inner hole diameter range(mm) | maximum | 200 | 250 |
minimum | 30 | 30 | |
Center height(mm) | 270 | 370 | |
Three jaw chuck diameter(mm) | 325 | 325 | |
Top taper of headband | mohs#6 | metric system 80# | |
Top taper of tailstock | mohs#6 | metric system 80# | |
Distance between centers(mm) | 1500、2000 | 2000、3000 | |
Maximum grinding inner hole length(mm) | 320×× | 320×× | |
Maximum workpiece weight (type test)(Kg) | 1000 | 3000 | |
Possible rotation of the headstock spindle | Rotatable | Rotatable | |
Maximum rotation angle of the headgear shell | Clockwise 0° | Clockwise 0° | |
Anticlockwise 90° | Anticlockwise 90° | ||
Head rack dial speed (r/min) | 20～224(frequency control) | 10～100(stepless speed regulation) | |
Tail rack top sleeve row(mm) | 70 | 70 | |
Worktable Max Rotation Angle | Clockwise 3°/2° | Clockwise 2°/1° | |
Antilockwise 6/5° | Antilockwise 3° | ||
Rotation Angle of grinding wheelhead | ±8° | ±8° | |
Grinding wheel linear velocity(m/s) | ≤35 | ≤35 | |
Grinding wheel size(mm) | Ø500×75×0305 | 0600×75×Q305 | |
Rated flow rate of cooling pump(L/min) | 50 | 100 | |
Grinding Wheel Head Motor Power | 5kW(VFD Motor) | 7kW(VFD Motor) | |
Headstock motor power | 4kW(frequency conversion motor) | 15kW(frequency conversion motor) | |
Total power | ≈20.5kW | ≈35.6kW | |
Roundness(mm) | 0.0015 | 0.0015 | |
Cylindricity of longitudinal section diameter(mm) | 0.0035 | 0.0035 | |
