Availability: | |
---|---|
Quantity: | |
Glass Industry
Hydraulic industry
Reducer industry
Sapphire industry
Cooltant tank | driving dog | leveling wedges | wheel flange |
wheel extractor tools | standard wheel | balancing arbor | centers |
full closed cover (only for MK1320 series) |
wheel balancing stand | magnetic separator | magnetic separator and paper filter |
diamond pen | full cover | end face gauge |
closed steady rest | Outer diameter gauge |
Description | Unit | Specifications | ||||
MK1320B | MK1332 | MK1332H | MK1420 | |||
General capacity | ||||||
Distance between centers | mm | 500、750、1000 | 1000、1500 | 2000、3000 | 500、750、1000 | |
Center height | mm | 135 | 180 | 180 | 125/135 | |
Dia.Ground(O.D) | mm | 8~200 | 8~320 | 8~320 | 8(5)~200 | |
Dia.Ground(I.D) | mm | / | / | / | 13~80 | |
Max.length ground(ID) | mm | / | / | / | 125 | |
Max.weight of workpiece | Kg | 50 | 150 | 300 | 50 | |
Workhead | ||||||
Center tape(MT) | (MT) | 4 | 5 | 5 | 4 | |
Spindle speed/Stepless | r/min | 50HZ:26-260 | 50HZ:19-190 | 50HZ:10- 100 | 63/125/250/500 50HZ:26-260 | |
Wheelhead | ||||||
Max.dimension of wheel(OD*W*ID) | mm | 400×50x203 | 600×75x305 | 600x75x305 | 400×50x203 | |
Wheel peripheral velocity | m/s | 35 | 35 | 35 | 35 | |
Rotation angle of grinding wheel holder | ° | / | / | / | ±5/8 | |
Internal grinding device | ||||||
Spindle speed | r/min | / | / | / | 3000/10000 | |
Dimension of wheel | mm | / | / | / | max50*32*16 | |
/ | / | / | min12*15*5 | |||
Table | ||||||
Max.swiveling angel of table | Cockwise | ° | 5°(500)、3° (750、1000) | 3° | 3° | 7°(500)8°(750) 3°(1000) |
Anticlockwise | ° | 9° | 7°(1000)、 6°(1500) | 5°(2000)、 3°(3000) | 7°(500)8°(750) 7°(1000) | |
Tailstock | ||||||
Center tape(MT) | (MT) | 4 | 4 | 5 | 4 | |
Quill travel | mm | 30 | 30 | 30 | 25 | |
Electric system | ||||||
CNC System | Domestic system、Siemens808D、Fanuc OITF and other | |||||
Wheelhead motor power | Kw | 4 | 11 | 11 | 4/5.5 | |
Workhead motor power | Kw | 1.1 | 1.5 | 3 | 0.75/1.1 | |
Machining accuracy | ||||||
Roundness | μm | 2 | 2.5 | 3 | 3/5 | |
Cylindricity | μm | 5 | 8 | 8 | 4 | |
Roughness | μm | Ra0.2 | Ra0.2 | Ra0.32 | Ra0.16 | |
Machine | ||||||
Gross weight | t | 3.2(500)3.6(750) 4.6(1000) | 4.6(1000) 5.1(1500) | 6.7(2000) 8.3(3000) | 2.6(500) 4.3(750) 4.6(1000) | |
Packing dimension | cm | 285×190×220 (500) | 425×225×220 (1000) | 620×230×225 (2000) | 225×203×205(500) | |
340×190×220 (750) | 275×203×205(750) | |||||
545×225×220 (1500) | 820×230×225 (3000) | |||||
425x225×220 (1000) | 320×203×205(1000) |
Description | Unit | Specifications | |||||
MKE1432 | MK1620B | MK1632 | MK1350 | MKE1450 | |||
General capacity | |||||||
Distance between centers | mm | 1000、1500 | 500、750 | 1000、1500、 2000、3000 | 1500、2000、 3000、4000 | 1500 | |
Center height | mm | 180 | 135 | 180 | 270 | 270 | |
Dia.Ground(O.D) | mm | 8~320 | 8~200 | 8~320 | 25~500 | 25~500 | |
Dia.Ground(I.D) | mm | 30-100 | / | / | / | 30-200 | |
Max.length ground(ID) | mm | 125 | / | / | / | 320 | |
Max.weight of workpiece | Kg | 150 | 50 | 150 | 1000 | 1000 | |
Workhead | |||||||
Center tape(MT) | (MT) | 4 | 4 | 5 | 6 | 6 | |
Spindle speed/Stepless | r/min | 50HZ:26-260 | 50HZ:26-260 | 50HZ:19-190 | 50HZ:10~100 | 50HZ:10-100 | |
Wheelhead | |||||||
Max.dimension of wheel(OD*W*ID) | mm | 400×50x203 | 500x75x203 | 600x75x305 | 750x75x305 | 500x7Sx205 | |
Wheel peripheral velocity | m/s | 35 | 35 | 35 | 35 | 35 | |
Rotation angle of grinding wheel holder | ° | ±8 | / | / | / | ±8 | |
Internal grinding device | |||||||
Spindle speed | r/min | 10000 | / | / | / | 10000 | |
Dimension of wheel | mm | max50*25*13 | / | / | / | max175*32*32 | |
min17*20*6 | / | / | / | min30*25*10 | |||
Table | |||||||
Max.swiveling angel of table | Cockwise | ° | 3° | 5°(500)、3° (750) | 3°(1000、1500) 2°(2000、3000) | 3°(1500)2°(2000、3000)1°(4000) | 3° |
Anticlockwise | ° | 7°(1000)、6°(1500) | 9° | 7°(1000)6°(1500) 5°(2000)3°(3000) | 6°(1000)5°(1500) 3°(2000)2°(3000) | 6° | |
Tailstock | |||||||
Center tape(MT) | (MT) | 4 | 4 | 4 | 6 | 6 | |
Quill travel | mm | 30 | 30 | 30 | 70 | 70 | |
Electric system | |||||||
CNC System | Domestic system、Siemens808D、Fanuc OITF and other | ||||||
Wheelhead motor power | Kw | 5.5 | 7.5 | 11 | 15 | 5/7.5 | |
Workhead motor power | Kw | 2 | 1.1 | 1.5 | 4 | 1.5 | |
Machining accuracy | |||||||
Roundness | μm | 3 | 2 | 3 | 2.5(1500)3(2000、3000、4000) | 25 | |
Cylindricity | μm | 8 | 5 | 8 | 8(1500、2000、3000)12(4000) | 8 | |
Roughness | μm | Ra0.32 | Ra0.32 | Ra0.32 | Ra0.32 | Ra0.32 | |
Machine | |||||||
Gross weight | t | 3.8(1000) 4(1500) | 4.3(500) 4.6(750) | 4.6(1000)5.1(1500) 5.7(2000)6.9(3000) | 10(1500)11(2000) 13(3000)17(4000) | 9.5 | |
Packing dimension | cm | 326×190×205 (1000) | 340×225×220 (500) | 465×230×220 (1000) 585×230×220 (1500) | 543×225×210 (1500) 583×225×210 (2000) | 543×225×210 | |
426×190×205 (1500) | 390×225×220 (750) | 650×245×220 (2000) 845×245×220 (3000) | 796×225×210 (3000) 996×225×210 (4000) | ||||

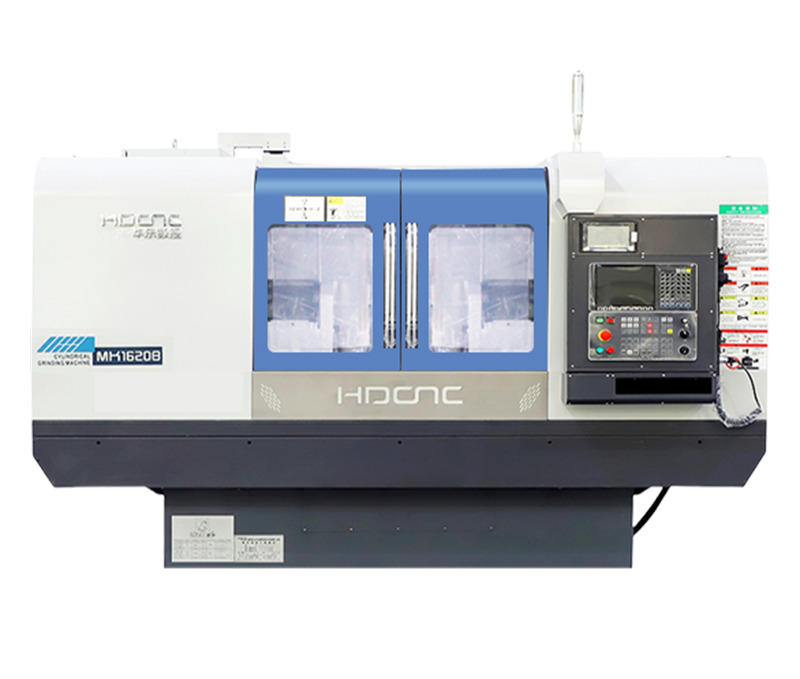

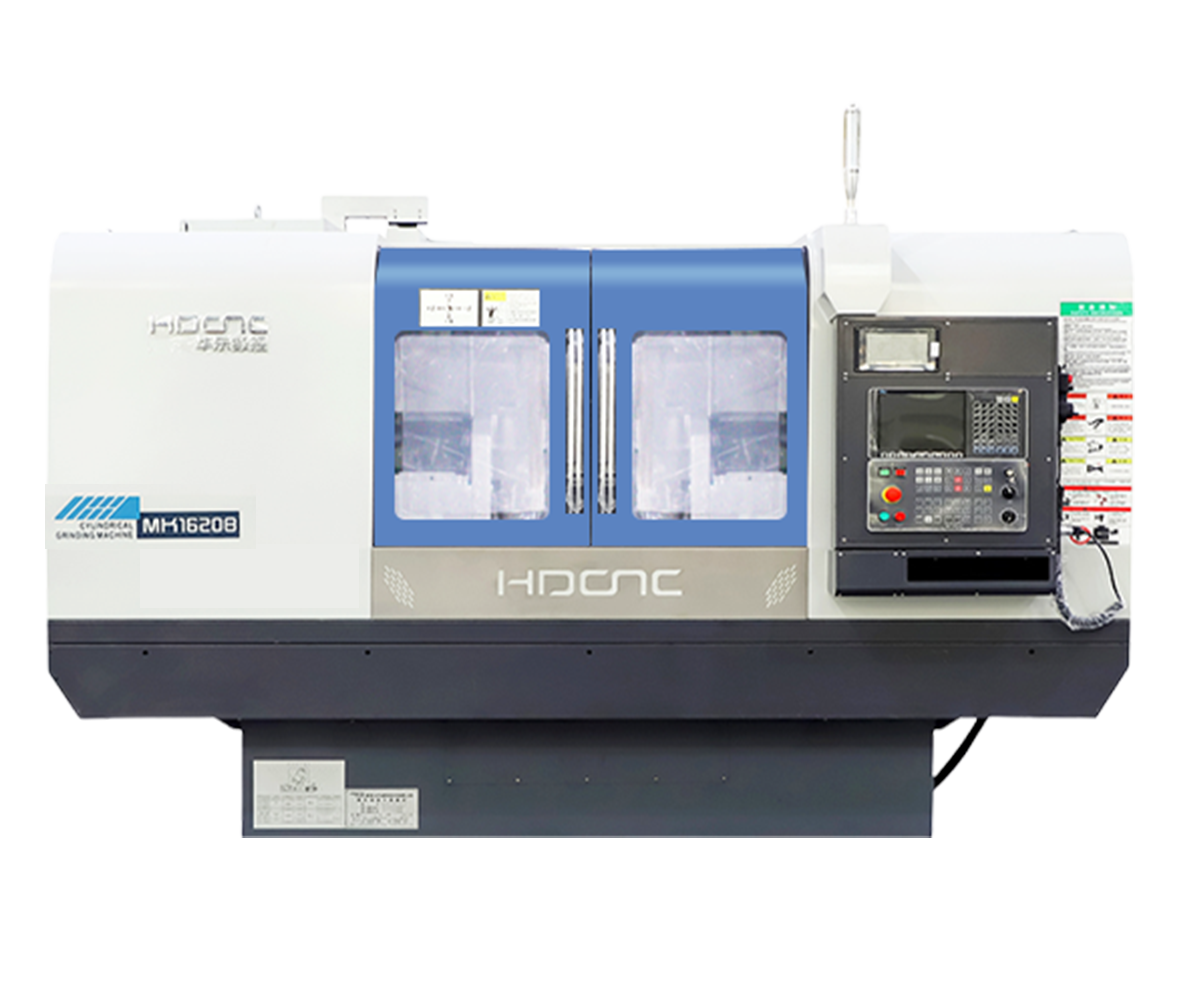

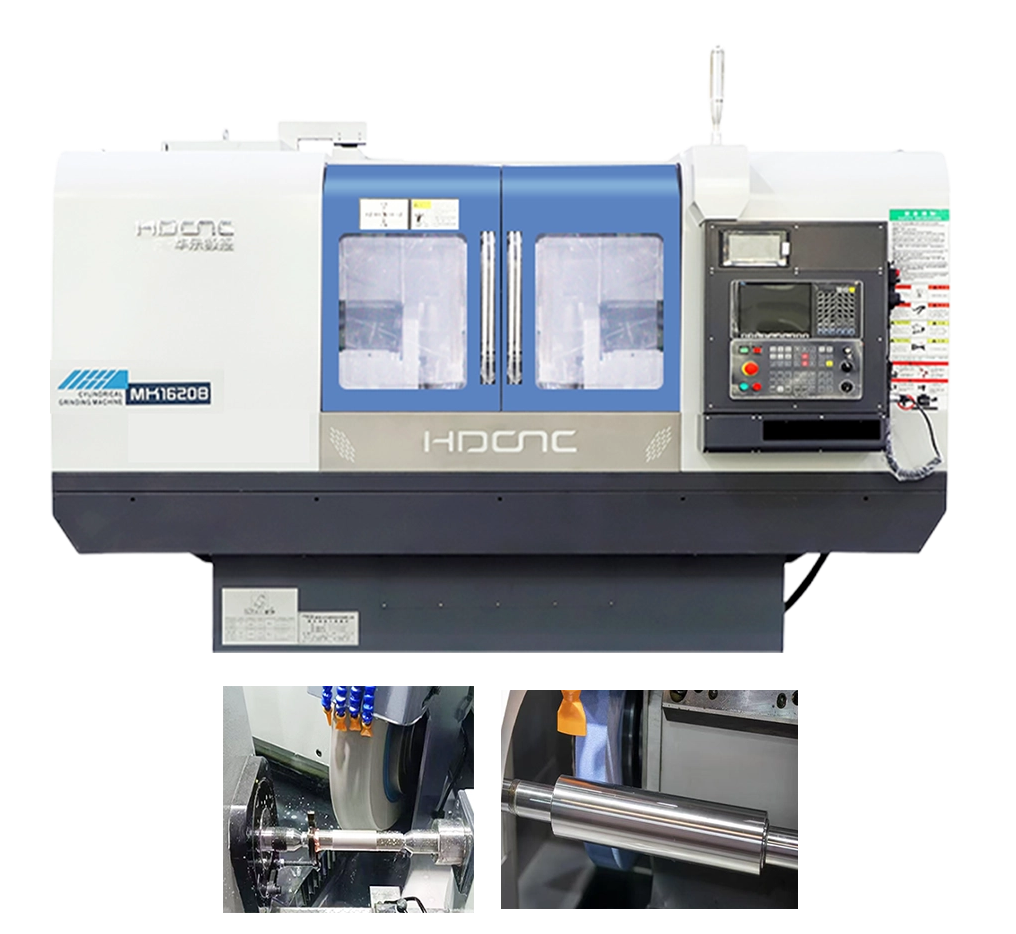

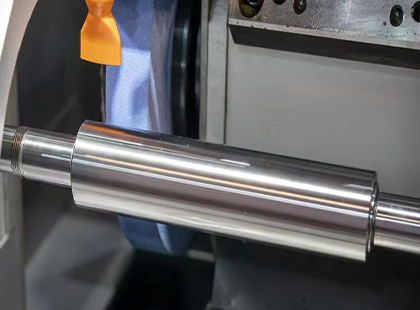

2 axis linkage CNC cylindrical grinder,standard with HNC808D system, Siemens or Fanuc as optional.
High strength and low stress of HT300 pearlitic cast iron material, with high rigidity and precision stability
Machine tool control system with friendly interface and perfect equipment fault alarm and diagnosis function
table travels on one V,one flat guideway
Stepless workhead help choose suitable speed
Hydraulically driven longitudinal traversal
machine table swivels for easy taper grinding
Advanced Hydrostatic Lubrication System
hydraulically controlled tailstock as optional
