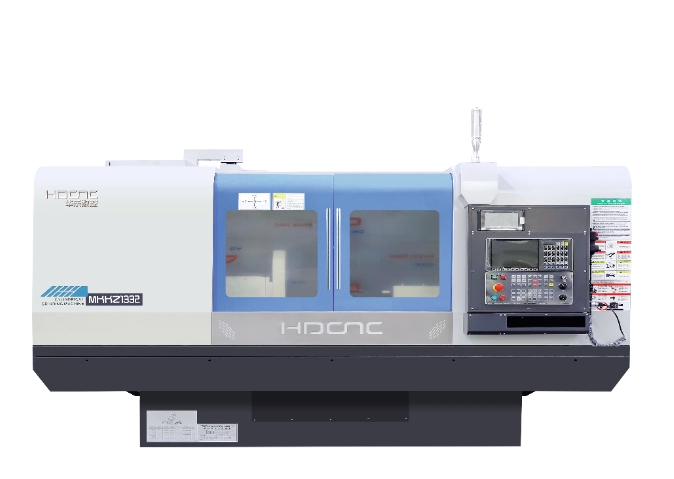

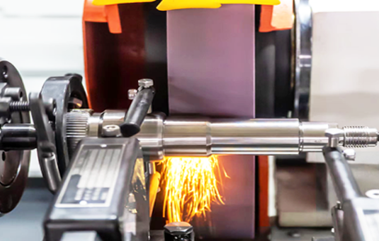

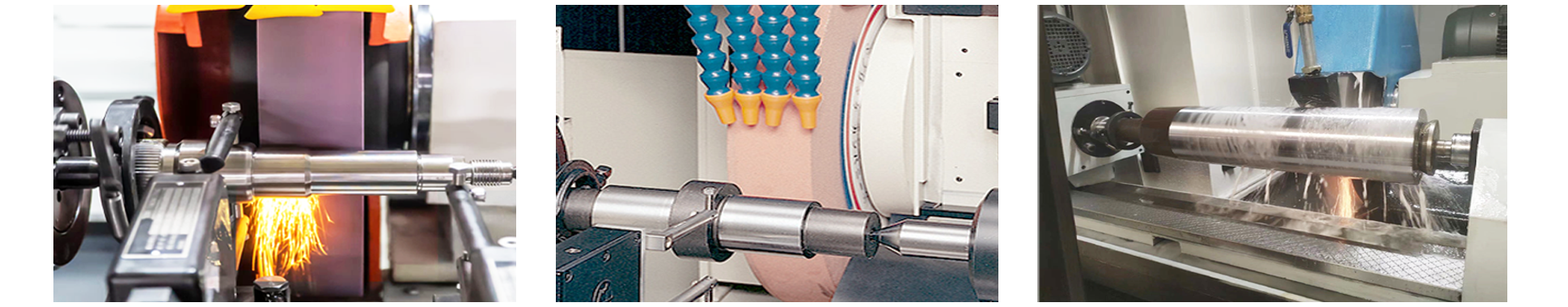

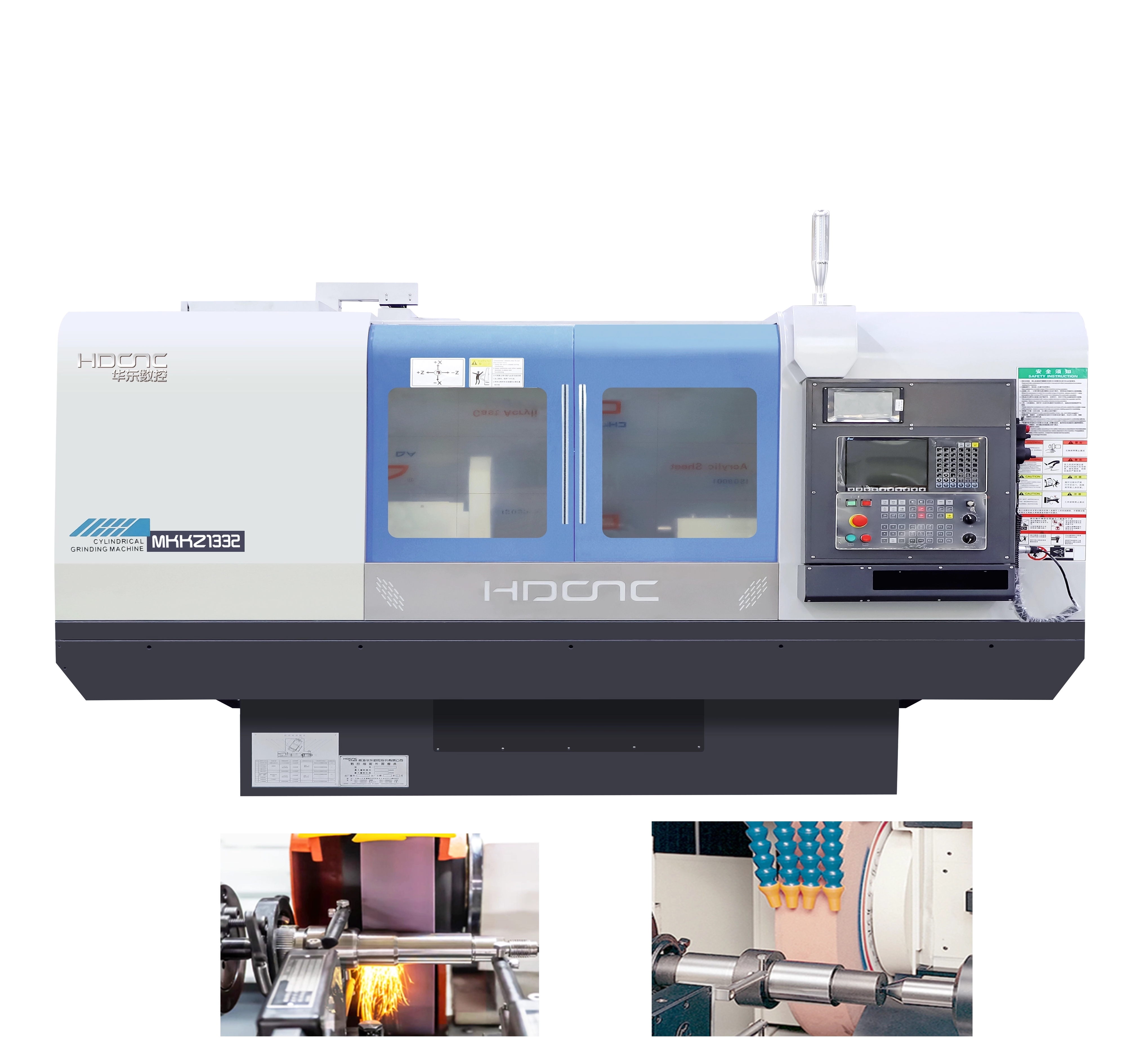

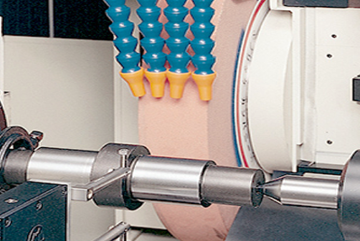

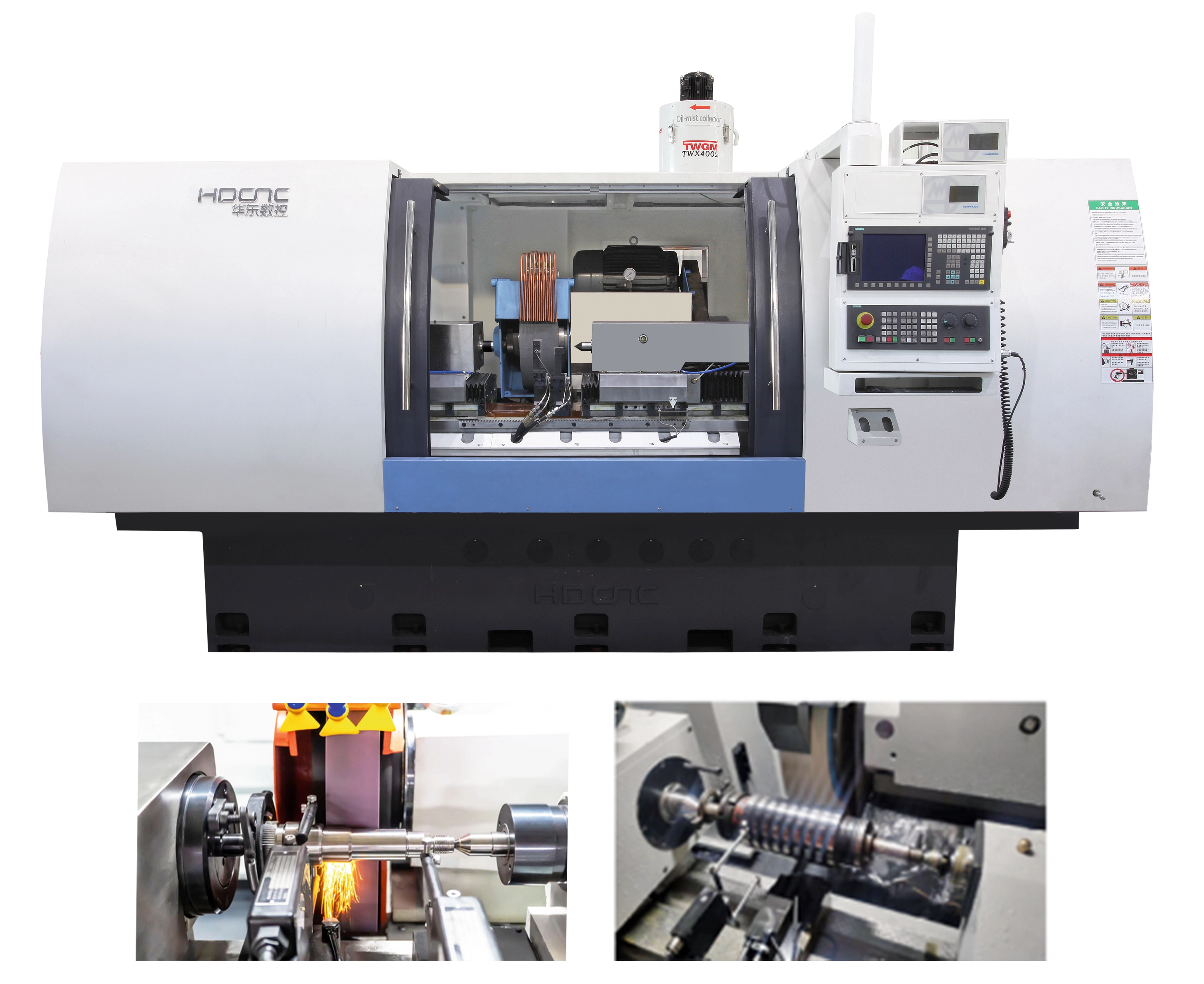

CNC Heavy Duty Cylindrical Grinding Machine

This machine is a three-axis and two-linkage CNC cylindrical grinding machine, which can be selected from Siemens, FANUC, or HNC CNC system. The movement of the table and the grinding wheel stand is completed by the AC servo motor on the Z axis and X axis driving the ball screw respectively. X, Z axis linkage to achieve straight line and arc interpolation, complete cylindrical grinding. Through reasonable programming, the machine can complete the single or combined surface grinding of various small and medium parts, such as cylindrical surface, conical surface.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Machine Application

玻璃行业1

Glass Industry

油缸行业1

Hydraulic industry

减速机行业1

Reducer industry

Sapphire industry

Sapphire industry

Standard Accessories

wheel balance shaft  measuring bridge plate machine leveling wedge  drive dog
grinding wheel  flange standard wheel  centers disassembly tool
Magnetic separator and paper filter with coolant tank

Optional Accessories

wheel balancing stand

magnetic separator

magnetic separator and paper filter

diamond pen

AE empty range anti-collision system end face gauge

closed steady rest

Outer diameter gauge

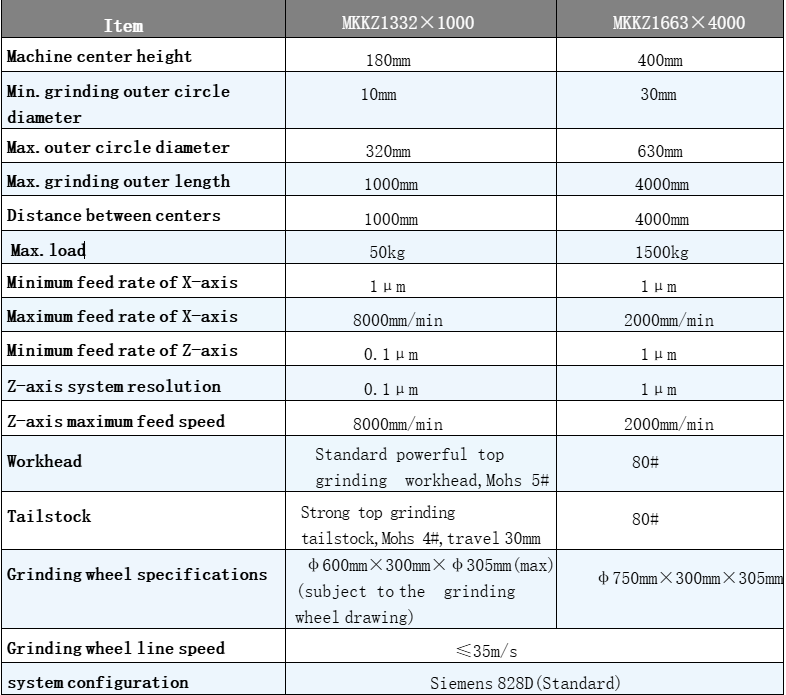

Machine Parameters

Item

MKKZ1332*1000

Center Height

180mm

Min. External Dia.

10 mm

Max. External Dia.

320mm

Max. Length

1000 mm

Distance Between Centers

1000mm

Max. Loading Weight

50kg

X axis Min Feed

1μm

X axis Resolution

0.1μm

X axis Max Feed

8000mm/min

Z axis Min Feed

0.001mm

Z axis Resolution

0.1μm

Z axis Max Feed

8000mm/min

Workhead

Standard With Strong Workhead,MT 5#

Tailstock

Standard With Strong Tailstock,MT 4#,Travel 30mm

Wheel Size

Φ600mm×300mm×Φ305mm(max)(according to wheel diagram)

Wheel Circular Linear Speed

≤35m/s

CNC SYSTEM

Siemens 828D(standard)

Features

  • The grinding wheel spindle adopts self-developed special hydrostatic fluid bearing, which has high rigidity and rotary accuracy. The grinding wheel linear speed is less than 35M/S, and the grinding wheel specification is φ600mm ×300mm× φ305mm (Max), especially suitable for heavy grinding with wide grinding wheel.

  • the table and cross feed drive screw adopts grinding C3 grade ball screw, and quantitative pre-drawing, good transmission rigidity, small reverse air stroke.

  • X axis adopts imported Schneberger precision line rail, and apply preload, low friction coefficient, good dynamic response.

  • the use of imported or domestic numerical control system, enterprise self-developed man-machine grinding interface, reliable work, convenient operation, programming.

  • equipped with end face positioning meter, axial positioning accuracy 0.01mm.

  • Equipped with radial automatic measuring instrument to realize full closed-loop automatic control, the precision of outer circle is stable below 0.003mm.
