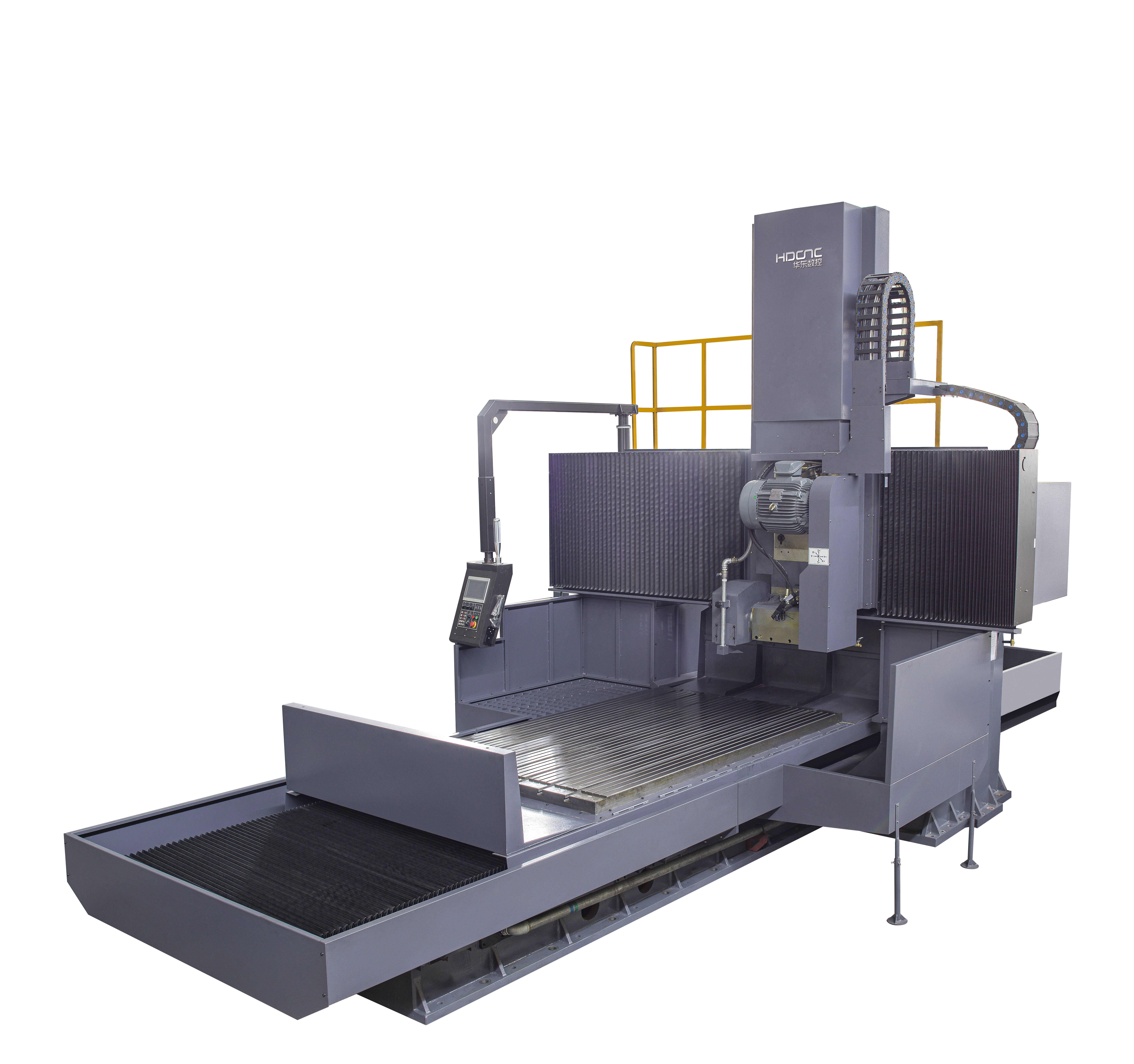

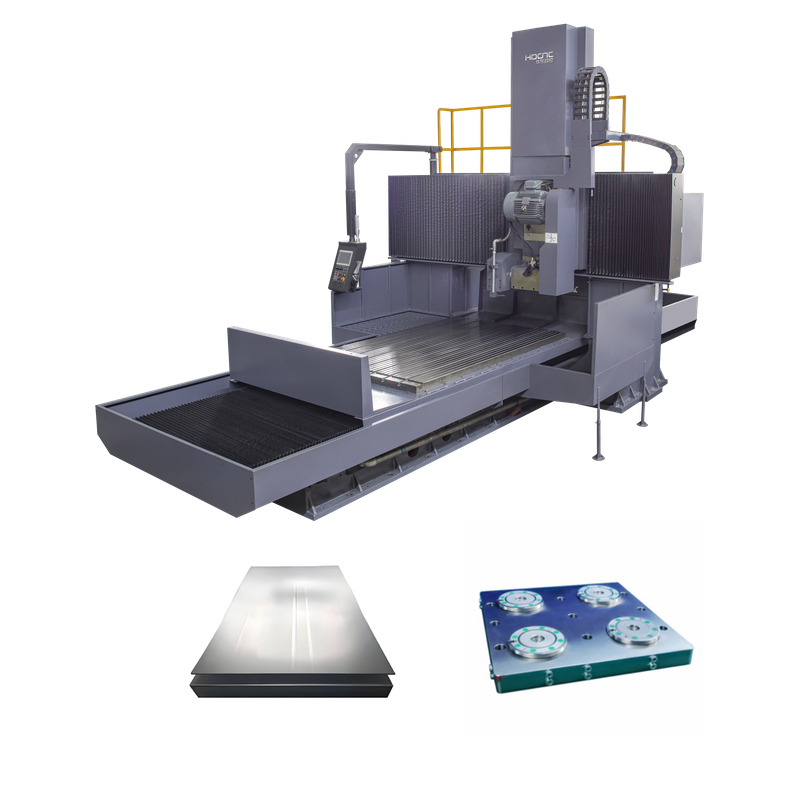

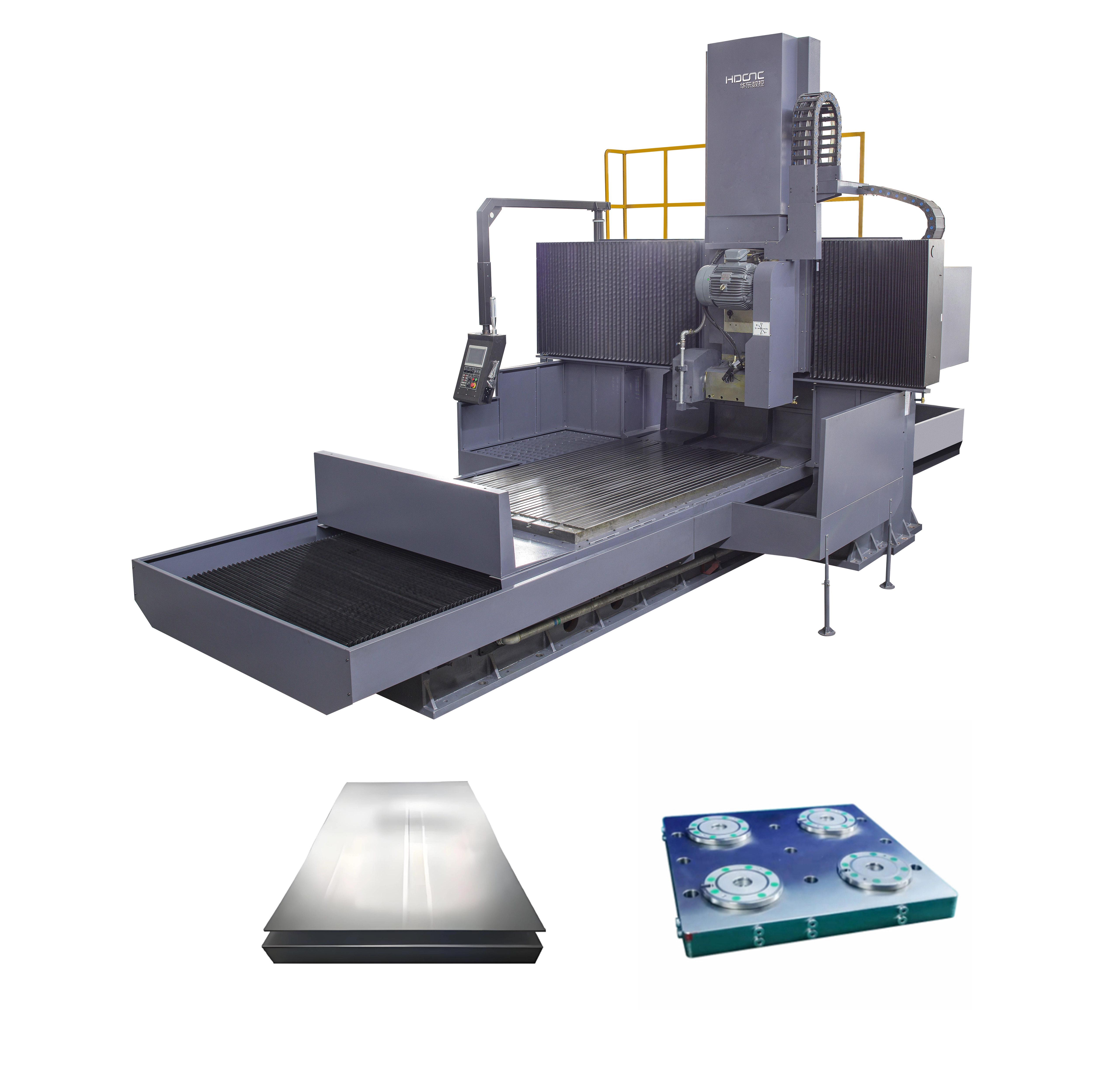

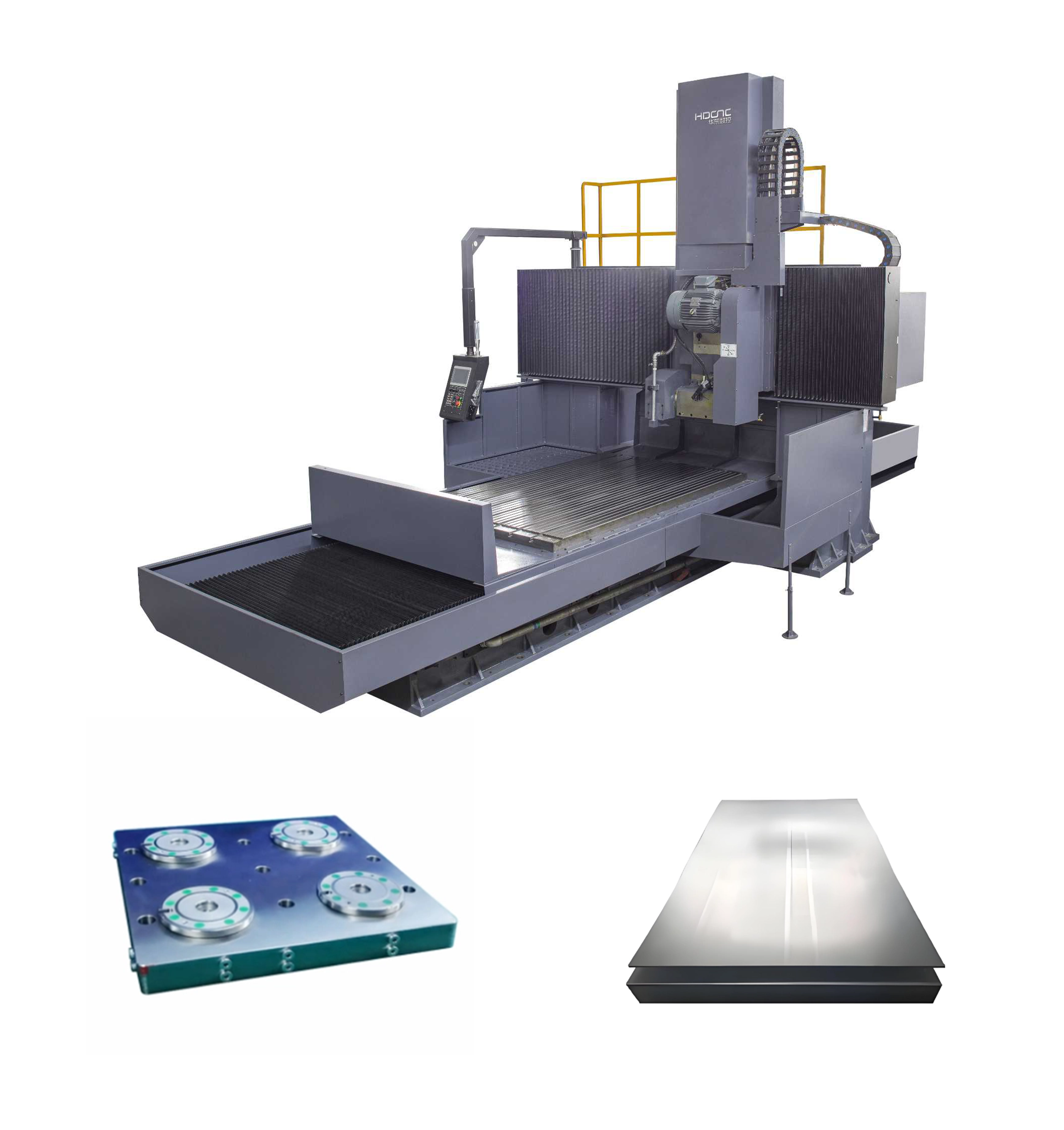

MC(K)W53 series PLC(CNC) gantry rail grinding machine with Fixed beam,covering table size from 1250*2000mm to 3000*16000mm.

Auto parts

Machine industry

Military areospace

Mould

Cooltant system	hydraulic station	lubrication system	working light	leveling wedges
foundation screw	wheel flange	wheel balance arbor	tool and tool box	standard wheel

Diamond pen

Wheel balance stand

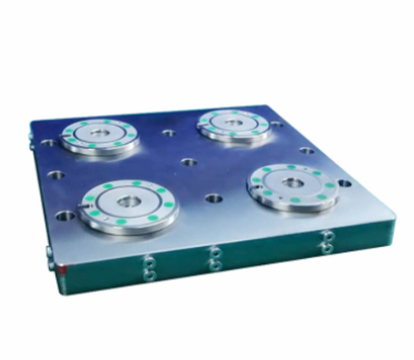

Magnetic chuck

paper filter

DRO

Description		Unit	MCW7512*20	MCW7516*25	MCW7516*30
Table size(W*L)		mm	1000*2000	1250*2500	1250*3000
T-slot（sizedistanceNo.）		mm	28*180-5
Column distance		mm	1200	1600
Table speed		m/min	5-25
X axis max stroke		mm	2300	2800	3300
Max.grinding length		mm	2000	2500	3000
Y axis stroke		mm	1200	1500
Distance from wheelhead center to table surface		mm	250-750
Max. grinding weight		mm	4000	5000	5500
Wheelhead Transverse moving	Moving speed	m/min	0-3
	Min. input unit	mm	0.001
Wheel vertical moving	Z axis max. stroke	mm/t	500
	Moving speed	m/min.	0-0.4
	Min. input unit	mm.	0.001
Wheel head motor power		KW	18.5
Wheel size(ODWidthID)		mm	50075203
Spindle speed		rpm	1200
Surface roughness		μm	Ra0.63
Gross weight		kg	15500	16500	17500
machine dimension(LWH)		cm	650320300	750330300	800330300

Description		Unit	MCW7520*25	MCW7520*35			MCW7525*40		MCW7525*50
Table size(W*L)		mm	1600*2500	1600*3500			2000*4000		2000*5000
T-slot（sizedistanceNo.）		mm	28*200-7	28*200-7			36*250-7
Column distance		mm	2000	2000			2500
Table speed		m/min	5-25
X axis max stroke		mm	2800	3800			4300			5300
Max.grinding length		mm	2500	3500			4000			5000
Y axis stroke		mm	1800	1800			2300
Distance from wheelhead center to table surface		mm	250-750				250-850
Max. grinding weight		mm	6000			8000	10000			12000
Wheelhead Transverse moving	Moving speed	m/min	0-3
	Min. input unit	mm	0.001
Wheel vertical moving	Z axis max. stroke	mm/t	500				600
	Moving speed	m/min.	0-0.4
	Min. input unit	mm.	0.001
Wheel head motor power		KW	18.5
Wheel size(ODWidthID)		mm	50075203
Spindle speed		rpm	1200
Surface roughness		μm	Ra0.63
Gross weight		kg	21000		25000		30000	35000
machine dimension(LWH)		cm	770400310		970400310		1100440320	1300440360

Description		Unit	MC(K)W7530*60	MC(K)W7535*60
Table size(W*L)		mm	2500*6000	3000*6000
T-slot（sizedistanceNo.）		mm	28*200-7	36*250-7
Column distance		mm	2000	2500
Table speed		m/min	5-25
X axis max stroke		mm	3800	4300
Max.grinding length		mm	3500	4000
Y axis stroke		mm	1800	2300
Distance from wheelhead center to table surface		mm	250-750	250-850
Max. grinding weight		mm	13000	15000
Table longitudinal speed		mm	5-25
Wheelhead Transverse moving	moving speed	m/min	0-3
	Min. input unit	mm	0.001
Wheel vertical moving	Z axis max. stroke	mm/t	600
	Moving speed	m/min.	0-0.4
	Min. input unit	mm.	0.001
Wheel head motor power		KW	18.5
Wheel size(ODWidthID)		mm	50075203
Spindle speed		KW	1200
Surface roughness		μm	Ra0.63
Gross weight		kg	56000	60000
machine dimension(LWH)		cm	1500500360	1500550500

Hydrostatic bearing has the advantages of high motion accuracy, no wear, long life, small starting power, high bearing capacity and good vibration resistance at high speed
Longitudinal moves hydraulically with variable speed
MKW series means the machine can be configured with the CNC system to expand to 2 axis CNC machine.
