Glass industry
Oil hydraulic industry
Reducer industry
Cooltant tank
Open steady rest
wheel peripheral dresser
Driving dog
wheel extractor
leveling wedges
wheel balance arbor
belt and waterproof
centers
wheel and flange
wheel balancing stand | magnetic separator | magnetic separator and paper filter |
diamond pen | two axes DRO | radius wheel dresser |
closed steady rest | end face wheel dresser |

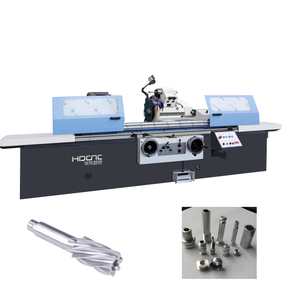

| Description | Unit | MG1432 Universal Cylindrical Grinder |
| Max. length ground(O.D) | mm | 1000/1500 |
| Center Height | mm | 180 |
| Dia.ground(O.D) | mm | 8-320 |

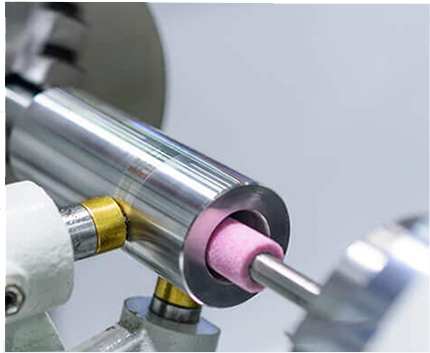

| Dia.ground(I.D) | mm | 30-100 |
| Max. length ground(I.D) | mm | 125 |
| Max. weight of workpiece | KG | 150 |
| Workhead | ||
| Swiveling angle | degree | +90 |
| Center taper | MT | 4 |
| Spindle speed/Stepless | r/min | 26-260 |
| Wheelhead | ||
| Max. dimension of wheel(OD*W*ID) | mm | 400*50*203 |
| Wheel peripheral velocity | m/s | 35 |
| Hand feed per rev. | mm | Coarse:1 Fine: 0.5 |
| Machining accuracy | ||
| Cylindricity | um | 1 |
| Roundness | um | 5 |
| Roughness | um | Ra0.04 |
| Machine |

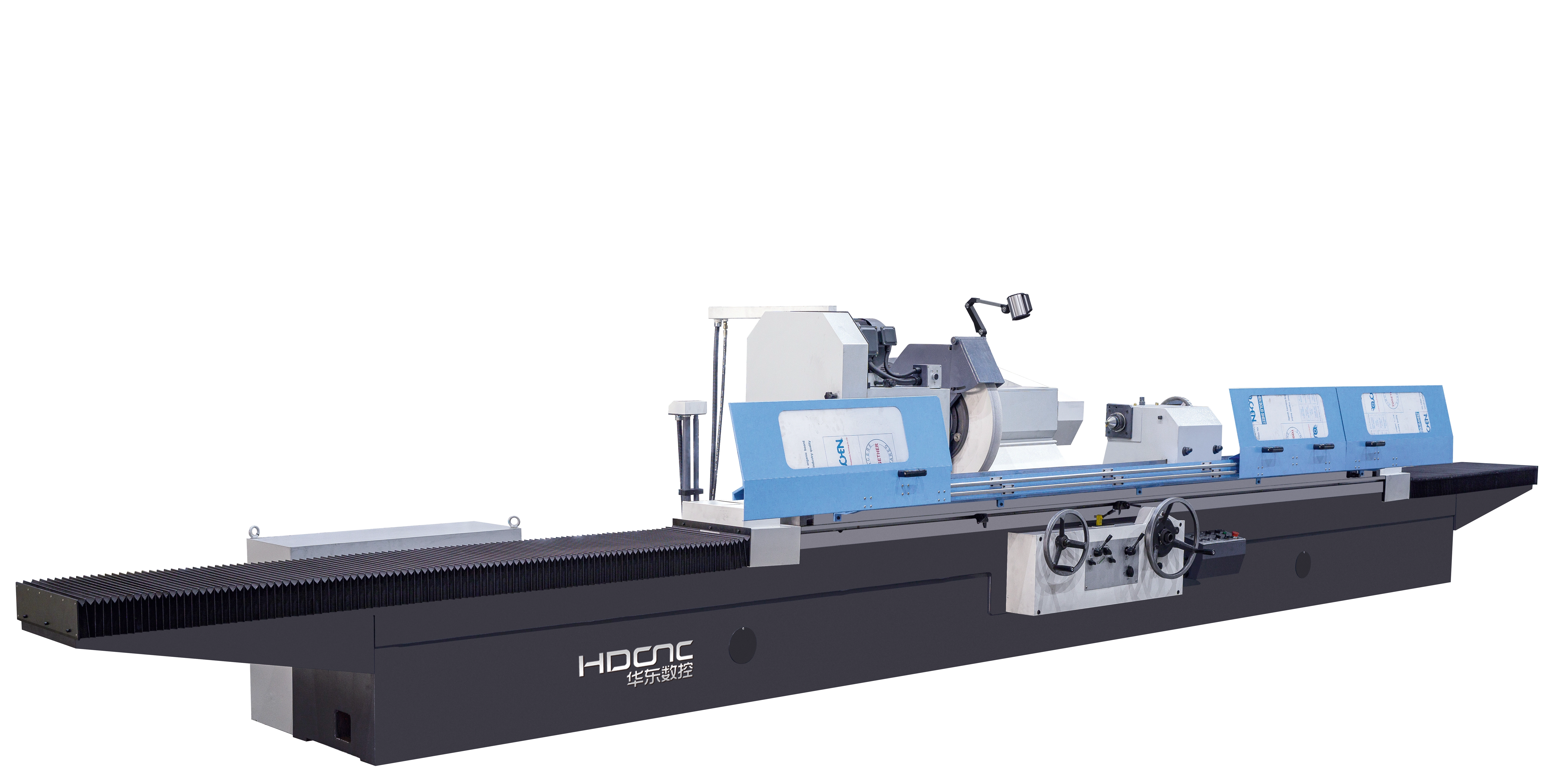

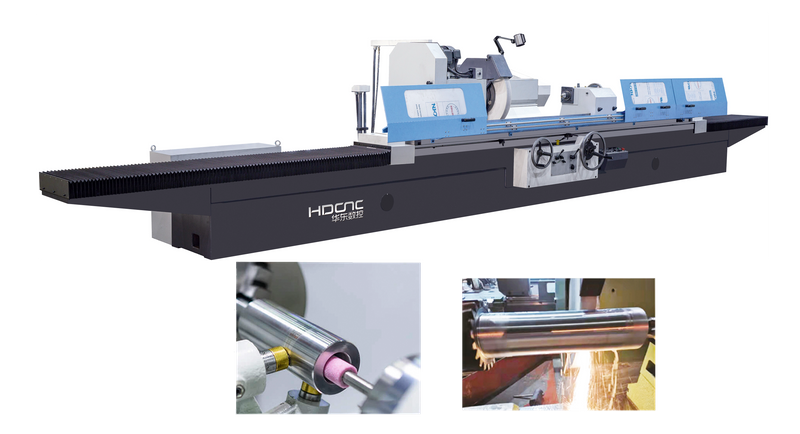

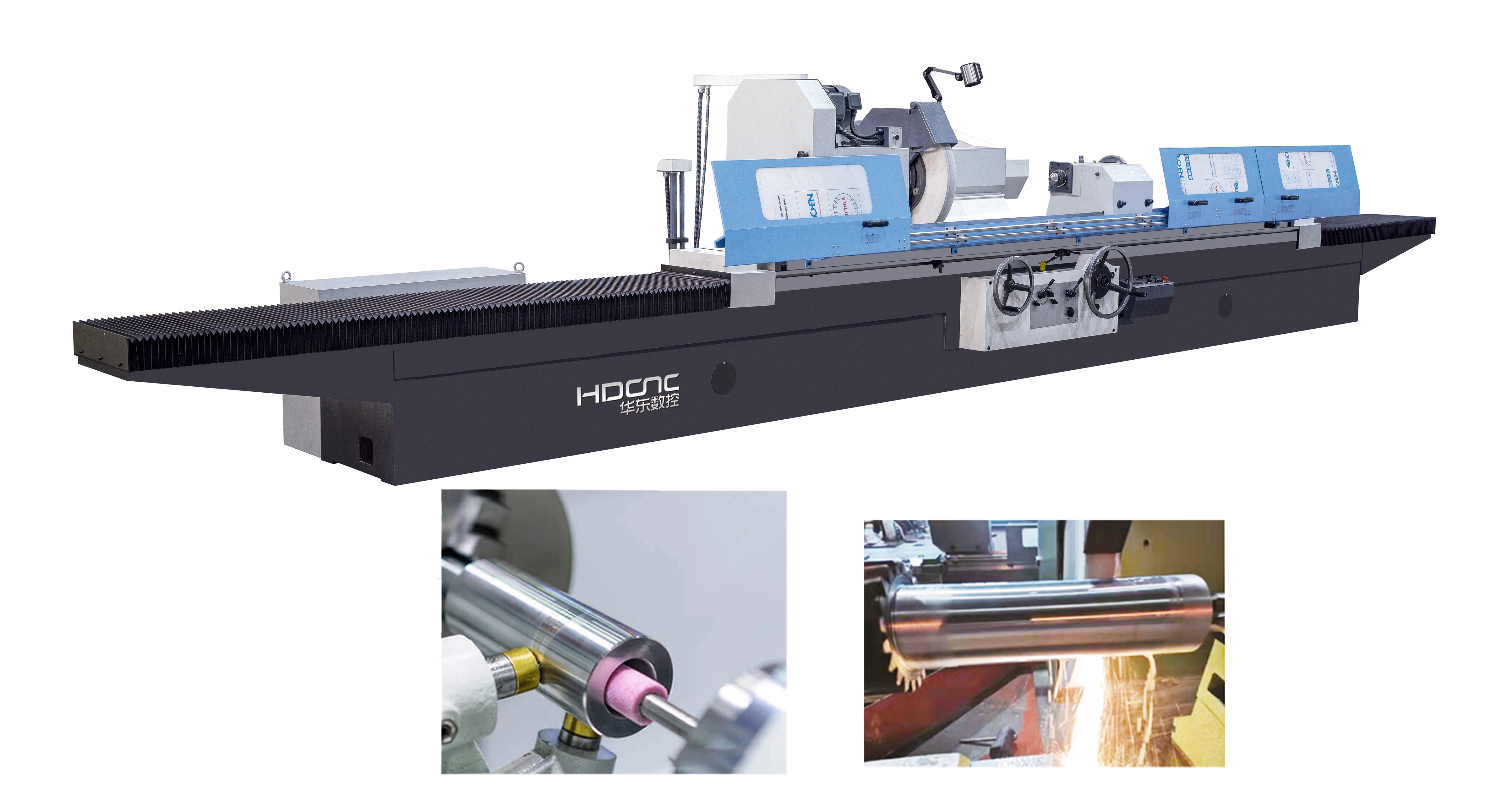

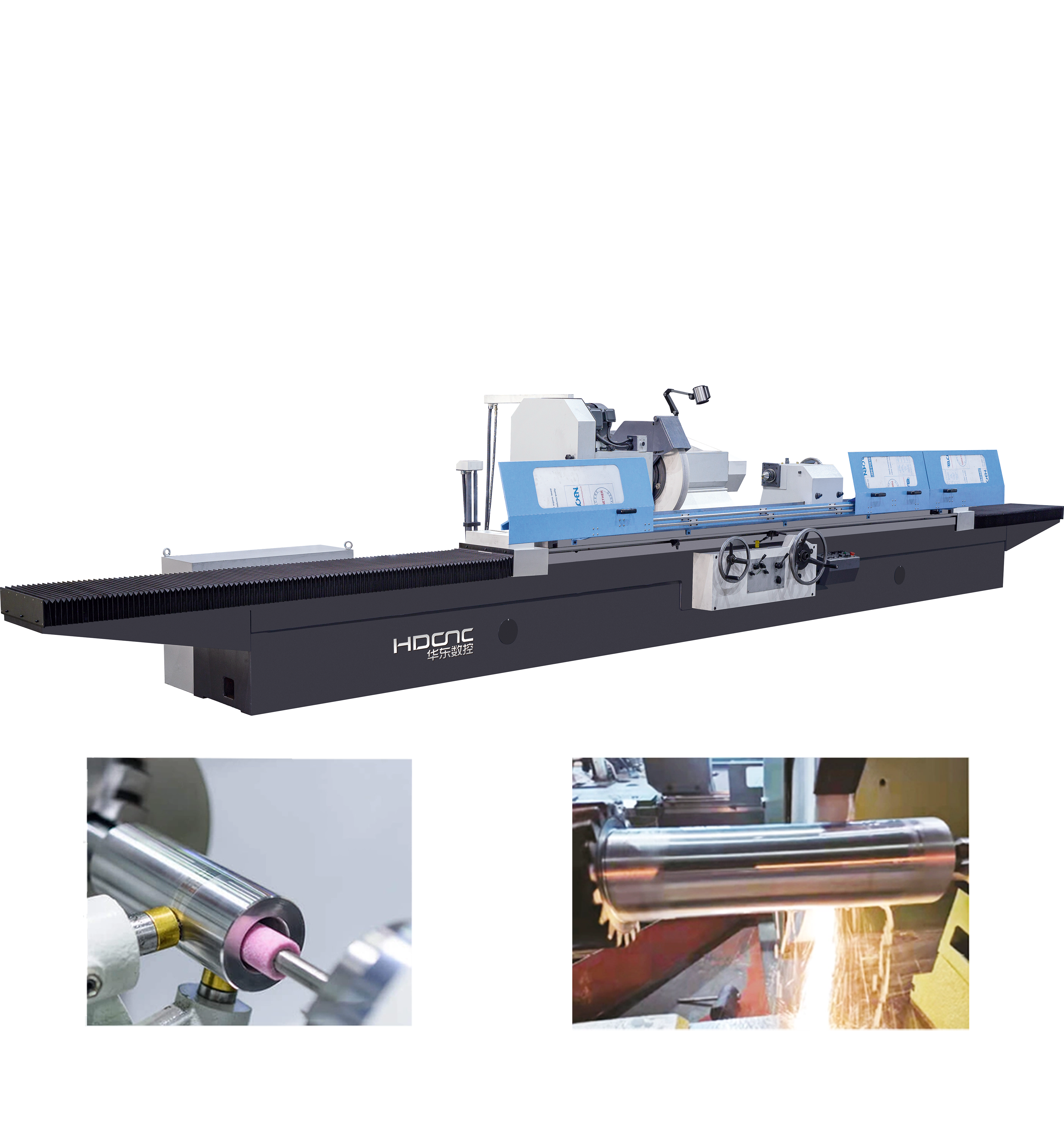

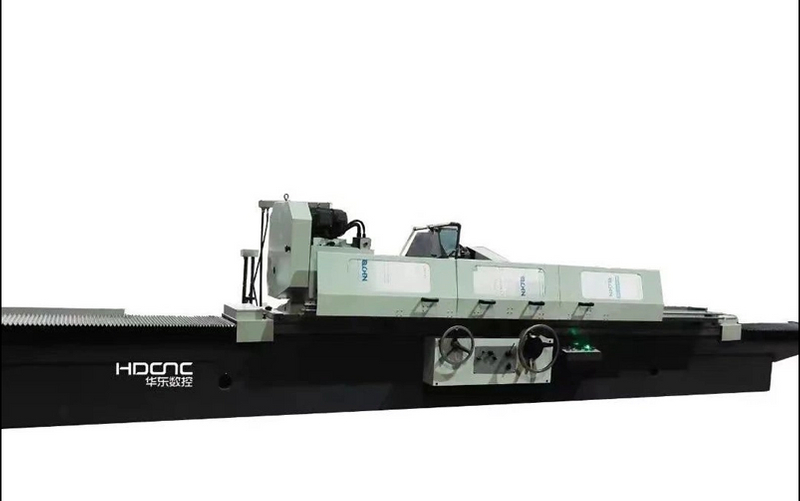

Description | Unit | MG1350 | MG1363 |
General Capacity | |||
Max.length grinding(O.D) | mm | 1500/2000/3000/4000 | |
Center height | mm | 270 | 370 |
Dia.grinding(O.D) | mm | 25-500 | 30-630 |
Max. weight of workpiece | kg | 2000 | 3000 |
Workhead | |||
Center taper | MT | 6 | Metric #80 |
Spindle speed(stepless) | r/min | 10-100 | 6-60 |
Wheelhead | |||
Max. dimension of wheel(O.D*W*I.D) | mm | 750*75*305 | 750*75*305 |
Wheel peripheral velocity | m/s | 35 | 35 |
Wheelhead feed per. circle of handwheel | mm | Rough :2 Fine:0.5 | |
Wheelhead feed per. graduation of handwheel | mm | Rough:0.01 Fine:0.0025 | |
Tailstock | |||
Center taper | MT | 6 | Metric #80 |
Machining Accuracy | |||
Roundness | μm | 1 | 1 |
Cylindricity | μm | 5 | 5 |
Roughness | μm | Ra 0.04 | 0.04 |

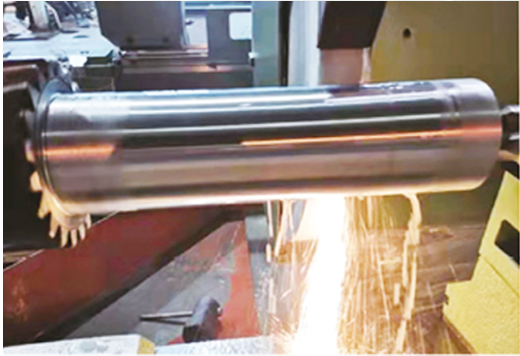

table travels on one V,one flat guideway
Rapid advance and retract of wheel head allows for quicker setup and check of grind-in dimensions
Stepless speed workhead rotates 90°by CCW
machine table swivels for easy taper grinding
hydraulic and manual controlled tailstock with foot switch
Advanced Hydrostatic Lubrication System
