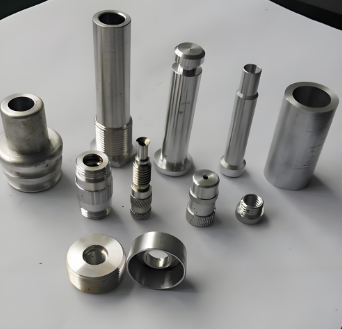

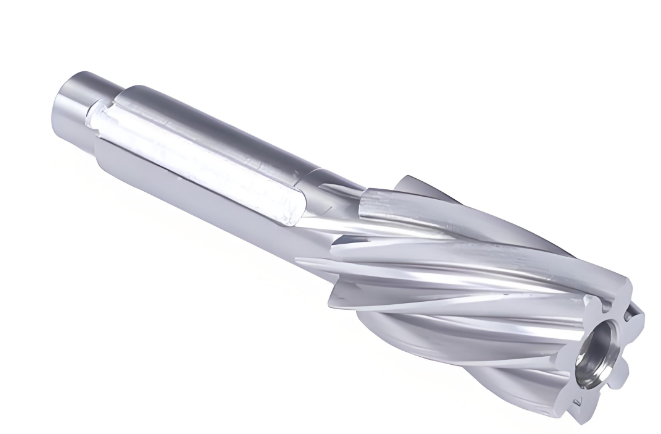

Glass industry
Oil hydraulic industry
Reducer industry
Cooltant tank
Open steady rest
wheel peripheral dresser
Driving dog
wheel extractor
leveling wedges
wheel balance arbor
belt and waterproof
centers
wheel and flange

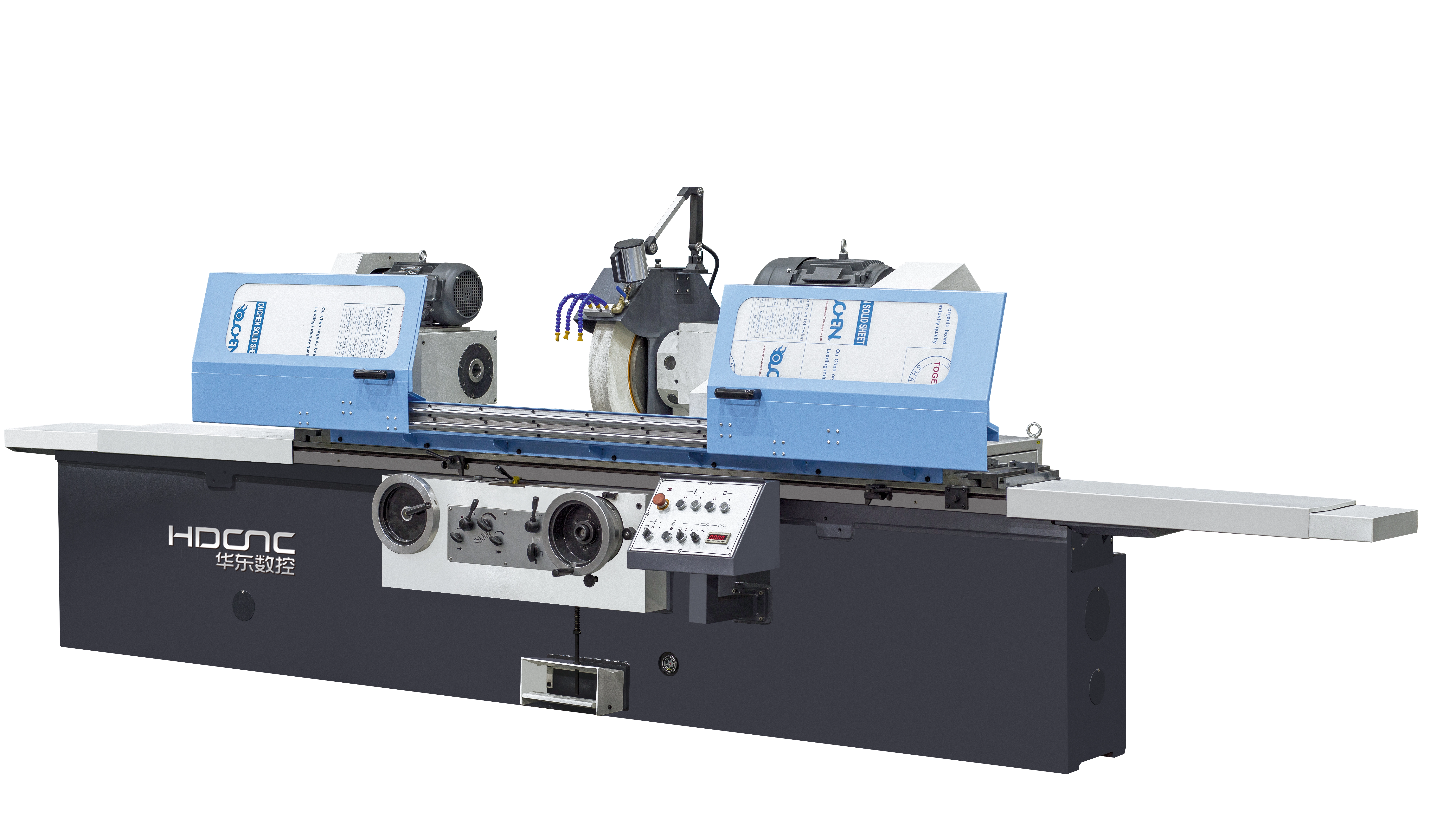

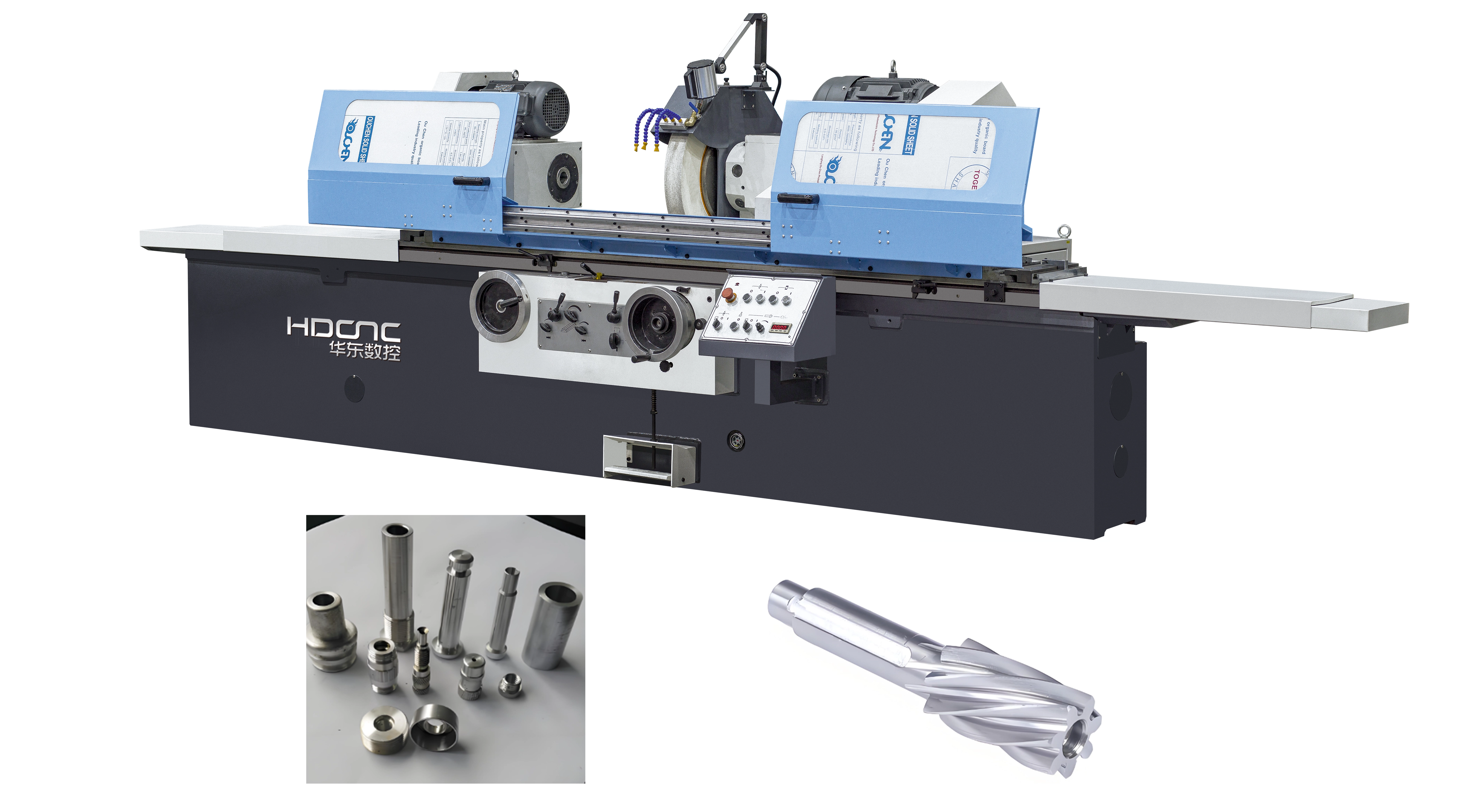

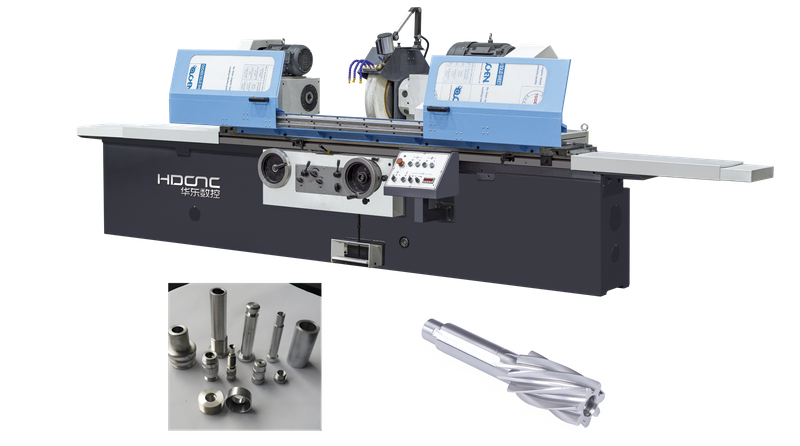

wheel balancing stand | magnetic separator | magnetic separator and paper filter |
diamond pen | two axes DRO | radius wheel dresser |
closed steady rest | end face wheel dresser |
| Description | Unit | M1420 |
| Max. length ground(O.D) | mm | 500/750 |
| Center Height | mm | 125 |
| Dia.ground(O.D) | mm | 5-200 |
| Dia.ground(I.D) | mm | 13-80 |
| Max. length ground(I.D) | mm | 125 |
| Max. weight of workpiece | KG | 50 |
| Workhead | ||
| Swiveling angle | degree | +90 |
| Center taper | MT | 4 |
| Spindle speed/Step | r/min | 125/250/500 |
| Wheelhead | ||
| Max. dimension of wheel(OD*W*ID) | mm | 400*50*203 |
| Wheel peripheral velocity | m/s | 35 |
| Hand feed per rev. | mm | Coarse:1 Fine: 0.5 |
| Hand feed per gra. | mm | Coarse:0.002 Fine: 0.001 |
| Internal grinding device | ||
| Spindle speed | rpm | 9245/12250/14848/19600 |
| wheel dimension | mm | Max.50*32*16 Min.15*20*5 |
| Table | ||
| Max.swiveling angle of table | degree | CW 9 CCW9 |
| Longitudinal speed range of table | m/min | 0.1-3 |
| Tailstock | ||
| Center taper | MT | 4 |
| Quill travel | mm | 25 |
| Motor | ||
| Wheelhead motor power | KW | 5.5 |
| Internal Grinding | KW | 0.55 |
| Workhead motor power | KW | 0.75 |
| Machining accuracy | ||
| Cylindricity | um | 5/8 |
| Roundness | um | 1.5 |
| Roughness | um | Ra0.16 |
| Machine | ||
| Gross weight | T | 2.58(500)2.7(750) |
| Packing dimension | cm | 227*170*175(500) 270*170*175(750) |

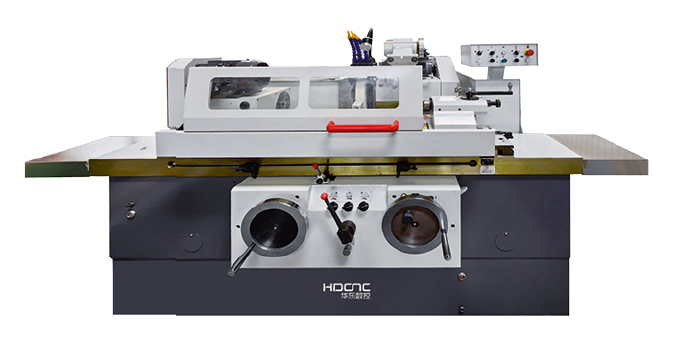

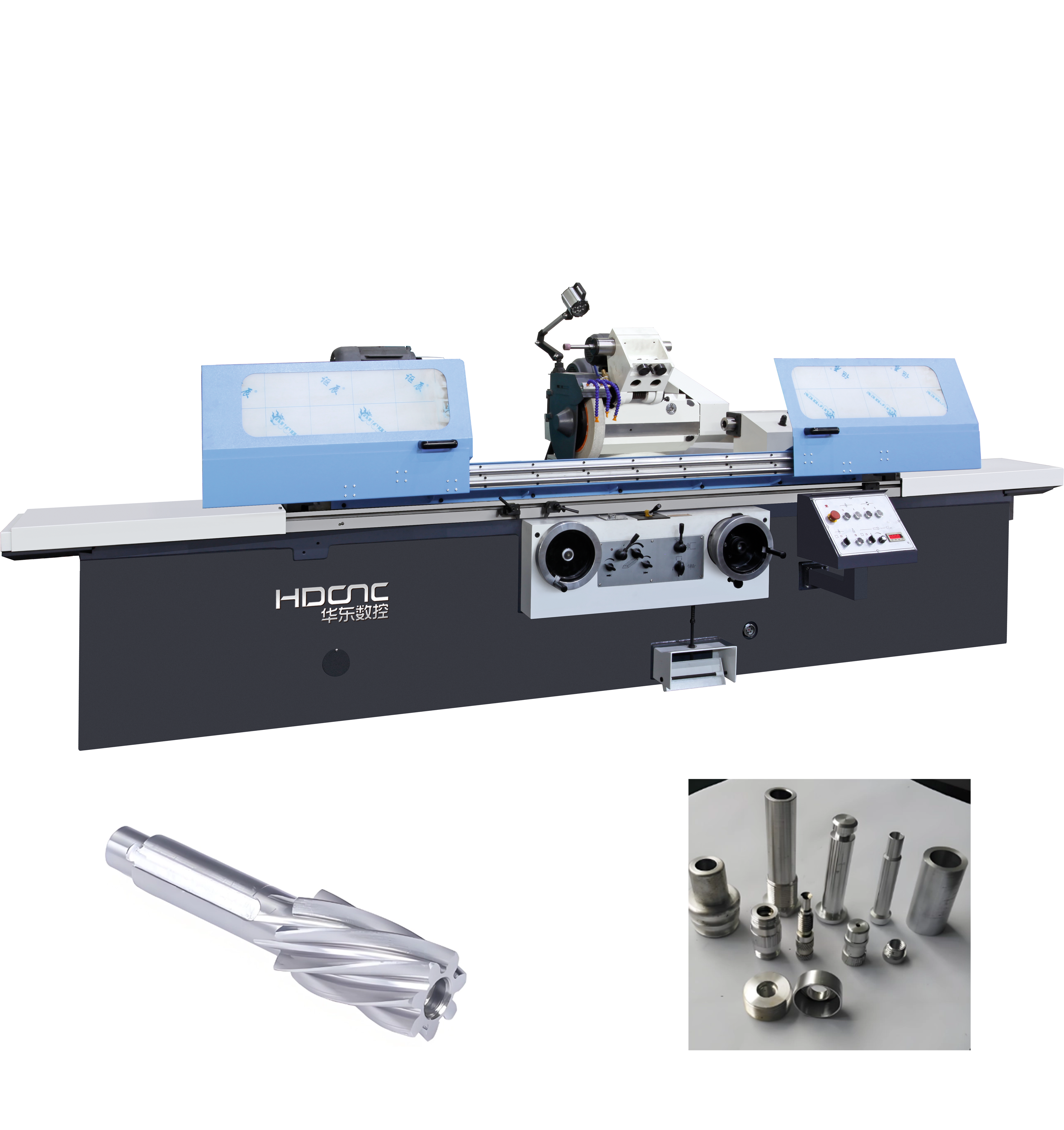

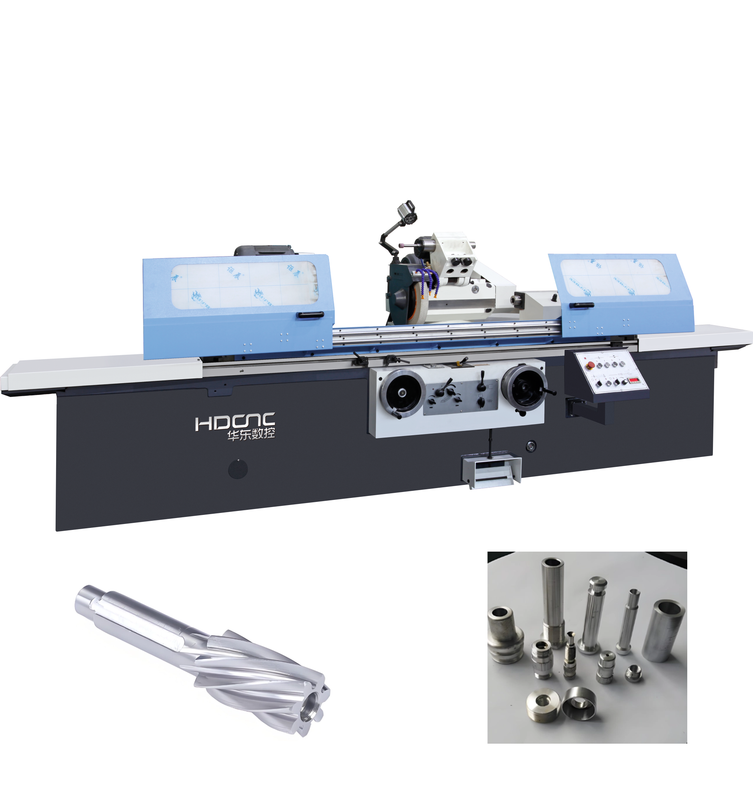

Description | Unit | MW1420 |
General Capacity | ||
Max.length grinding(O.D) | mm | 500/750 |
Center height | mm | 135 |
Dia.grinding(O.D) | mm | 8-200 |
Dia. grinding(I.D) | mm | 25-100 |
Max. weight of workpiece | kg | 100 |
Workhead | ||
Swiveling angle | ° | +90 |
Center taper | MT | 4 |
Spindle speed(stepless) | r/min | 26-260 |
Wheelhead | ||
Max. dimension of wheel(O.D*W*I.D) | mm | 400*50*203 |
Wheel peripheral velocity | m/s | 35 |
Wheelhead feed per. circle of handwheel | mm | Rough :2 Fine:0.5 |
Wheelhead feed per. graduation of handwheel | mm | Rough:0.01 Fine:0.0025 |
Internal grinding device | ||
Spindle speed | r/min | 10000(15000 optional) |
Wheel dimension | mm | Max. 50*25*13 |
mm | Min. 17*20*6 | |
Worktable | ||
Max. swiveling angle of table | ° | 3 |
° | 9 | |
Longitudinal speed range of table | mm/min | 0.1-4 |
Tailstock | ||
Center taper | MT | 4 |
Quill manually travel | mm | 30 |
Motor | ||
Wheelhead motor power | Kw | 4 |
Internal grinding motor power | Kw | 1.1 |
Workhead motor power | Kw | 1.1 |
Machining Accuracy | ||
Roundness | μm | 3 |
Cylindricity | μm | 5 |
Roughness | μm | Ra 0.2 |
Machine | ||
Weight | kg | 3500/4000 |
Package dimension(L*W*H) | cm | 235*203*205 275*203*205 |
Description | Unit | M1432B |
General Capacity | ||
Max.length grinding(O.D) | mm | 1000/1500 |
Center height | mm | 180 |
Dia.grinding(O.D) | mm | 8-320 |
Dia. grinding(I.D) | mm | 30-100 |
Max. weight of workpiece | kg | 150 |
Workhead | ||
Swiveling angle | ° | +90 |
Center taper | MT | 4 |
Spindle speed(stepless) | r/min | 26-260 |
Wheelhead | ||
Max. dimension of wheel(O.D*W*I.D) | mm | 400*50*203 |
Wheel peripheral velocity | m/s | 35 |
Wheelhead feed per. circle of handwheel | mm | Rough :2 Fine:0.5 |
Wheelhead feed per. graduation of handwheel | mm | Rough:0.01 Fine:0.0025 |
Internal grinding device | ||
Spindle speed | r/min | 10000(15000 optional) |
Wheel dimension | mm | Max. 50*25*13 |
mm | Min. 17*20*6 | |
Worktable | ||
Max. swiveling angle of table | ° | 3 |
° | 7/6 | |
Longitudinal speed range of table | mm/min | 0.1-4 |
Tailstock | ||
Center taper | MT | 4 |
Quill manually travel | mm | 30 |
Motor | ||
Wheelhead motor power | Kw | 4 |
Internal grinding motor power | Kw | 1.1 |
Workhead motor power | Kw | 1.5 |
Machining Accuracy | ||
Roundness | μm | 3 |
Cylindricity | μm | 8 |
Roughness | μm | Ra 0.2 |
Machine | ||
Weight | kg | 4000/4800 |
Package dimension(L*W*H) | cm | 326*200*205 426*200*205 |
Description | Unit | M1432H |
General Capacity | ||
Max.length grinding(O.D) | mm | 2000/3000 |
Center height | mm | 180 |
Dia.grinding(O.D) | mm | 8-320 |
Dia. grinding(I.D) | mm | 30-100 |
Max. weight of workpiece | kg | 500 |
Workhead | ||
Swiveling angle | ° | +90 |
Center taper | MT | 5 |
Spindle speed(stepless) | r/min | 26-260 |
Wheelhead | ||
Max. dimension of wheel(O.D*W*I.D) | mm | 500*50*203 |
Wheel peripheral velocity | m/s | 35 |
Wheelhead feed per. circle of handwheel | mm | Rough :2 Fine:0.5 |
Wheelhead feed per. graduation of handwheel | mm | Rough:0.01 Fine:0.0025 |
Internal grinding device | ||
Spindle speed | r/min | 10000(15000 optional) |
Wheel dimension | mm | Max. 50*25*13 |
mm | Min. 17*20*6 | |
Worktable | ||
Max. swiveling angle of table | ° | 3 |
° | 5/3 | |
Longitudinal speed range of table | mm/min | 0.1-3 |
Tailstock | ||
Center taper | MT | 5 |
Quill manually travel | mm | 30 |
Motor | ||
Wheelhead motor power | Kw | 7.5 |
Internal grinding motor power | Kw | 1.1 |
Workhead motor power | Kw | 1.5 |
Machining Accuracy | ||
Roundness | μm | 3 |
Description | Unit | M1450 |
General Capacity | ||
Max.length grinding(O.D) | mm | 1500/2000/3000/4000 |
Center height | mm | 270 |
Dia.grinding(O.D) | mm | 25-500 |
Dia. grinding(I.D) | mm | 30-200 |
Max. weight of workpiece | kg | 1000 |
Workhead | ||
Swiveling angle | ° | +90 |
Center taper | MT | 6 |
Spindle speed(stepless) | r/min | 20-224 |
Wheelhead | ||
Max. dimension of wheel(O.D*W*I.D) | mm | 500*75*305 |
Wheel peripheral velocity | m/s | 35 |
Wheelhead feed per. circle of handwheel | mm | Rough :4 Fine:0.5 |
Wheelhead feed per. graduation of handwheel | mm | Rough:0.02 Fine:0.0025 |
Internal grinding device | ||
Spindle speed | r/min | 10000(15000 optional) |
Wheel dimension | mm | Max. 175*32*32 |
mm | Min. 30*25*10 | |
Worktable | ||
Max. swiveling angle of table | ° | 3(1500)2(2000/3000)1(4000) |
° | 6(1500)5(2000)3(3000)2(4000) | |
Longitudinal speed range of table | mm/min | 0.1-3 |
Tailstock | ||
Center taper | MT | 6 |
Quill manually travel | mm | 70 |
Motor | ||
Wheelhead motor power | Kw | 5/7.5 |
Internal grinding motor power | Kw | 1.5 |
Workhead motor power | Kw | 4.0 |
Machining Accuracy | ||
Roundness | μm | 3(1500)5(2000/3000/4000) |
Cylindricity | μm | 8(1500)10(2000/3000)15(4000) |
Roughness | μm | Ra 0.32 |
Machine | ||
Weight | t | 10/11/13/17 |
Package dimension(L*W*H) | cm | 543*225*210 583*225*210 796*225*210 996*225*210 |
Item | Unit | M1463 | ||
Distance between centers | mm | 2000、3000、4000、5000 | ||
Center height | mm | 370 | ||
Dia. Ground(O.D.) | mm | 30～630 | ||
Dia. Ground(I.D.) | mm | 30～250 | ||
Max. length ground(O.D.) | mm | 5000 | ||
Max. length ground(I.D.) | mm | 320 | ||
Max. weight of work piece | kg | 3000 | ||
Head stock | ||||
Swiveling angle | ° | +90 | ||
Center taper | Metric 80＃ | |||
Spindle speed | r/min | 14~140 | ||
Wheel head | ||||
Swiveling angle | ° | ±30 | ||
Hand feed per.rev | mm | rough：4， fine：0.5 | ||
Hand feed per.div | mm | rough：0.02， fine：0.025 | ||
Wheel size | mm | 600*75*305 | ||
Wheel linear speed | m/s | 35 | ||
Internal grinding device | ||||
Spindle speed | r/min | 10000 | ||
Wheel size | mm | Min.: 30*25*10 | ||
Table | ||||
Hand feed per.rev | mm | 5 | ||
Max. swiveling angle | Colckwise | ° | 2°（2000）1°（3000、4000、5000） | |
Anticlockwise | ° | 4°（2000）3°（3000）2°（4000）2°（2000）1.5°（5000） | ||
Table moving speed | m/min | 0.1～2.5 | ||
Tailstock | ||||
Center taper(MT) | MT | Metric 80＃ | ||
Quill travel | mm | 70 | ||
Motor | ||||
Wheelhead motor power | kw | 7/11KW | ||
Internal grinding motor power | kw | 1.5 | ||
Workhead motor power | kw | 15 | ||
table travels on one V,one flat guideway
Rapid advance and retract of wheel head allows for quicker setup and check of grind-in dimensions
Stepless speed workhead rotates 90°by CCW
machine table swivels for easy taper grinding
hydraulic and manual controlled tailstock with foot switch
Advanced Hydrostatic Lubrication System
