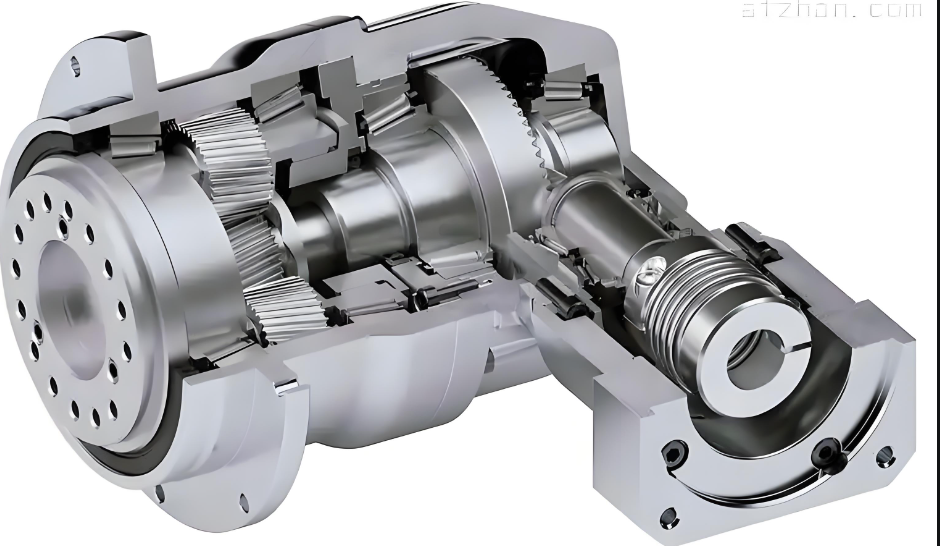

24 T ATC | Spindle air curtain dust control system | Workpiece cooling system | Equal division CNC rotary table | Automatic lubrication system |
Spiral chip removal device | Chain plate type chip remover | Integral cover | Tool and toolbox | Foundation screw and leveling wedges |
| Siemens828D system | 30/32/40 T ATC | three axes grating ruler | Oil Separator device |
| Tool setting Device | ZF gear box | Workpiece measuring device | 0.001° rotary table |
| model | Unit | HLC500 | HLC630 | HLC800 | HLC1000 |
| table size | mm | 500×500 | 630×630 | 800×800 | 1000×1000 |
| max loading weight | kg | 500/600 | 2000/800 | 2000/800 | 3000/5000 |
| table dividing | ° | 1°×360/0.001 | 1°×360/0.001 | 1°×360/0.001 | 1°×360/0.001 |
| number-width-distance | mm | 5×18×100 | 5×18×125 | 5×22×160 | 5×22×200 |
| XYZ travel | mm | 800/600/600 | 1000/800/900 | 1200/900/900 | 1800/1400/1400 |
| rapid speed(XYZ) | m/min | 24/15/24 | 24/15/24 | 24/15/24 | 9/9/12 |
| XYZ cutting speed | mm/min | 1-8000 | 1-8000 | 1-8000 | 1-5000 |
| spindle center to table surface | mm | 50-650 | 0-800 | 0-900 | 130-1530 |
| spindle nose to table center | mm | 150-750 | 200-1100 | 220-1120 | 250-1650 |
| spindle speed | rpm | 6000 | 6000 | 6000 | 6000 |
| spindle power | kw | 11/15 | 15/18.5 | 15/18.5 | 18.5/22 |
| tool holder type | BT50 | BT50 | BT50 | BT50 | |
| pull stud | BT50-45° | BT50-45° | BT50-45° | BT50-45° | |
| ATC capacity | 24/32/40 | 24/32/40 | 24/32/40 | 30/32/40 | |
| tool change time | s | 3.5 | 3.5 | 3.5 | 8 |
| max tool weight | kg | 25 | 25 | 25 | 25 |
| max diameter of tool | mm | Φ110/Φ220 | Φ110/Φ220 | Φ110/Φ220 | Φ112/Φ220 |
| airpressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| machine weight | kg | 10800 | 13000 | 14000 | 28000 |
| machine overall size | mm | 3800×3000×3020 | 4300×3150×3800 | 4300×3150×3900 | 7400×5900×3820 |
| model | Unit | HLC500S | HLC630S | HLC1000S | HLC1250 |
| table size | mm | 500×600 | 630×700 | 1000×1000 | 1250×1250 |
| max loading weight | kg | 600 | 950 | 1500 | 3000/5000 |
| table dividing | ° | 1°×360/0.001 | 1°×360/0.001 | 1°×360/0.001 | 1°×360/0.001 |
| number-width-distance | mm | 5×18×100 | 5×22×125 | 5×22×125 | 7×22×160 |
| XYZ travel | mm | 800/620/600 | 1050/750/900 | 1600/1000/1000 | 1800/1400/1400 |
| rapid speed(XYZ) | m/min | 24/15/24 | 24/15/24 | 18/18/18 | 9/9/12 |
| XYZ cutting speed | mm/min | 1-8000 | 1-8000 | 1-5000 | 1-5000 |
| spindle center to table surface | mm | 40-660 | 120-870 | 120-1120 | 80-1480 |
| spindle nose to table center | mm | 160-760 | 130-1030 | 220-1220 | 250-1650 |
| spindle speed | rpm | 6000 | 6000 | 6000 | 6000 |
| spindle power | kw | 11/15 | 15/18.5 | 15/18.5 | 18.5/22 |
| tool holder type | BT50 | BT50 | BT50 | BT50 | |
| pull stud | BT50-45° | BT50-45° | BT50-45° | BT50-45° | |
| ATC capacity | 24/32/40 | 24/32/40 | 30/32/40 | 30/32/40 | |
| tool change time | s | 3.5 | 3.5 | 7.5 | 8 |
| max tool weight | kg | 25 | 25 | 25 | 25 |
| max diameter of tool | mm | Φ110/Φ220 | Φ110/Φ220 | Φ125/Φ240 | Φ112/Φ200 |
| airpressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| machine weight | kg | 10000 | 13500 | 20000 | 30000 |
| machine overall size | mm | 3800×2800×2900 | 4300×3150×3600 | 6400×5500×3820 | 7400×5900×3820 |

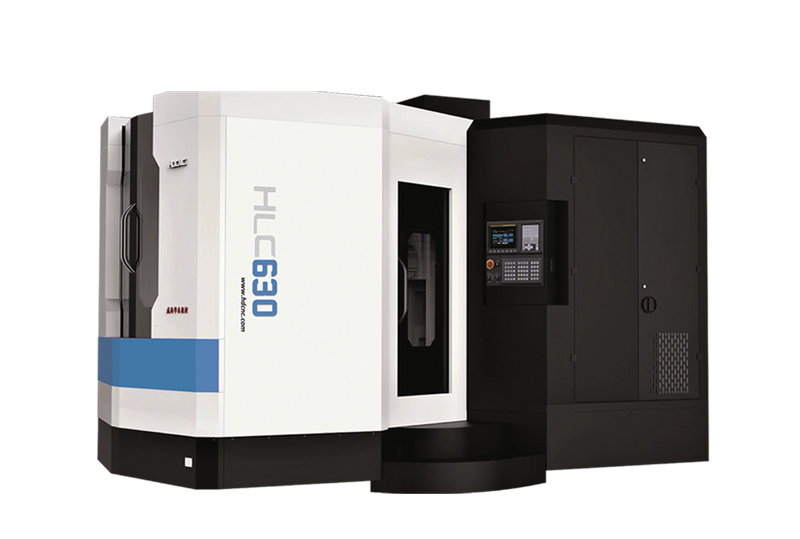

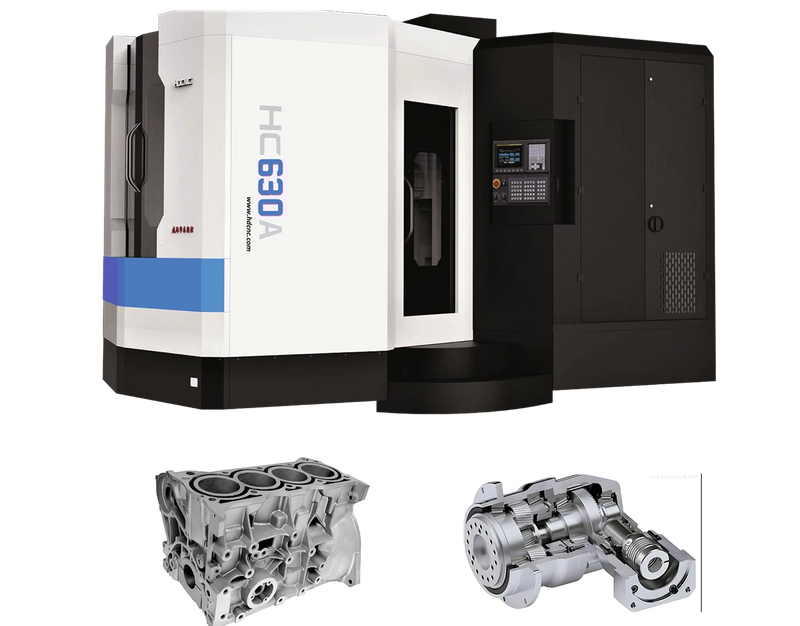

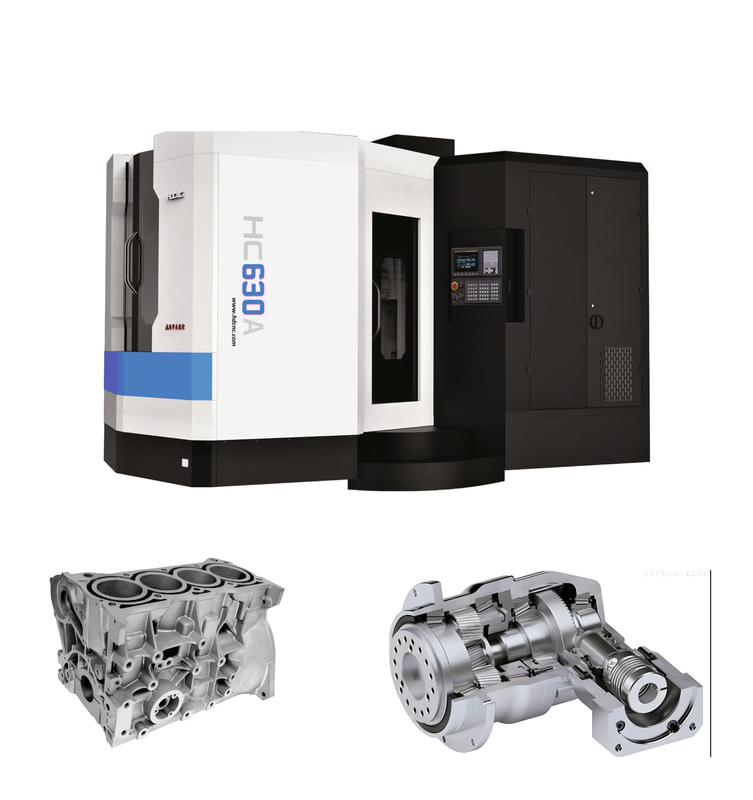

HLC series horizontal machining center as a whole continued HC500A, HC630A, HC800A hard rails lying machine tool structure,using inverted "T "shape structure, one-piece base, before bed one-piece structure with the base, the linear coordinate guide rail are overloaded high precision roller contour line, the high speed machine tool teed little vibration, low speed teed without crawling, can carry heavy load cutting, and has a high precision stability and dynamic response. The machine can choose FANUC and Siemens system, rotary table, AC, spindle, rail, screw are Taiwan brands.
Column door type frame, double wall box type mechanism, good rigidity, spindle center line and column two guide rail center linen the same plane, spindle system deformation is small, high processing accuracy.
Long span guide rail design, strong bearing capacity, machine overall rigidity good

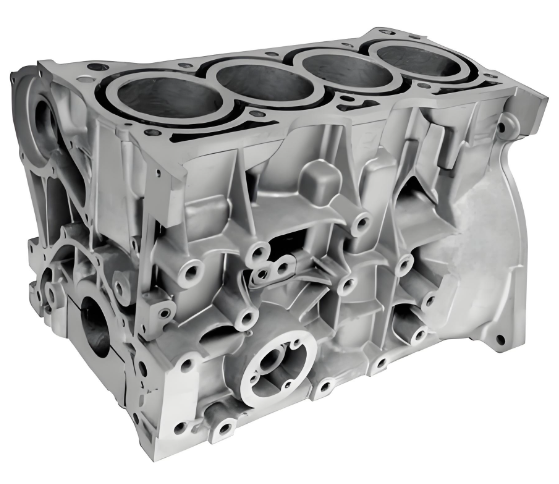

Equipped with a high precision rotary table suitable tor box ,machine base ,column and other polyhedral parts processing ,a clamping can complete milling, boring, drilling
