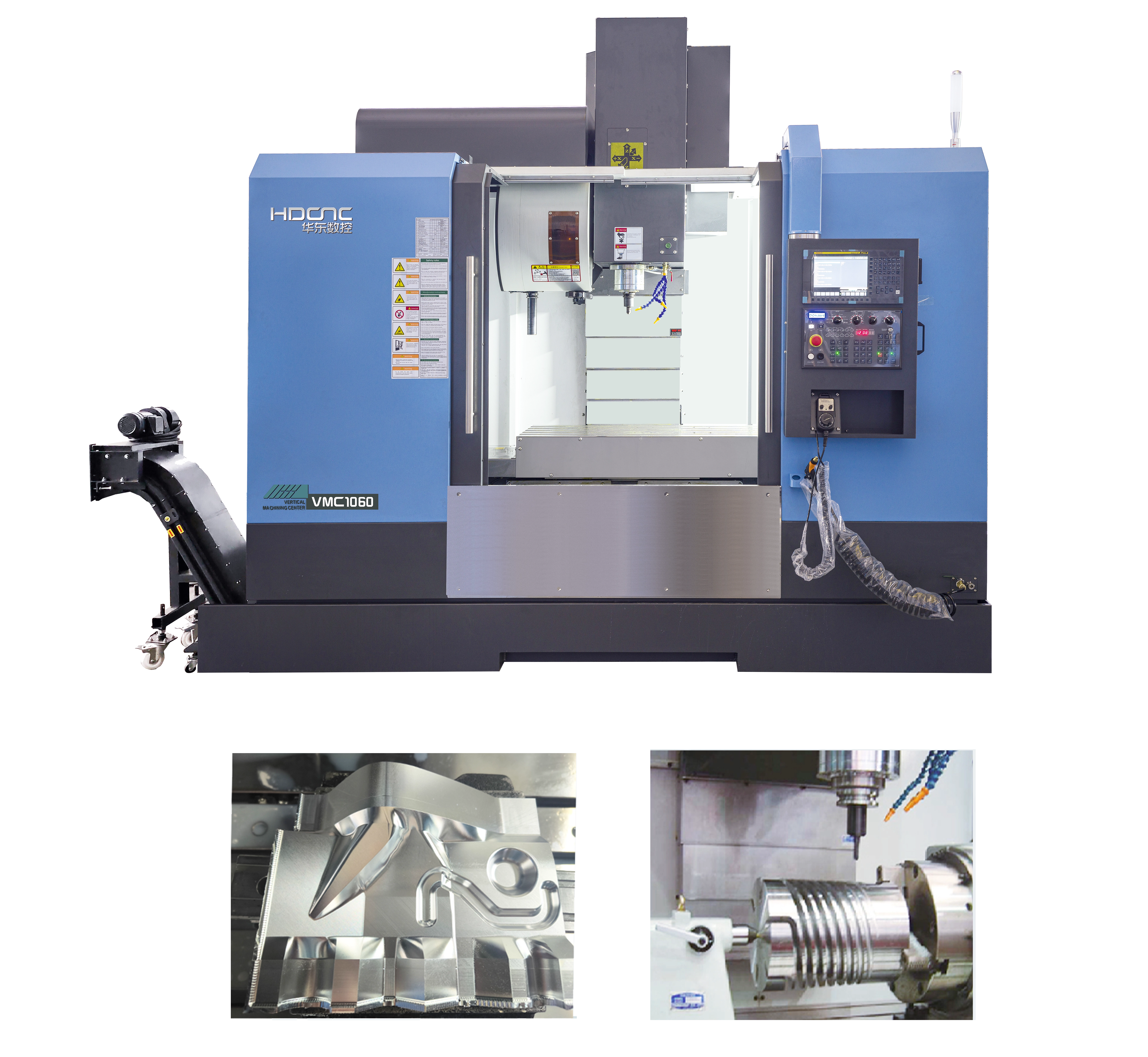

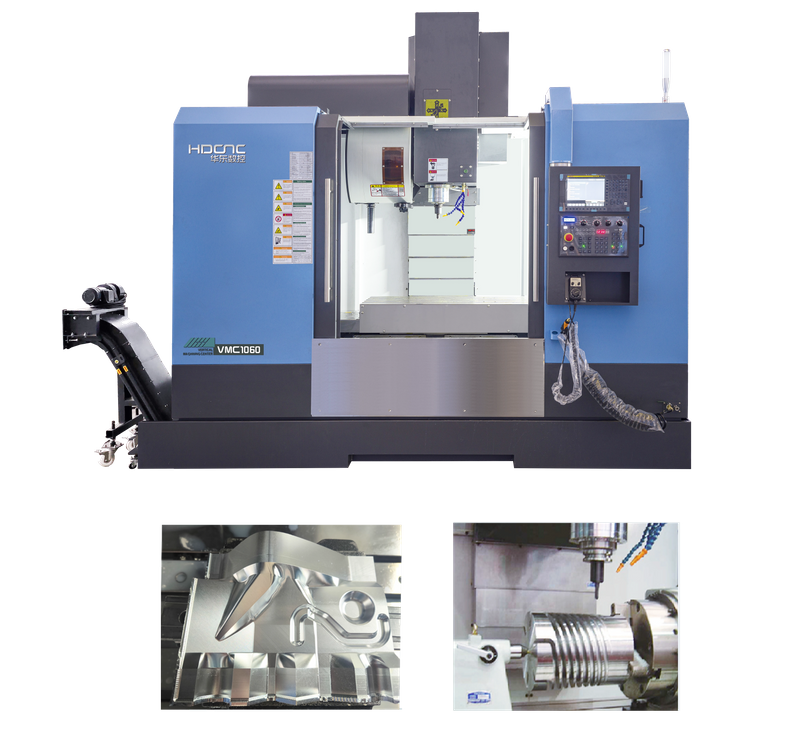

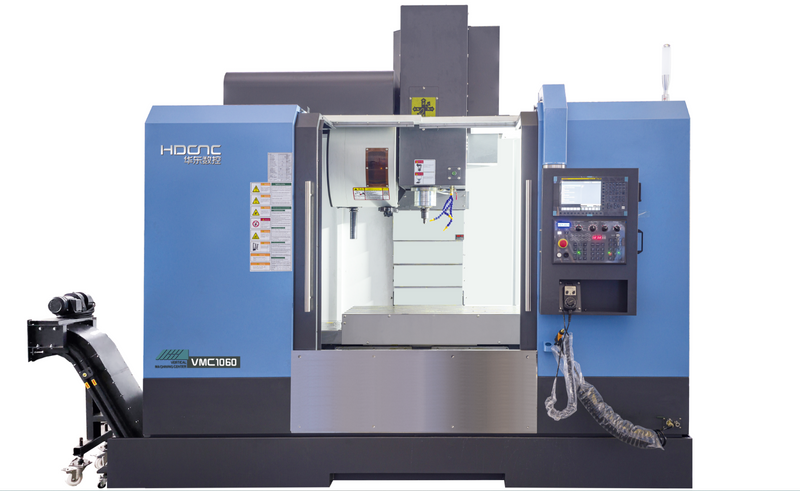

Vertical Machining Center

VMC series vertical machining center inherits the advantages of strong rigidity, symmetrical structure and strong stability of the foundation frame of the traditional vertical CNC milling machine, introduces the international advanced dynamic rigidity design concept, and optimizes the design of the moving parts.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Machine Application

Functions parts

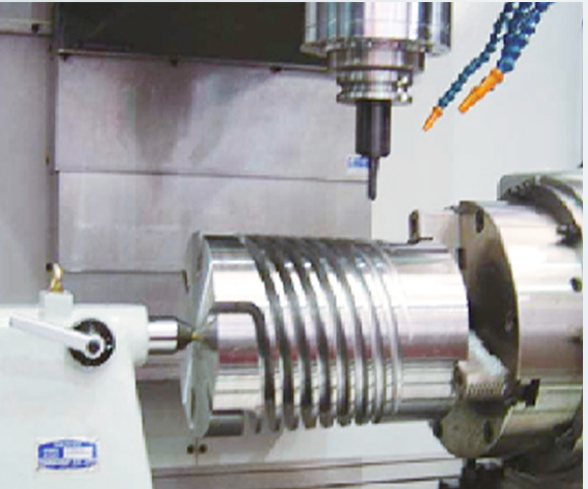

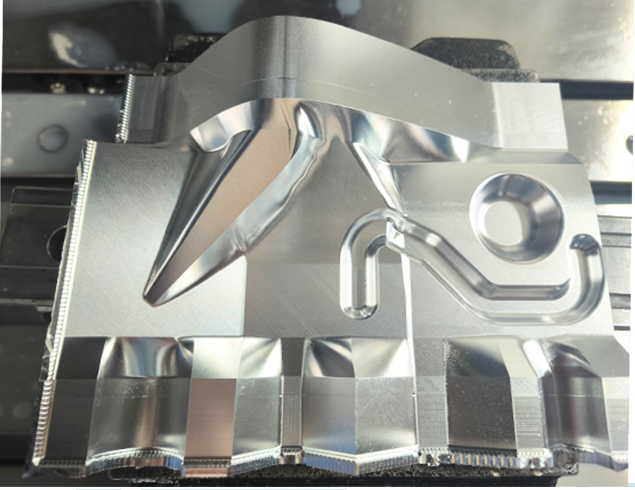

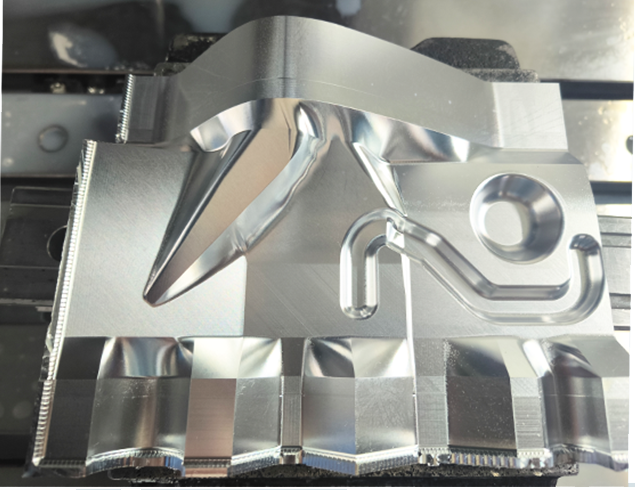

General machining

Hardware fittings

Machine processing

Standard Accessories

back row chip full cover sheet metal without the chip	Drawer type water tank and chip box
Backward impact chip washing device	Full-function operation panel and handwheel
Belt drive spindle	Sprinkler cooling system at the spindle side
Air cooling system at spindle side	Heat exchange device of electric cabinet
Work area cleaning water gun, air gun	Working light and alarm light
ATC

Optional Accessories

Cooltant through Spindle	3 axis linear scale
Function of the fourth axis	Spindle oil cooling function
Direct connection drive spindle	Oil-water separation device
Workpiece and tool measuring device	Door open switch

Machine Parameters

parameter	model	VMC850E	VMC855E	VMC1060E	VMC1160E
Table	table size	1000×550	1000×550	1200×600	1200×600
	max workpiece weight	500	500	800	800
	T slot number width distance	5-18×90	5-18×90	5-18×100	5-18×100
travel	XYZ travel	800/500/500	800/550/550	1000/600/600	1100/600/600
	max distance from spindle nose to table surface	150-650	150-650	120-720	120-720
	spindle center to Z aixs guide surface	570	570	650	650
spindle	spindle motor power	7.5/11	7.5/11	11/15	11/15
	max spindle speed	8000	8000	8000	8000
	spindle taper	BT40	BT40	BT40	BT40
feed	3 axis rapid speed	36/36/36	36/36/36	36/36/36	36/36/24
feed	max cutting speed	10	10	10	10
ATC	pull stud	MAS403 BT40-45	MAS403 BT40-45	MAS403 BT40-45	MAS403 BT40-45
	ATC capacity	arm type BT40-24T	arm type BT40-24T	arm type BT40-24T	arm type BT40-24T
	max diameter of tool length	85×350	85×350	85×350	85×350
accuracy	positioning accuracy	0.005	0.005	0.005	0.005
accuracy	repeatability accuracy	0.003	0.003	0.003	0.003
others	CNC system	HNC-818F	HNC-818F	HNC-818F	HNC-818F
	machine size L×W×H	256024502840	256024502840	324025302965	324025302965
	machine weight	4500	4500	5600	5600

parameter	model	VMC850	VMC855	VMC1160	VMC1275
Table	table size	1000×500	1000×550	1200×600	1300×700
	max workpiece weight	500	500	800	1000
	T slot number width distance	5-18×90	5-18×90	5-18×100	5-18×100
travel	XYZ travel	800/500/500	800/550/550	1100/600/600	1200/750/600
	max distance from spindle nose to table surface	150-650	140-690	120-720	120-720
	spindle center to Z aixs guide surface	570	595	650	750
spindle	spindle motor power	7.5/11	11/15	11/15	11/15
	max spindle speed	8000	8000	8000	8000
	spindle taper	BT40	BT40	BT40	BT40
feed	3 axis rapid speed	48/48/36	36/36/24	36/36/36	36/36/24
feed	max cutting speed	10	10	10	10
ATC	pull stud	MAS403 BT40-45	MAS403 BT40-45	MAS403 BT40-45	MAS403 BT40-45
	ATC capacity	arm type BT40-24T	arm type BT40-24T	arm type BT40-24T	arm type BT40-24T
	max diameter of tool length	85×350	85×350	85×350	85×350
accuracy	positioning accuracy	0.005	0.005	0.005	0.005
accuracy	repeatability accuracy	0.003	0.003	0.004	0.004
others	CNC system	FANUC SIEMENS MIRSUBISHI	FANUC SIEMENS MIRSUBISHI	FANUC SIEMENS MIRSUBISHI	FANUC SIEMENS MIRSUBISHI
	machine size L×W×H	2700×2400×2700	2700×2400×2750	3200×2500×2800	3450×2750×2800
	machine weight	5300	5800	7000	8500

parameter	model	VMC1370	VMC1580
Table	table size	1400×700	1600*800
	max workpiece weight	1200	1500
	T slot number width distance	5-18×110	7-18×110
travel	XYZ travel	1300/700/700	1500/800/700
	max distance from spindle nose to table surface	120-820	185-855
	spindle center to Z aixs guide surface	750	855
spindle	spindle motor power	11/15	11/15
	max spindle speed	8000	8000
	spindle taper	BT40	BT40
feed	3 axis rapid speed	24/24/24	20/20/20
feed	max cutting speed	10	10
ATC	pull stud	MAS403 BT40-45	MAS403 BT50-45
	ATC capacity	arm type BT40-24T	arm type BT50-24T
	max diameter of tool length	85×350	125×300
accuracy	positioning accuracy	0.006	0.006
accuracy	repeatability accuracy	0.004	0.005
others	CNC system	FANUC/SIEMENS/MIRSUBISHI	FANUC/SIEMENS/MIRSUBISHI
	machine size L×W×H	3580×2800×2850	415033702900
	machine weight	9800	14800

parameter	model	VMC1060	VMC1680	VMC1890
Table	table size	1200*600	1700×800	2000×900
	max workpiece weight	800	1500	2000
	T slot number width distance	5-18×100	7-22×110	7-22×125
travel	XYZ travel	1000/600/600	1600/800/700	1800/900/800
	max distance from spindle nose to table surface	120-720	190-890	150-950
	spindle center to Z aixs guide surface	650	855	950
spindle	spindle motor power	11/15	11/15	15/18.5
	max spindle speed	8000	8000	8000
	spindle taper	BT40	BT40	BT50
feed	3 axis rapid speed	36/36/24	20/20/20	18/18/15
feed	max cutting speed	10	10	10
ATC	pull stud	MAS403 BT50-45	MAS403 BT50-45	MAS403 BT50-45
	ATC capacity	arm type BT50-24T	arm type BT50-24T	arm type BT50-24T
	max diameter of tool length	85×350	125×300	125×300
accuracy	positioning accuracy	0.005	0.007	0.007
accuracy	repeatability accuracy	0.004	0.005	0.005
others	CNC system	FANUC/SIEMEN S/MIRSUBISHI	FANUC/SIEMENS /MIRSUBISHI	FANUC/SIEMENS /MIRSUBISHI
	machine size L×W×H	320025002800	4150×3370×2900	4800×3400×3300
	machine weight	7000	13400	15800
