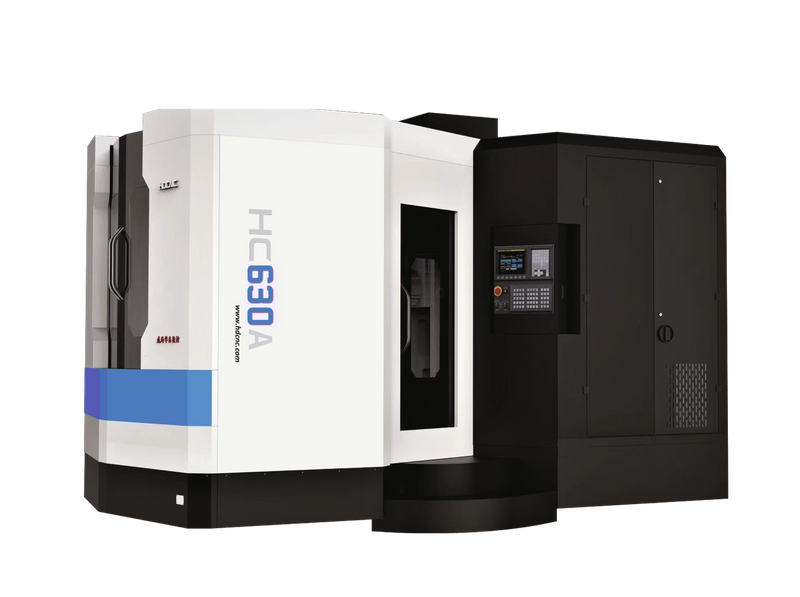

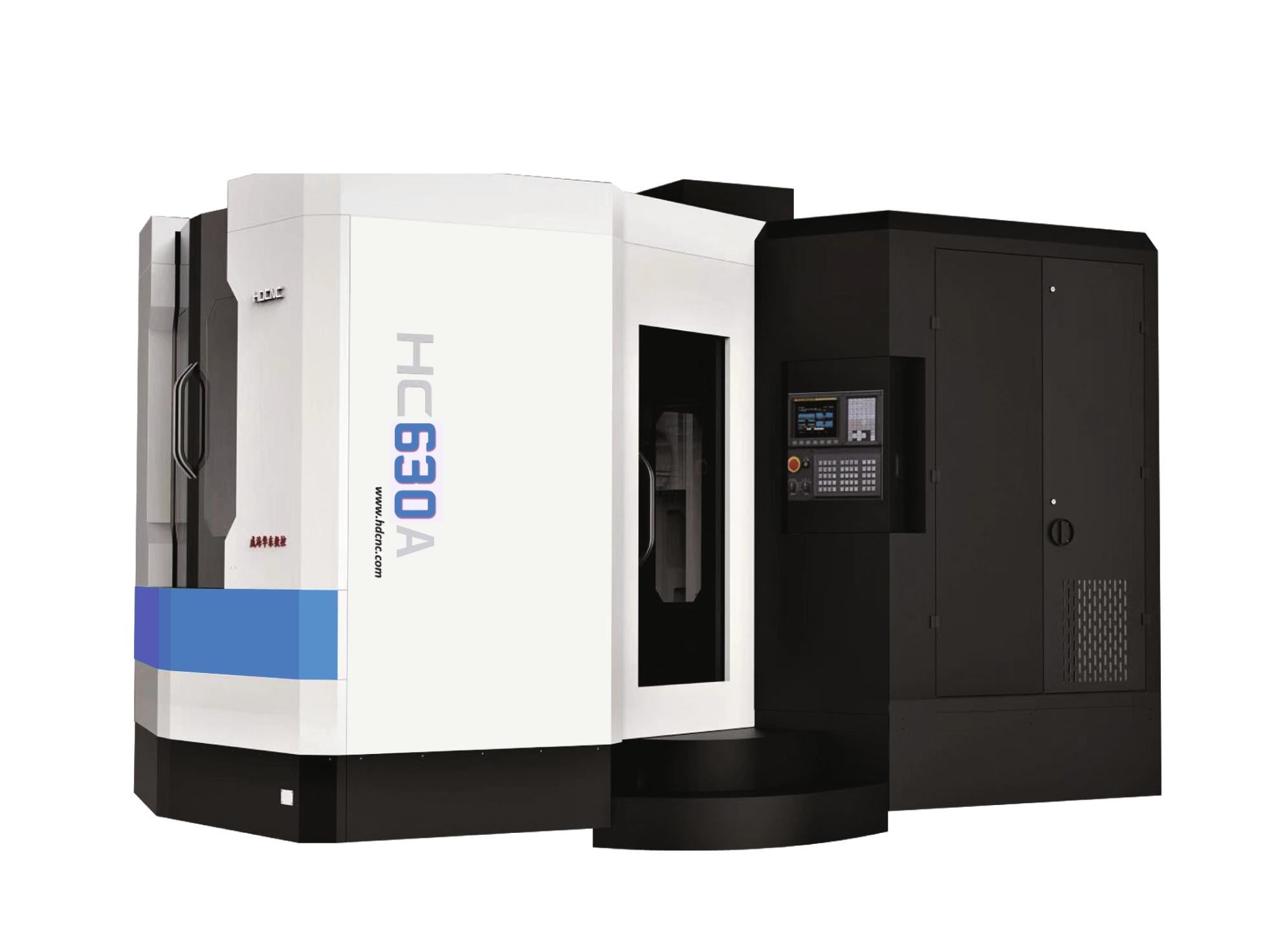

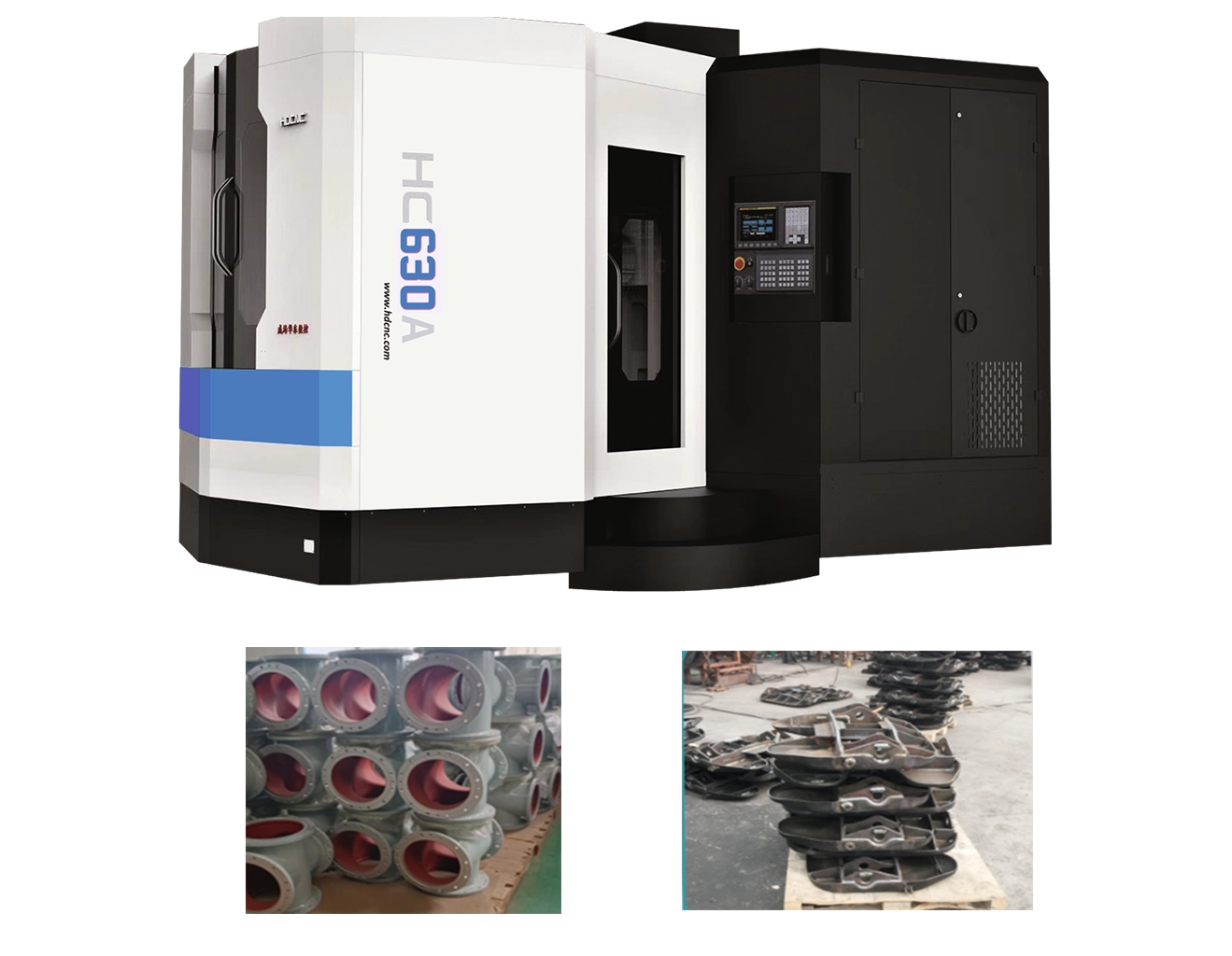

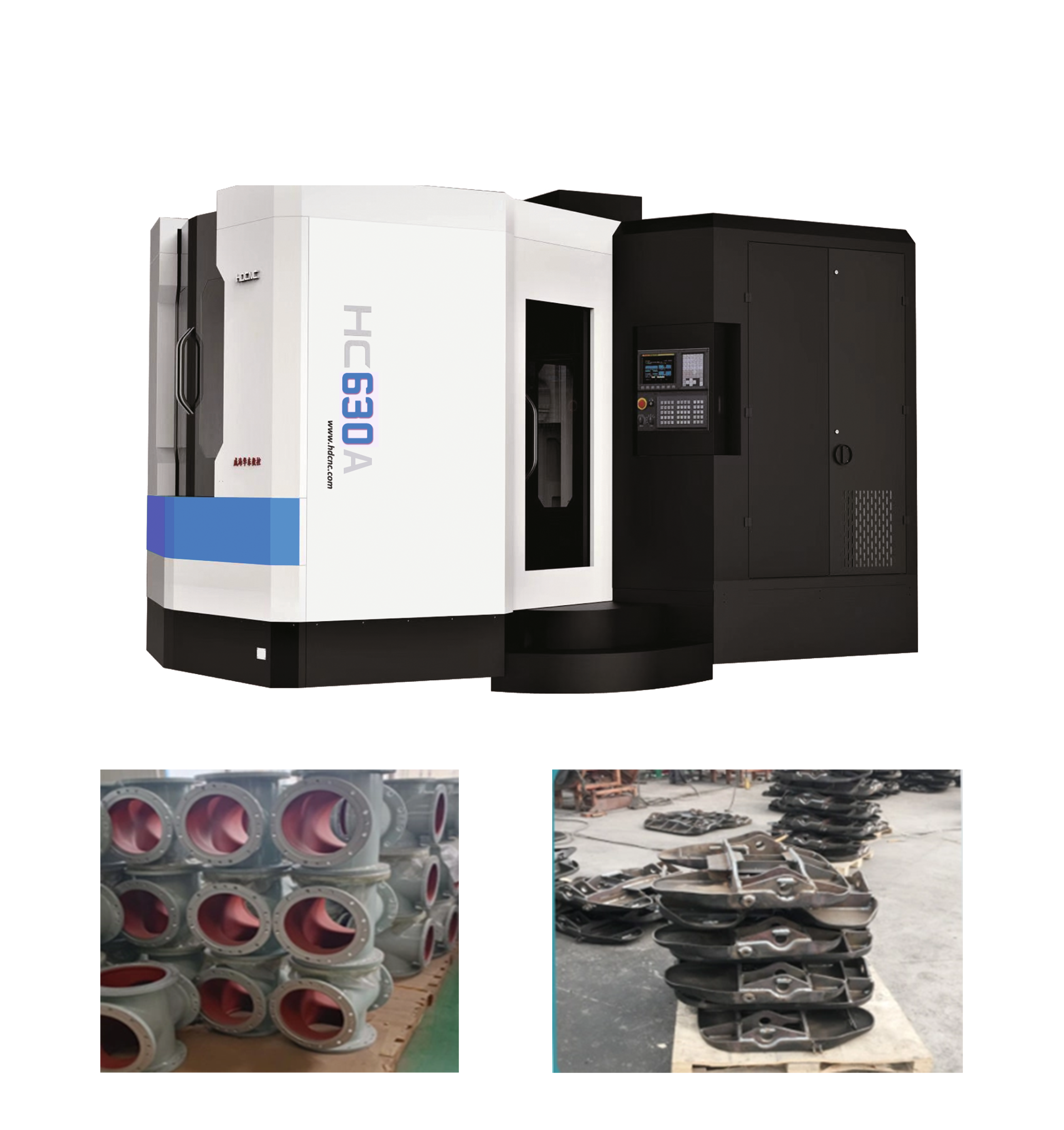

Horizontal Machining Center with Box Guideway

Column door type frame mechanism
High rigid spindle
High precision rotary table
Machine guide with heavy high precision roller guideway

Machine Application

Coal driving machine

Coal driving machine

Construction machinery

Construction machinery

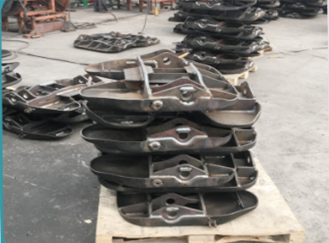

Heavy truck fittings

Heavy truck fittings

High voltage electrical

High voltage electrical

High voltage ultra high voltage substation

High voltage electrical

Petroleum machinery

Petroleum machinery

Standard Aaccessories

24 T ATC

Spindle air curtain dust control system

Workpiece cooling system

Equal division CNC rotary table

Automatic lubrication system

Spiral chip removal device

Chain plate type chip remover

Integral cover

Tool and toolbox

Foundation screw and leveling wedges

Optional Accessories

Siemens828D system 30/32/40 T ATC three axes grating ruler Oil Separator device
Tool setting Device ZF gear box Workpiece measuring device 0.001° rotary table

Machine parameters

HC500A HC630A HC800A
table size mm 500×600 630×630 800×800
max loading   weight kg 500 2000 3000
table dividing ° 1°×360/0.001 1°×360/0.001 1°×360/0.001
number-width-distance mm 6×14×80 5×18×125 5×22×160
XYZ travel mm 800/600/600 1000/800/900 1200/900/900
rapid   speed(XYZ) m/min 15/15/15 15/15/15/ 15/15/15
XYZ cutting   speed mm/min 1-5000 1-5000 1-5000
spindle center   to table surface mm 50-650 0-800 0-900
spindle nose   to table center mm 150-750 200-1100 220-1120
spindle speed rpm 6000 6000 6000
spindle power kw 11/15 15/18.5 18.5/22
tool holder   type
BT50 BT50 BT50
pull stud
BT50-45° BT50-45° BT50-45°
ATC capacity
24 24 24
tool change   time s 3.5 3.5 3.5
max tool   weight kg 25 25 25
max diameter   of tool mm Φ110/Φ220 Φ110/Φ220 Φ110/Φ220
airpressure Mpa 0.6-0.8 0.6-0.8 0.6-0.8
machine weight kg 10500 12500 13500
machine   overall size mm 3800×3000×3020 4300×3150×3800 4300×3150×3900


  • HC series horizontal machining center is on the basis of absorbing domestic and international advanced machine design concept to design and development of horizontal machining center.

  • This machine adopts large span guideway design, machine tool rigidity on the whole, carrying capacity is strong, one-time clamping can finish milling, boring, drilling, tapping and other processes more than rough and finish machining.

  • FANUC or Siemens system; rotary table, AC, spindle, rail, screw are Taiwan brands
