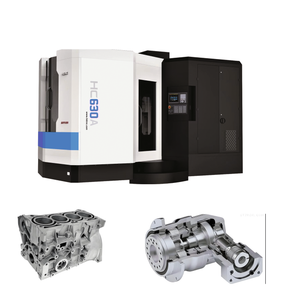

Horizontal Machining Center with APC

Availability:
Quantity:

Features

This series machine adopt T bed structure design, using high rigidity roller linear guideway, guideway span is large, the overall rigidity of the machine is good, strong bearing capacity; Equipped with high-precision rotary table, suitable for the box, machine base, column and other polyhedral parts processing, can achieve one time clamping to complete milling surface, boring, drilling, tapping and other processes of rough and fine processing, to ensure the accuracy of parts requirements. Double workable can greatly save the clamping time of the workpiece and improve the working efficiency of the machine.



Standard configuration
24 tool ATC
Spindle air curtain dust control system
Workpiece cooling system
Equal division CNC rotary table
Automatic lubrication system
Spiral chip removal device
Chain-plate type chip lifter
Integral shield
The toolkit
Anchor bolt and pad iron

Special configuration
32 Arm chian type ATC
40 Arm chian type ATC
Central outlet of spindle (equipped with high
pressure cooling device)
ZF gearbox drive
Spindle oil cooling device
Arbitrary indexing CNC rotary table
Scraper lift chip remover
3 axis linear scale
Tool detection device
Workpiece detection device
Door opening protection (door protection)
Portable chip air gun
Machine cleaning water tank
Simple oil and water separator


model
HMC500APCHMC6301APCHLC630SAPCHMC800APC
Column   travel(X axis)mm800105010501400
spindle   travel(Y axis)mm7509007501050
table travel(Z   axis)mm85010209001290
spindle taper   to tablemm100-950140-1160130-1030230-1520
spindle center   to table surfacemm100-850100-10000-75075-1125
X axis rapid   speedm/mim48362036
Y axis rapid   speedm/mim48362036
Z axis rapid   speedm/mim48202020
XYZ axis   cutting speedm/mim20201020
table sizemm500×500630×630630×700800×800
table no
2222
table deviding   type°1(0.001)1(0.001)1(0.001)1(0.001)
table max   loading weightkg50012009502000
T slot   no*width*distancemm14×5×10018×5×12518×5×12522×5×160
change times15162018
spindle taper   to table
ISO50ISO50ISO50ISO50
spindle motorkw11/1515/18.515/18.518.5/22
spindle speedrpm20-600020-600020-600020-6000
spindle max   torque(continous/30min)Nm140/191249/307249/307520/619
pull stud
MAS403 P50T-1MAS403 P50T-1MAS403 P50T-1MAS403 P50T-1
XYZ   positioning accuracymm0.010.010.0180.01
XYZ   repeatability positioning accuracymm0.0060.0080.010.008
B positioning   accuracy"4(15)4(15)-154(15)
B   repeatability positioning accuracy"1(6)1(6)41(6)
capacityT40/6040/6032/4040/60
max tool   diametermmΦ125/Φ250Φ125/Φ250Φ125/Φ250Φ125/Φ250
max tool   lengthmm400400300400
max tool   weightkg25251825
change times3.53.54.53.5
powerKW40504550
machine over   sizemm6700×4200×33507600×4200×36506500×4100×34508400×5000×3850
machine weightkg16000220001600028000
model
HMC500APCHMC6301APCHLC630SAPCHMC800APC
Column   travel(X axis)mm800105010501400
spindle   travel(Y axis)mm7509007501050
table travel(Z   axis)mm85010209001290
spindle taper   to tablemm100-950140-1160130-1030230-1520
spindle center   to table surfacemm100-850100-10000-75075-1125
X axis rapid   speedm/mim48362036
Y axis rapid   speedm/mim48362036
Z axis rapid   speedm/mim48202020
XYZ axis   cutting speedm/mim20201020
table sizemm500×500630×630630×700800×800
table no
2222
table deviding   type°1(0.001)1(0.001)1(0.001)1(0.001)
table max   loading weightkg50012009502000
T slot   no*width*distancemm14×5×10018×5×12518×5×12522×5×160
change times15162018
spindle taper   to table
ISO50ISO50ISO50ISO50
spindle motorkw11/1515/18.515/18.518.5/22
spindle speedrpm20-600020-600020-600020-6000
spindle max   torque(continous/30min)Nm140/191249/307249/307520/619
pull stud
MAS403 P50T-1MAS403 P50T-1MAS403 P50T-1MAS403 P50T-1
XYZ   positioning accuracymm0.010.010.0180.01
XYZ   repeatability positioning accuracymm0.0060.0080.010.008
B positioning   accuracy"4(15)4(15)-154(15)
B   repeatability positioning accuracy"1(6)1(6)41(6)
capacityT40/6040/6032/4040/60
max tool   diametermmΦ125/Φ250Φ125/Φ250Φ125/Φ250Φ125/Φ250
max tool   lengthmm400400300400
max tool   weightkg25251825
change times3.53.54.53.5
powerKW40504550
machine over   sizemm6700×4200×33507600×4200×36506500×4100×34508400×5000×3850
machine weightkg16000220001600028000
