Availability: | |
---|---|

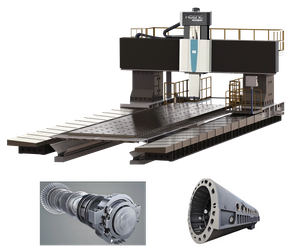

1. Gantry frame adopts four bilateral servo motors,electronic backlash elimmination and synchronous drive to ensure stable and reliable operation of column sliding.
2.Machine body with worktable integral structure,column beam(integral),transverse slide plate,vertical slide plate are made of high strength and high quality ball mill cast iron material,strong rigidity,good shock absorption.
3.Adopt imported high speed spindle,the highest speed is 20000rpm,built in cooling device,the accuracy is durable adn reliable.Optional AC swing angle milling head to acheive fixed axis machining of axis A and C.
4.HSK clamping cutter,high precision ,static and dynamic rigidity and can safely and efficiently transfer torque.
5.Three axis with higher rapid speed,can make more significant efficiency.
The machine adopts lightweight moving parts design,can realizze high-speed moving processing,suitable for high-precision ,multi-step,complex shape processing of plate,plate parts,shell parts,mold and other parts,can be clamped to complete milling,drilling,reaming,boring,tapping and three-dimensional surface and other multi-processing.
Siemens 828D system
Imported 20000rpm electric spindle
Spindle automatic constant temperature cooling circulation system
Automatic grease lubrication system or coordinate axes
Machine pneumatic system
Spindle taper air seal
Automatic chip converyor on both sides of the worktable
Cutting tool cooling system and large capacity water tank
Semi-closed cover
Door open switch
MPG
Tricolor working light
Electric cabinet air conditioner
Standard accessories and documents
Chain type chip conveyor.
Fanuc system,
Three axis full closed loop control,
Cooltant throught spindle,
Workpiece micro cooling system,
Full closed cover.
1. Gantry frame adopts four bilateral servo motors,electronic backlash elimmination and synchronous drive to ensure stable and reliable operation of column sliding.
2.Machine body with worktable integral structure,column beam(integral),transverse slide plate,vertical slide plate are made of high strength and high quality ball mill cast iron material,strong rigidity,good shock absorption.
3.Adopt imported high speed spindle,the highest speed is 20000rpm,built in cooling device,the accuracy is durable adn reliable.Optional AC swing angle milling head to acheive fixed axis machining of axis A and C.
4.HSK clamping cutter,high precision ,static and dynamic rigidity and can safely and efficiently transfer torque.
5.Three axis with higher rapid speed,can make more significant efficiency.
The machine adopts lightweight moving parts design,can realizze high-speed moving processing,suitable for high-precision ,multi-step,complex shape processing of plate,plate parts,shell parts,mold and other parts,can be clamped to complete milling,drilling,reaming,boring,tapping and three-dimensional surface and other multi-processing.
Siemens 828D system
Imported 20000rpm electric spindle
Spindle automatic constant temperature cooling circulation system
Automatic grease lubrication system or coordinate axes
Machine pneumatic system
Spindle taper air seal
Automatic chip converyor on both sides of the worktable
Cutting tool cooling system and large capacity water tank
Semi-closed cover
Door open switch
MPG
Tricolor working light
Electric cabinet air conditioner
Standard accessories and documents
Chain type chip conveyor.
Fanuc system,
Three axis full closed loop control,
Cooltant throught spindle,
Workpiece micro cooling system,
Full closed cover.
Description | Unit | HGM2030/HGM2030AC |
Processing range | ||
Gantry effective width | mm | 2050 |
X Travel | mm | 3000 |
Y Travel | mm | 2000 |
Z Travel | mm | 700 |
Distance from the vertical end face of the spindle to the working table | mm | 50-750 |
Distance from the horizontal center of the spindle to the working table | mm | 312-1012 |
Table | ||
Table size(W*L) | mm | 2000*3000 |
Max loading | T | 6T |
Column width | mm | 2050 |
Table T-slot | r/min | 12-18*250 |
A/C head | ||
C axis rotation range | ° | ±180° |
A axis rotation range | ° | ±90° |
Vertical head spindle speed range | Rpm | 10-24000 |
spindle torque | N.m | 19/21 |
Spindle taper | HSK-A63 | |
Feed | ||
Range of cutting feed speed | m/min | 10-20 |
X axis rapid speed | m/min | 30 |
Y axis rapid speed | m/min | 40 |
Z axis rapid speed | m/min | 36 |
Accuracy | ||
X-axis positioning accuracy (semi-closed loop) | mm | 0.045 |
Y axis positioning accuracy (semi-closed loop) | mm | 0.035 |
Z axis positioning accuracy (semi-closed loop) | mm | 0.025 |
X-axis repeated positioning accuracy (semi-closed loop) | mm | 0.025 |
Y-axis repeated positioning accuracy (semi-closed loop) | mm | 0.02 |
Z-axis repeated positioning accuracy (semi-closed loop) | mm | 0.015 |
Numercial control system | SIEMENS | |
Others | ||
Machine size(L*W*H) | mm | 7000*4600*4000 |
Machine weight | T | 25 |
