VT16/20/25/32/40 VM16/20/25/32 VMG16/20/25/32
HDCNC
Structural features:
1.The X/Z axis adopt constant-flow closed hydrostatic guides, featuring excellent dynamic performance, high motion rigidity, and capability to with stand heavy cutting.

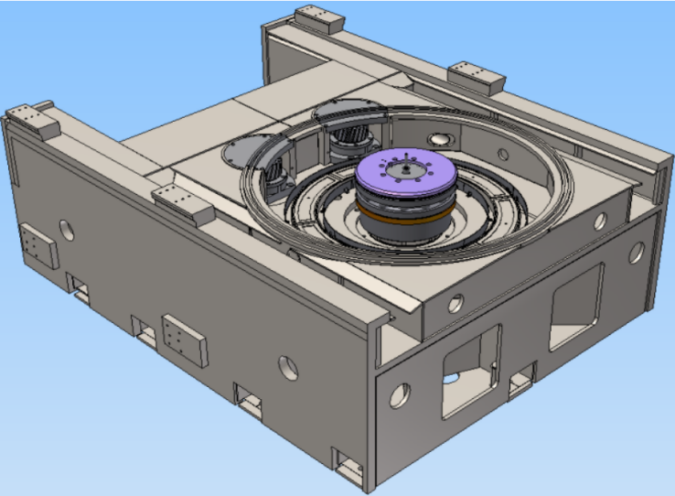

2.The worktable is radially centered by high-precision double-row cylindrical roller bearings and axially supported by constant-flow closed hydrostatic guides, ensuring large load capacity, high rotational accuracy, reliable operation, and easy adjustment & maintenance.

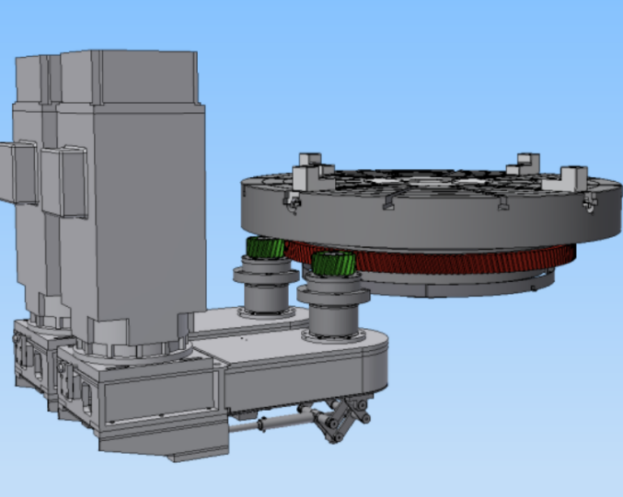

3.The rotary worktable is driven by multiple servo motors: during turning, all motors rotate in the same direction to achieve power superposition, guaranteeing high-torque and high-power cutting; during milling, master-slave control of multiple motors is adopted to realize electronic backlash elimination, ensuring high rotational positioning accuracy.
4.The crossbeam feeding system adopts a dual-motor, dual-ball screw, and dual-grating ruler detection structure, ensuring synchronization and positional accuracy of crossbeam movement.
Application scope:

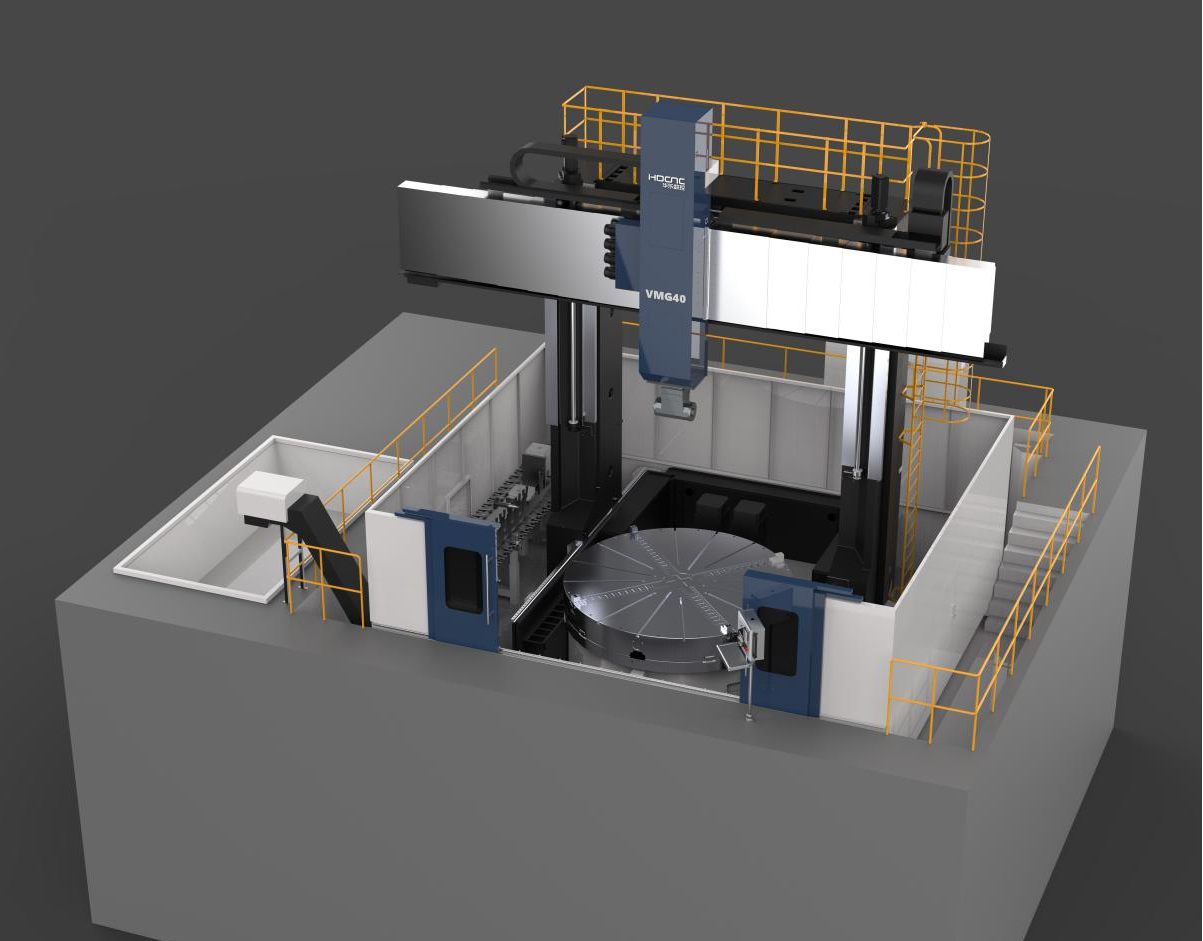

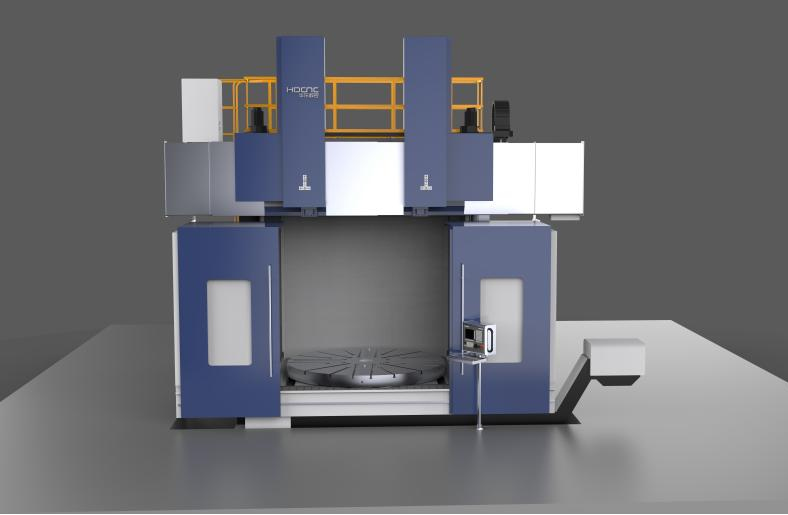

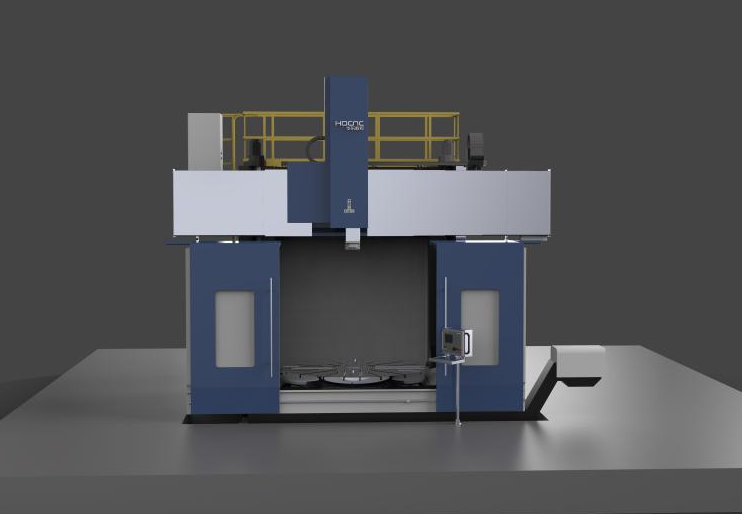

VT/VM/VMG series of small and medium-sized CNC double-column vertical lathes, turning-milling machines and gantry moving turning-milling compound machines are widely used in industries such as aerospace, valves, energy, construction machinery, and general mechanical manufacturing.
Technical Specifications:
Item | Unit | VT16 | VT20 | VT25 | VT32 | VT40 |
VM16 | VM20 | VM25 | VM32 | VM40 | ||
VMG16 | VMG20 | VMG25 | VMG32 | VMG40 | ||
| mm | 1250 | 1800 | 2250 | 2500 | 3500 |
| mm | 1600 | 2000 | 2500 | 3200 | 4000 |
| mm | 1600 | 2000 | 2500 | 2500 | 3000 |
| ton | 15 | 20 | 25 | 30 | 50 |
| kW | 74 | 74 | 60 | 88 | 120 |
| rpm | 1-300 | 0.8-250 | 0.6-200 | 0.5-160 | 0.5-125 |
| rpm | 0-8 | 0-7 | 0-6 | 0-5 | 0-4 |
| kNm | 32 | 40 | 50 | 63 | 100 |
| mm | 240*280 | 240*280 | 240*280 | 280*320 | 280*320 |
| mm | ±800 | ±1000 | ±1250 | ±1600 | ±2000 |
Max.vertical travel of the beam | mm | 1000 | 1900 | 1900 | 1900 | 2500 |
Tool rest Horizontal travel | mm | ±1000 | ±1200 | ±1500 | ±1700 | ±2200 |
| mm | 1400 | 1400 | 1400 | 1400 | 2200 |
| kN | 50 | 50 | 50 | 63 | 63 |
| ISO | 50 | ||||
| kW | 22/26 | 22/26 | 22/26 | 30/36 | 30/36 |
| Nm | 770/910 | 770/910 | 770/910 | 1050/1260 | 1050/1260 |
| rpm | 2.5-3500 | 2.5-3500 | 2.5-3500 | 2.5-3500 | 2.5-2500 |
| DIN/DGQ 3441 | |||||
| Heidenhain/Fagor | |||||
|
| |||||
