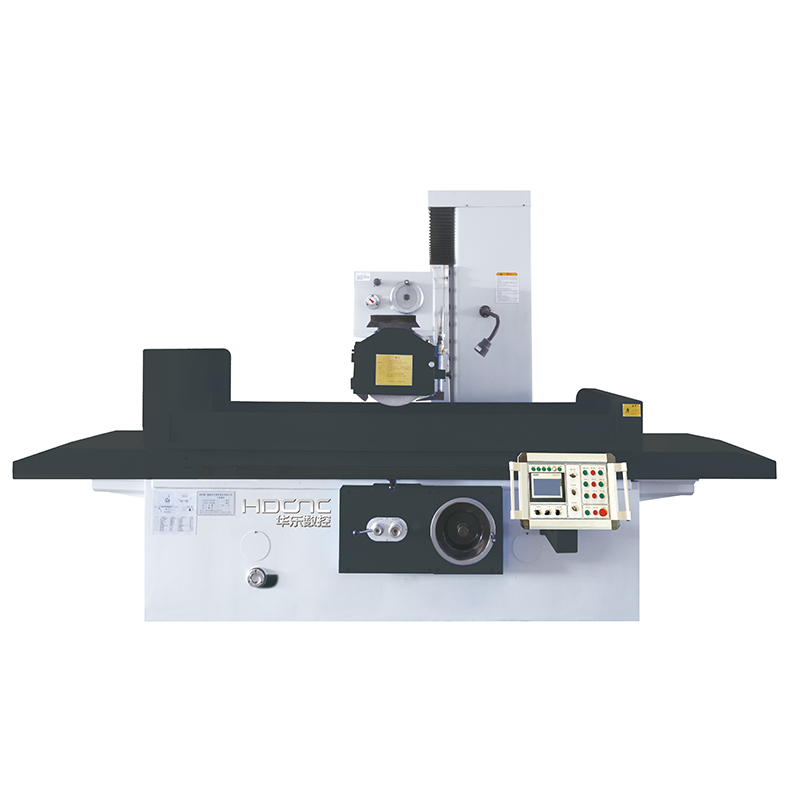

Features
High strength cast iron foundation
Machine transverse moves hydraulically or manually;
Longitudinal moves hydraulically with variable speed
Vertical moves manually or motor drives
The machine is suitable for heavy duty grinding with high grinding efficiency
Forced lubrication guideway, prolong the service life of machine.
Application
The machine uses the periphery of the grinding wheel to grind all kinds of workpiece planes made of steel, cast iron and non-ferrous metals, and is suitable for all kinds of machining workshops and machine repair workshops.
Standard Accessories
Cooltant system, working light, leveling wedges, foundation screw, wheel flange, wheel balance arbor,, magnetic chuck, standard wheel, operation manual,wheel dressing base.
Optional Accessories
diamond pen
magetic separator
wheel balance stand
Specifications
Description | Unit | M7130A | |
Table size(L*W) | mm | 1000*300 | |
Max.grinding size of workpiece(L*W) | mm | 1000*300*400 | |
Longitudinal travel | mm | 200-1100 | |
Table longitudinal speed | mm/min | 3-27 | |
T-slot of table(No.*width) | mm | 3*18 | |
Distance from spindle center to table surface | mm | 600 | |
Max. loading of table(including magentic chuck) | 470 | ||
Magnetic chuck size | mm | 300*1000 | |
Wheel size(OD*Width*ID) | mm | 400*40*127 | |
Spindle speed(stepless) | r/min | 1440 | |
Worktable speed | m/min | 3-27 | |
Wheelhead transverse moving | Continuous feed rate | m/min | 0.5-4.5 |
Intermittent feed | mm/t | 3-30 | |
Wheel vertical moving | Rapid speed | mm/min | 400 |
Handwheel feed per gra. | Mm/gra. | 0.005 | |
Handwheel feed per rev. | Mm/rev. | 0.645 | |
Spindle motor | KW | 7.5 | |
Hydraulic motor | KW | 3 | |
Cooltant motor | KW | 0.125 | |
Elevating motor | KW | 0.37 | |
Total rated power | KW | 11 | |
Surface roughness | μm | Ra0.63 | |
Gross weight | kg | 3500 | |
Package dimension(L*W*H) | mm | 2840*1710*2130 | |
