| Quantity: | |
|---|---|

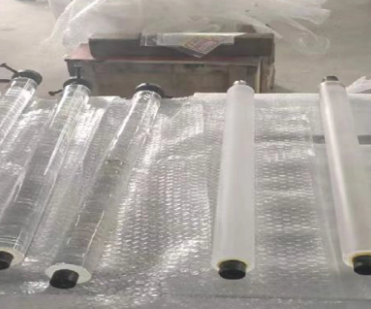

Glass industry

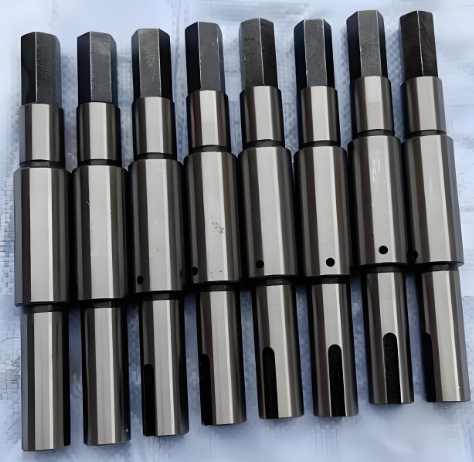

Oil hydraulic industry

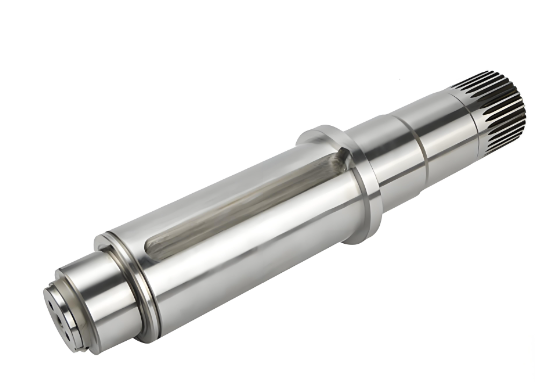

Reducer industry

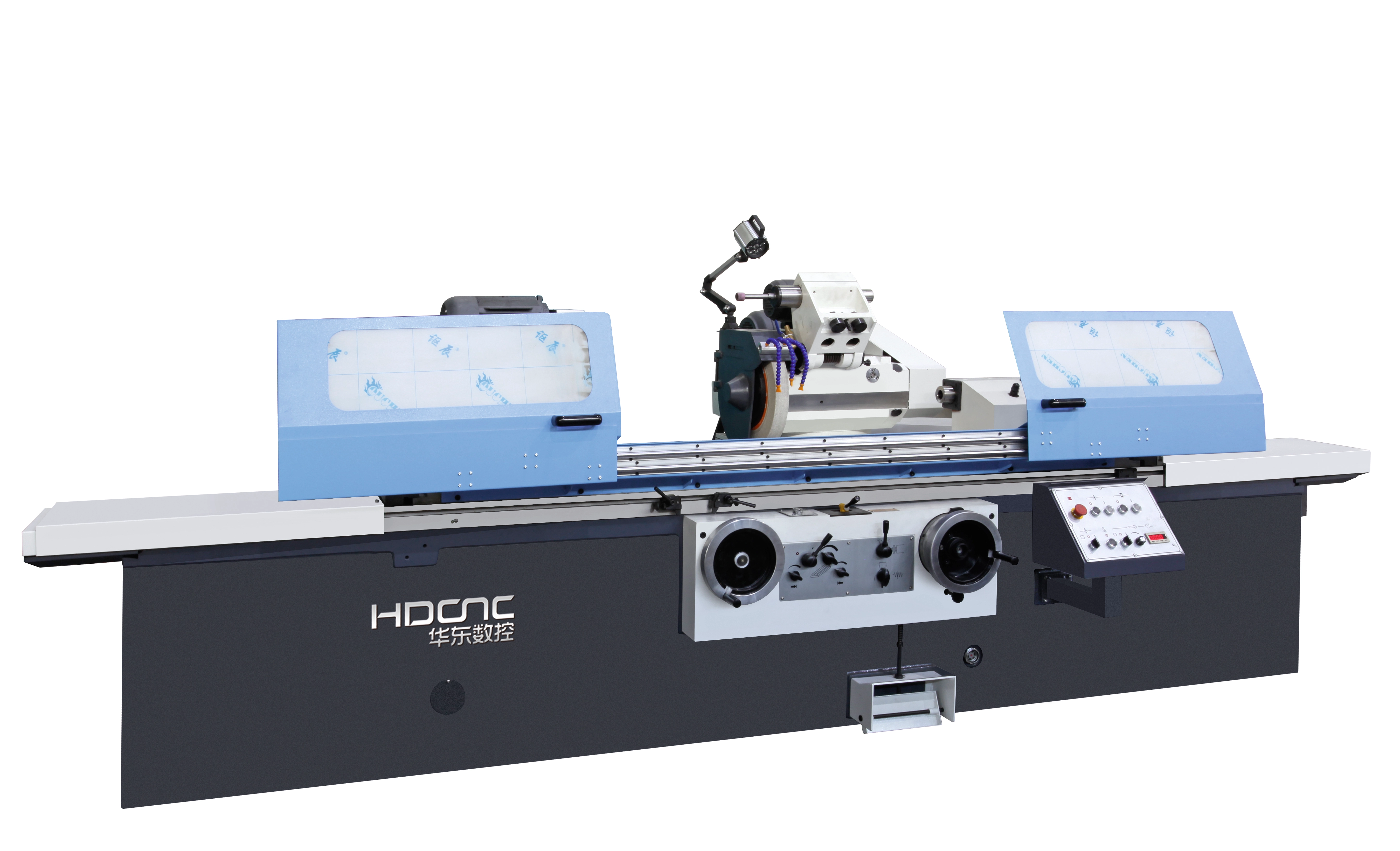

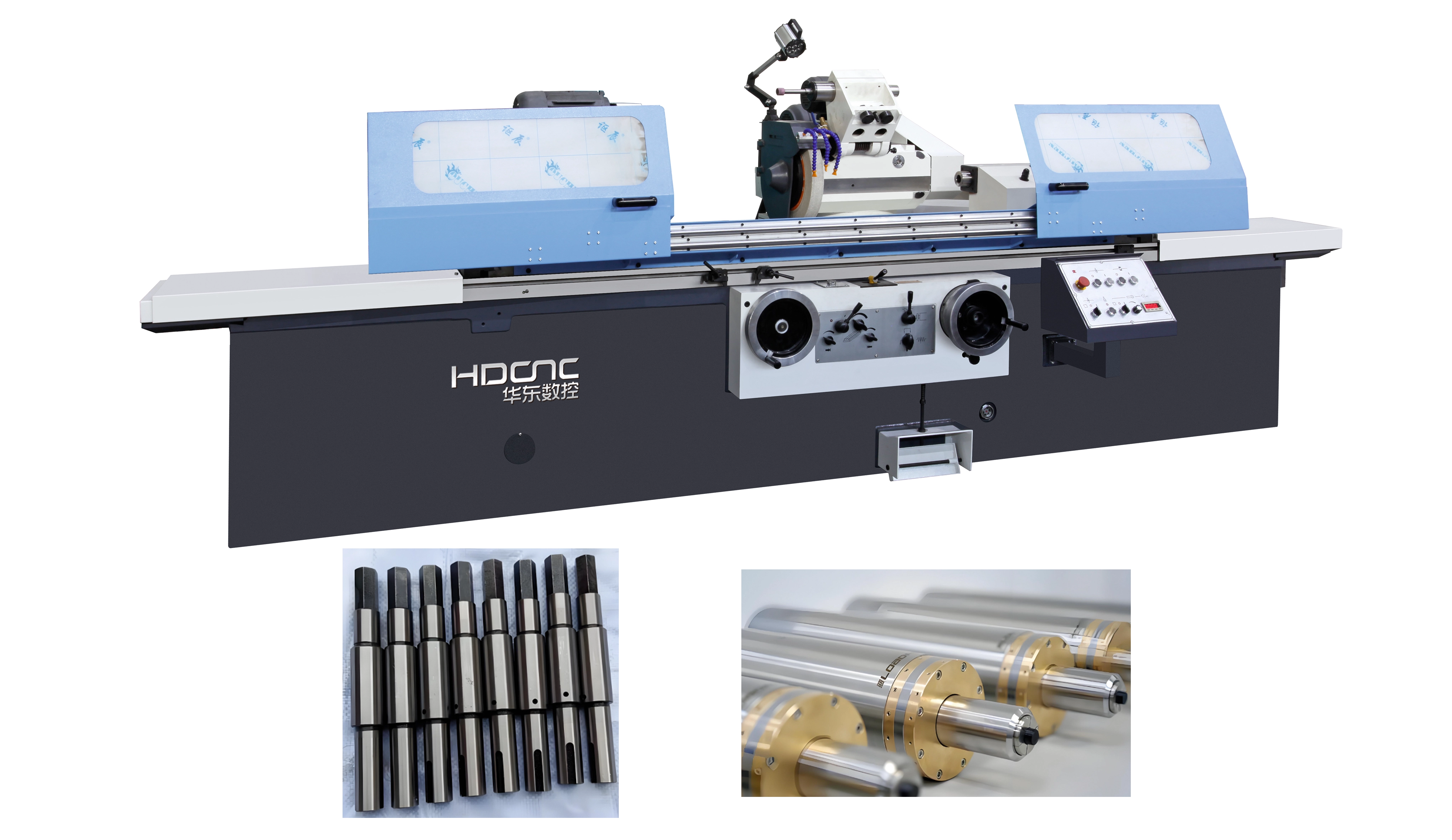

| Cooltant tank | pen steady rest | wheel peripheral dresser | measuring plate |
| driving dog | leveling wedges, | wheel flange | wheel extractor tools |
| standard wheel | balancing arbor | belt and waterproof | centers |
| working light |
wheel balancing stand | magnetic separator | magnetic separator and paper filter |
diamond pen | two axes DRO | radius wheel dresser |
closed steady rest | end face wheel dresser |
Description | Unit | M1332*1000 | M1332*1500 |
General Capacity | |||
Max.length grinding(O.D) | mm | 1000 | 1500 |
Center height | mm | 180 | |
Dia.grinding(O.D) | mm | 8-320 | |
Max. weight of workpiece | kg | 150 | |
Workhead | |||
Center taper | MT | 5 | |
Spindle speed(stepless) | r/min | 19-190 | |
Wheelhead | |||
Max. dimension of wheel(O.D*W*I.D) | mm | 600*75*305 | |
Wheel peripheral velocity | m/s | 35 | |
Wheelhead feed per. circle of handwheel | mm | Rough :2 Fine:0.5 | |
Wheelhead feed per. graduation of handwheel | mm | Rough:0.01 Fine:0.0025 | |
Worktable | |||
Max. swiveling angle of table | ° | 3 | |
° | 7 | 6 | |
Longitudinal speed range of table | mm/min | 0.1-4 | |
Tailstock | |||
Center taper | MT | 4 | |
Quill manually travel | mm | 30 | |
Motor | |||
Wheelhead motor power | Kw | 11 | |
Workhead motor power | Kw | 1.5 | |
Machining Accuracy | |||
Roundness | μm | 2.5 | |
Cylindricity | μm | 8 | |
Roughness | μm | Ra 0.2 | |
Machine | |||
Weight | kg | 4000 | 4800 |
Package dimension(L*W*H) | cm | 326*200*205 | 426*200*205 |
Description | Unit | M1332H*2000 | M1332H*3000 | |
General Capacity | ||||
Max.length grinding(O.D) | mm | 2000 | 3000 | |
Center height | mm | 180 | ||
Dia.grinding(O.D) | mm | 8-320 | ||
Max. weight of workpiece | kg | 500 | ||
Workhead | ||||
Center taper | MT | 5 | ||
Spindle speed(stepless) | r/min | 10-100 | ||
Wheelhead | ||||
Max. dimension of wheel(O.D*W*I.D) | mm | 600*75*305 | ||
Wheel peripheral velocity | m/s | 35 | ||
Wheelhead feed per. circle of handwheel | mm | Rough :2 Fine:0.5 | ||
Wheelhead feed per. graduation of handwheel | mm | Rough:0.01 Fine:0.0025 | ||
Worktable | ||||
Max. swiveling angle of table | ° | 3 | ||
° | 5 | 3 | ||
Longitudinal speed range of table | mm/min | 0.1-3 | ||
Tailstock | ||||
Center taper | MT | 5 | ||
Quill manually travel | mm | 30 | ||
Motor | ||||
Wheelhead motor power | Kw | 11 | ||
Workhead motor power | Kw | 3 | ||
Machining Accuracy | ||||
Roundness | μm | 3 | ||
Cylindricity | μm | 8 | ||
Roughness | μm | Ra 0.32 | ||
Machine | ||||
Weight | kg | 6000 | 7500 | |
Package dimension(L*W*H) | cm | 580*200*205 | 780*200*205 | |
Description | Unit | M1350 |
General Capacity | ||
Max.length grinding(O.D) | mm | 1500/2000/3000/4000 |
Center height | mm | 270 |
Dia.grinding(O.D) | mm | 25-500 |
Max. weight of workpiece | kg | 2000 |
Workhead | ||
Center taper | MT | 6 |
Spindle speed(stepless) | r/min | 10-100 |
Wheelhead | ||
Max. dimension of wheel(O.D*W*I.D) | mm | 750*75*305 |
Wheel peripheral velocity | m/s | 35 |
Wheelhead feed per. circle of handwheel | mm | Rough :4 Fine:0.5 |
Wheelhead feed per. graduation of handwheel | mm | Rough:0.02 Fine:0.0025 |
Worktable | ||
Max. swiveling angle of table | ° | 3(1500) 2(2000) 2(3000) 1(4000) |
° | 6(1500) 5(2000) 3(3000) 2(4000) | |
Longitudinal speed range of table | mm/min | 0.1-3 |
Tailstock | ||
Center taper | MT | 6 |
Quill manually travel | mm | 70 |
Motor | ||
Wheelhead motor power | Kw | 15 |
Workhead motor power | Kw | 4 |
Machining Accuracy | ||
Roundness | μm | 2.5(1500) 3(2000/3000/4000) |
Cylindricity | μm | 8(1500/(2000) 8(3000) 12(4000) |
Roughness | μm | Ra 0.32 |
Machine | ||
Weight | kg | 10000/11000/12000/17000 |
Package dimension(L*W*H) | cm | 543*225*205 583*225*205 796*225*210 996*225*210 |
Description | Unit | M1363 |
General Capacity | ||
Max.length grinding(O.D) | mm | 2000/3000/4000/5000 |
Center height | mm | 370 |
Dia.grinding(O.D) | mm | 30-630 |
Max. weight of workpiece | kg | 3000 |
Workhead | ||
Center taper | MT | Metric 80# |
Spindle speed(stepless) | r/min | 6-60 |
Wheelhead | ||
Max. dimension of wheel(O.D*W*I.D) | mm | 750*75*305 |
Wheel peripheral velocity | m/s | 35 |
Wheelhead feed per. circle of handwheel | mm | Rough :4 Fine:0.5 |
Wheelhead feed per. graduation of handwheel | mm | Rough:0.02 Fine:0.0025 |
Worktable | ||
Max. swiveling angle of table | ° | 2(2000) 1(3000/4000/5000) |
° | 4(2000) 3(3000) 2(4000) 1.5(5000) | |
Longitudinal speed range of table | mm/min | 0.1-2.5 |
Tailstock | ||
Center taper | MT | Metric 80# |
Quill manually travel | mm | 70 |
Motor | ||
Wheelhead motor power | Kw | 22 |
Workhead motor power | Kw | 15 |
Machining Accuracy | ||
Roundness | μm | 3 |
Cylindricity | μm | 8(2000/3000) 12(4000/5000) |
Roughness | μm | Ra 0.32 |
Machine | ||
Weight | T | 18(2000) 22(3000) 23(4000) 26(5000) |
Package dimension(L*W*H) | cm | 720*240*226(2000) 876*240*226(3000) 1100*240*226(4000) 1270*240*226(5000) |
Description | Unit | MQ1380A |
General Capacity | ||
Max.length grinding(O.D) | mm | 3000/4000/5000 |
Center height | mm | 500 |
Dia.grinding(O.D) | mm | 50-800 |
Max. weight of workpiece | kg | 3000 |
Workhead | ||
Center taper | MT | Metric 80# |
Spindle speed(stepless) | r/min | 5-50 |
Wheelhead | ||
Max. dimension of wheel(O.D*W*I.D) | mm | 900*75*305 |
Wheel peripheral velocity | m/s | 35 |
Wheelhead feed per. circle of handwheel | mm | Rough :4 Fine:0.5 |
Wheelhead feed per. graduation of handwheel | mm | Rough:0.02 Fine:0.0025 |
Worktable | ||
Max. swiveling angle of table | ° | 1 |
° | 3(3000) 2(4000) 1.5(5000) | |
Longitudinal speed range of table | mm/min | 0.1-2.5 |
Tailstock | ||
Center taper | MT | Metric 80# |
Quill manually travel | mm | 70 |
Motor | ||
Wheelhead motor power | Kw | 22 |
Workhead motor power | Kw | 15 |
Machining Accuracy | ||
Roundness | μm | 3 |
Cylindricity | μm | 8(3000) 12(4000/5000) |
Roughness | μm | Ra 0.32 |
Machine | ||
Weight | T | 22(3000) 23(4000) 26(5000) |
Package dimension(L*W*H) | cm | 876*240*230(3000) 1100*240*230(4000) 1270*240*230(5000) |
table travels on one V,one flat guideway,after high precision grade hand scraping, so that the whole series of products have high precision and high stability.
The front and rear feed guide rail of grinding wheel can choose roller or linear guide structure
Stepless speed workhead rotates 90°by CCW
M1350/M1363 series worktable and grinding wheel guide rail adopts high stable hydrostatic guide rail,high rigid dynamic and static pressure spindle.
Universal type workhead can be adjusted at any angle within 90 degrees CW to adopt to chuck grinding conical workpiece.
machine table swivels for easy taper grinding
hydraulic and manual controlled tailstock with foot switch
Advanced Hydrostatic Lubrication System

Glass industry
Oil hydraulic industry
Reducer industry
| Cooltant tank | pen steady rest | wheel peripheral dresser | measuring plate |
| driving dog | leveling wedges, | wheel flange | wheel extractor tools |
| standard wheel | balancing arbor | belt and waterproof | centers |
| working light |
wheel balancing stand | magnetic separator | magnetic separator and paper filter |
diamond pen | two axes DRO | radius wheel dresser |
closed steady rest | end face wheel dresser |
Description | Unit | M1332*1000 | M1332*1500 |
General Capacity | |||
Max.length grinding(O.D) | mm | 1000 | 1500 |
Center height | mm | 180 | |
Dia.grinding(O.D) | mm | 8-320 | |
Max. weight of workpiece | kg | 150 | |
Workhead | |||
Center taper | MT | 5 | |
Spindle speed(stepless) | r/min | 19-190 | |
Wheelhead | |||
Max. dimension of wheel(O.D*W*I.D) | mm | 600*75*305 | |
Wheel peripheral velocity | m/s | 35 | |
Wheelhead feed per. circle of handwheel | mm | Rough :2 Fine:0.5 | |
Wheelhead feed per. graduation of handwheel | mm | Rough:0.01 Fine:0.0025 | |
Worktable | |||
Max. swiveling angle of table | ° | 3 | |
° | 7 | 6 | |
Longitudinal speed range of table | mm/min | 0.1-4 | |
Tailstock | |||
Center taper | MT | 4 | |
Quill manually travel | mm | 30 | |
Motor | |||
Wheelhead motor power | Kw | 11 | |
Workhead motor power | Kw | 1.5 | |
Machining Accuracy | |||
Roundness | μm | 2.5 | |
Cylindricity | μm | 8 | |
Roughness | μm | Ra 0.2 | |
Machine | |||
Weight | kg | 4000 | 4800 |
Package dimension(L*W*H) | cm | 326*200*205 | 426*200*205 |
Description | Unit | M1332H*2000 | M1332H*3000 | |
General Capacity | ||||
Max.length grinding(O.D) | mm | 2000 | 3000 | |
Center height | mm | 180 | ||
Dia.grinding(O.D) | mm | 8-320 | ||
Max. weight of workpiece | kg | 500 | ||
Workhead | ||||
Center taper | MT | 5 | ||
Spindle speed(stepless) | r/min | 10-100 | ||
Wheelhead | ||||
Max. dimension of wheel(O.D*W*I.D) | mm | 600*75*305 | ||
Wheel peripheral velocity | m/s | 35 | ||
Wheelhead feed per. circle of handwheel | mm | Rough :2 Fine:0.5 | ||
Wheelhead feed per. graduation of handwheel | mm | Rough:0.01 Fine:0.0025 | ||
Worktable | ||||
Max. swiveling angle of table | ° | 3 | ||
° | 5 | 3 | ||
Longitudinal speed range of table | mm/min | 0.1-3 | ||
Tailstock | ||||
Center taper | MT | 5 | ||
Quill manually travel | mm | 30 | ||
Motor | ||||
Wheelhead motor power | Kw | 11 | ||
Workhead motor power | Kw | 3 | ||
Machining Accuracy | ||||
Roundness | μm | 3 | ||
Cylindricity | μm | 8 | ||
Roughness | μm | Ra 0.32 | ||
Machine | ||||
Weight | kg | 6000 | 7500 | |
Package dimension(L*W*H) | cm | 580*200*205 | 780*200*205 | |
Description | Unit | M1350 |
General Capacity | ||
Max.length grinding(O.D) | mm | 1500/2000/3000/4000 |
Center height | mm | 270 |
Dia.grinding(O.D) | mm | 25-500 |
Max. weight of workpiece | kg | 2000 |
Workhead | ||
Center taper | MT | 6 |
Spindle speed(stepless) | r/min | 10-100 |
Wheelhead | ||
Max. dimension of wheel(O.D*W*I.D) | mm | 750*75*305 |
Wheel peripheral velocity | m/s | 35 |
Wheelhead feed per. circle of handwheel | mm | Rough :4 Fine:0.5 |
Wheelhead feed per. graduation of handwheel | mm | Rough:0.02 Fine:0.0025 |
Worktable | ||
Max. swiveling angle of table | ° | 3(1500) 2(2000) 2(3000) 1(4000) |
° | 6(1500) 5(2000) 3(3000) 2(4000) | |
Longitudinal speed range of table | mm/min | 0.1-3 |
Tailstock | ||
Center taper | MT | 6 |
Quill manually travel | mm | 70 |
Motor | ||
Wheelhead motor power | Kw | 15 |
Workhead motor power | Kw | 4 |
Machining Accuracy | ||
Roundness | μm | 2.5(1500) 3(2000/3000/4000) |
Cylindricity | μm | 8(1500/(2000) 8(3000) 12(4000) |
Roughness | μm | Ra 0.32 |
Machine | ||
Weight | kg | 10000/11000/12000/17000 |
Package dimension(L*W*H) | cm | 543*225*205 583*225*205 796*225*210 996*225*210 |
Description | Unit | M1363 |
General Capacity | ||
Max.length grinding(O.D) | mm | 2000/3000/4000/5000 |
Center height | mm | 370 |
Dia.grinding(O.D) | mm | 30-630 |
Max. weight of workpiece | kg | 3000 |
Workhead | ||
Center taper | MT | Metric 80# |
Spindle speed(stepless) | r/min | 6-60 |
Wheelhead | ||
Max. dimension of wheel(O.D*W*I.D) | mm | 750*75*305 |
Wheel peripheral velocity | m/s | 35 |
Wheelhead feed per. circle of handwheel | mm | Rough :4 Fine:0.5 |
Wheelhead feed per. graduation of handwheel | mm | Rough:0.02 Fine:0.0025 |
Worktable | ||
Max. swiveling angle of table | ° | 2(2000) 1(3000/4000/5000) |
° | 4(2000) 3(3000) 2(4000) 1.5(5000) | |
Longitudinal speed range of table | mm/min | 0.1-2.5 |
Tailstock | ||
Center taper | MT | Metric 80# |
Quill manually travel | mm | 70 |
Motor | ||
Wheelhead motor power | Kw | 22 |
Workhead motor power | Kw | 15 |
Machining Accuracy | ||
Roundness | μm | 3 |
Cylindricity | μm | 8(2000/3000) 12(4000/5000) |
Roughness | μm | Ra 0.32 |
Machine | ||
Weight | T | 18(2000) 22(3000) 23(4000) 26(5000) |
Package dimension(L*W*H) | cm | 720*240*226(2000) 876*240*226(3000) 1100*240*226(4000) 1270*240*226(5000) |
Description | Unit | MQ1380A |
General Capacity | ||
Max.length grinding(O.D) | mm | 3000/4000/5000 |
Center height | mm | 500 |
Dia.grinding(O.D) | mm | 50-800 |
Max. weight of workpiece | kg | 3000 |
Workhead | ||
Center taper | MT | Metric 80# |
Spindle speed(stepless) | r/min | 5-50 |
Wheelhead | ||
Max. dimension of wheel(O.D*W*I.D) | mm | 900*75*305 |
Wheel peripheral velocity | m/s | 35 |
Wheelhead feed per. circle of handwheel | mm | Rough :4 Fine:0.5 |
Wheelhead feed per. graduation of handwheel | mm | Rough:0.02 Fine:0.0025 |
Worktable | ||
Max. swiveling angle of table | ° | 1 |
° | 3(3000) 2(4000) 1.5(5000) | |
Longitudinal speed range of table | mm/min | 0.1-2.5 |
Tailstock | ||
Center taper | MT | Metric 80# |
Quill manually travel | mm | 70 |
Motor | ||
Wheelhead motor power | Kw | 22 |
Workhead motor power | Kw | 15 |
Machining Accuracy | ||
Roundness | μm | 3 |
Cylindricity | μm | 8(3000) 12(4000/5000) |
Roughness | μm | Ra 0.32 |
Machine | ||
Weight | T | 22(3000) 23(4000) 26(5000) |
Package dimension(L*W*H) | cm | 876*240*230(3000) 1100*240*230(4000) 1270*240*230(5000) |
table travels on one V,one flat guideway,after high precision grade hand scraping, so that the whole series of products have high precision and high stability.
The front and rear feed guide rail of grinding wheel can choose roller or linear guide structure
Stepless speed workhead rotates 90°by CCW
M1350/M1363 series worktable and grinding wheel guide rail adopts high stable hydrostatic guide rail,high rigid dynamic and static pressure spindle.
Universal type workhead can be adjusted at any angle within 90 degrees CW to adopt to chuck grinding conical workpiece.
machine table swivels for easy taper grinding
hydraulic and manual controlled tailstock with foot switch
Advanced Hydrostatic Lubrication System
