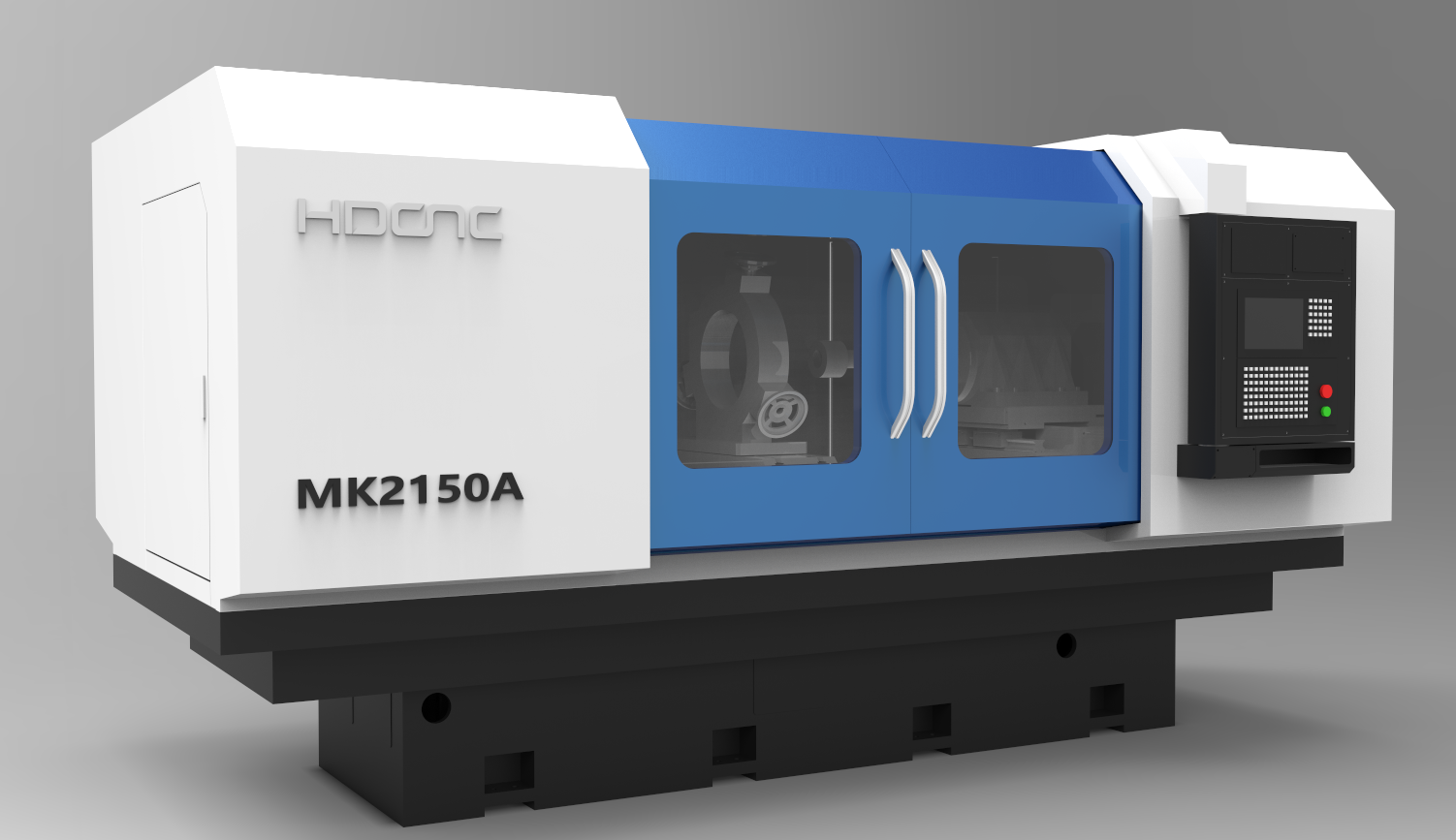

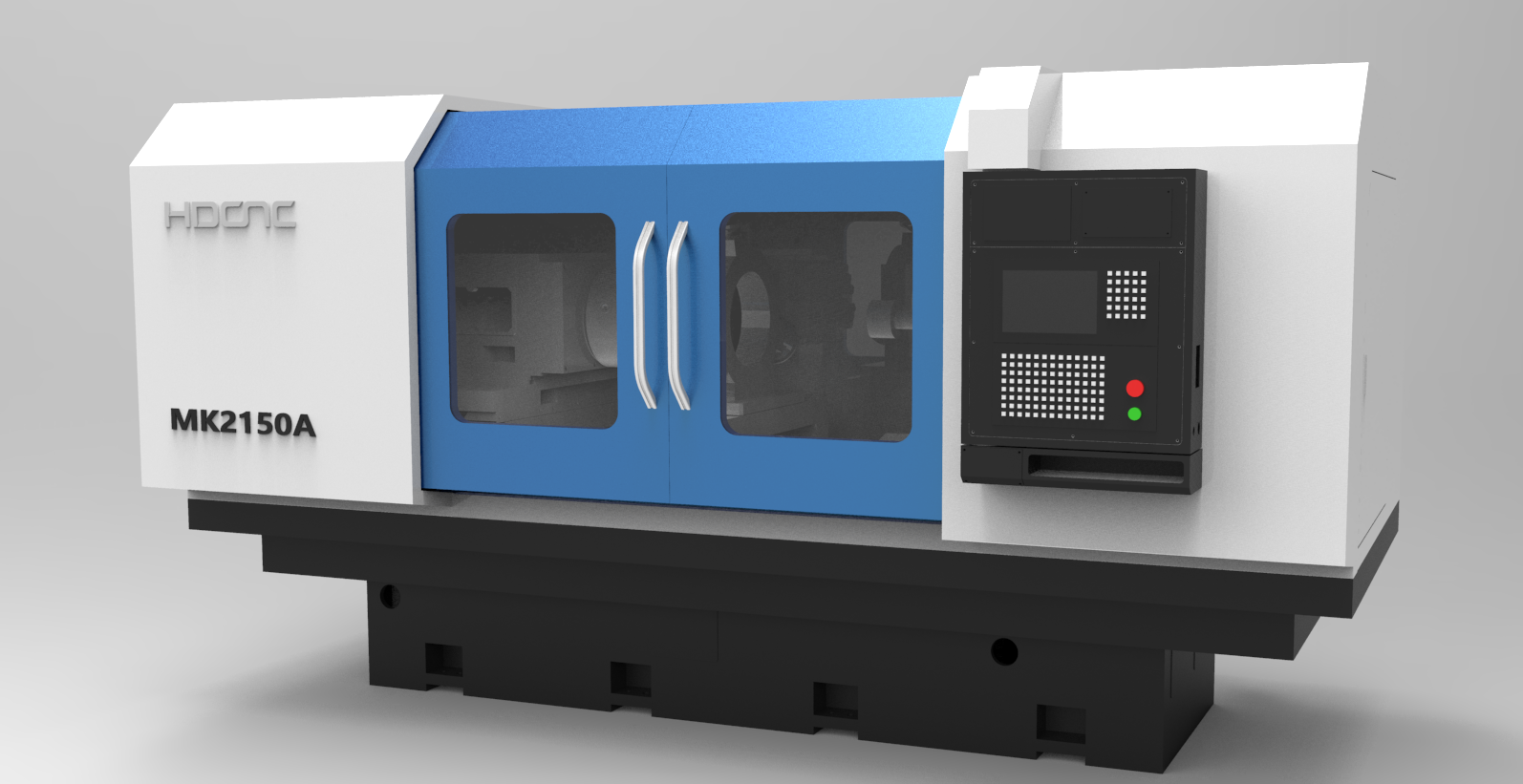

MK2130/2150A
HDCNC
Intruduction:

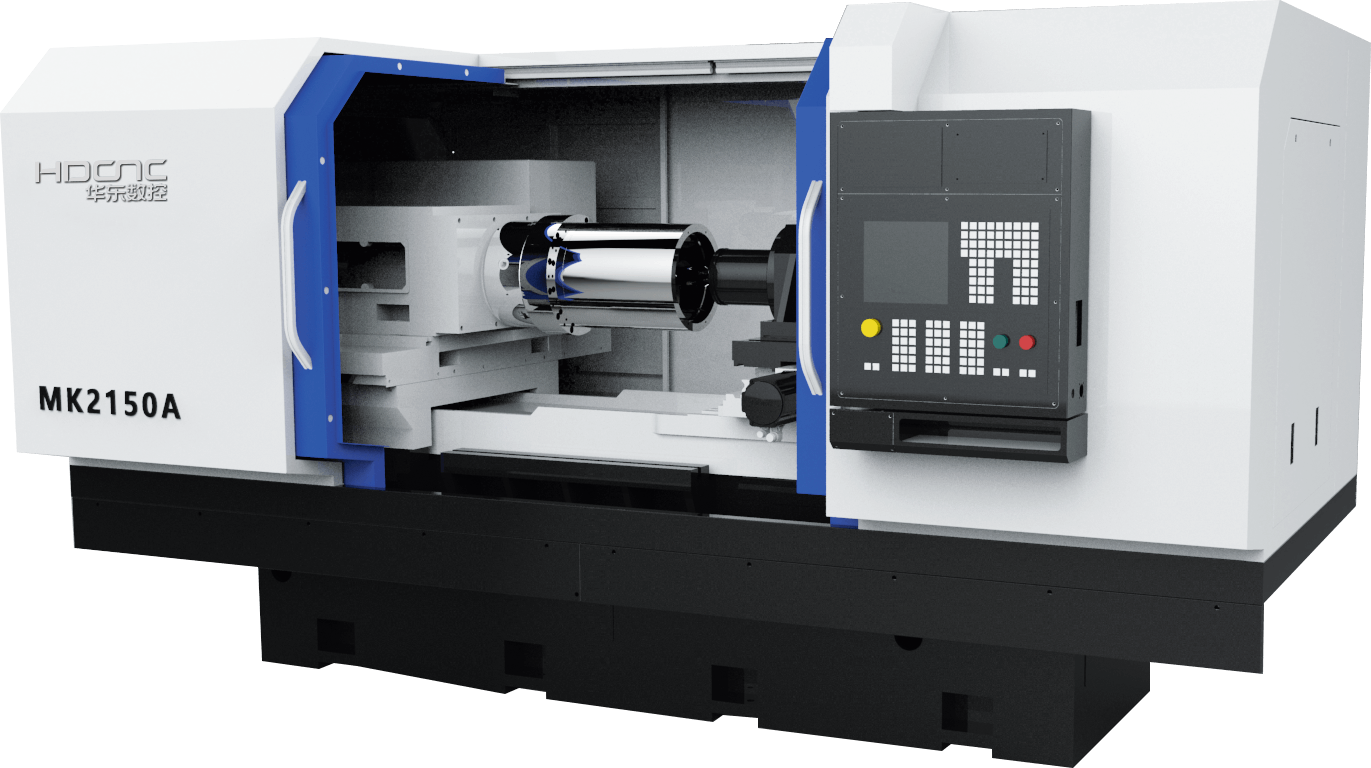

This series of CNC internal grinders is a dual-axis CNC internal grinder, primarily consisting of a bed, worktable, bridge plate, headstock, grinding frame, servo drive system, hybrid lubrication system, cooling system, and protective components.
The machine tool bed adopts a new type of reinforced heavy-duty bed, which has good load-bearing capacity and rigidity. The workpiece spindle adopts advanced hybrid and hydrostatic bearing technology, featuring high precision and long service life. The entire grinding cycle of the machine tool is automatically completed, including automatic feeding, automatic dressing of grinding wheel, automatic compensation, automatic size control, etc. It is suitable for both single-piece and small-batch production as well as large-scale production.
Structural Features:
1. The workpiece spindle adopts advanced hydrostatic bearing technology, featuring high precision, strong rigidity, and long service life.
2. The grinding wheel shaft adopts a high-precision electric spindle integrated structure, featuring high speed, stable transmission, and high grinding quality.
3. The X-axis (horizontal) movement utilizes a G1-grade high-precision linear guide rail paired with a Heidenhain grating scale, ensuring smooth and reliable motion with high accuracy.
Scope of application:

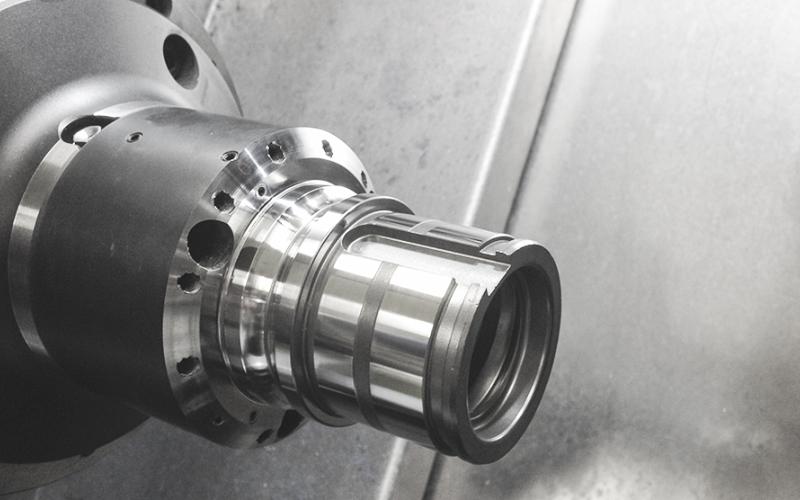

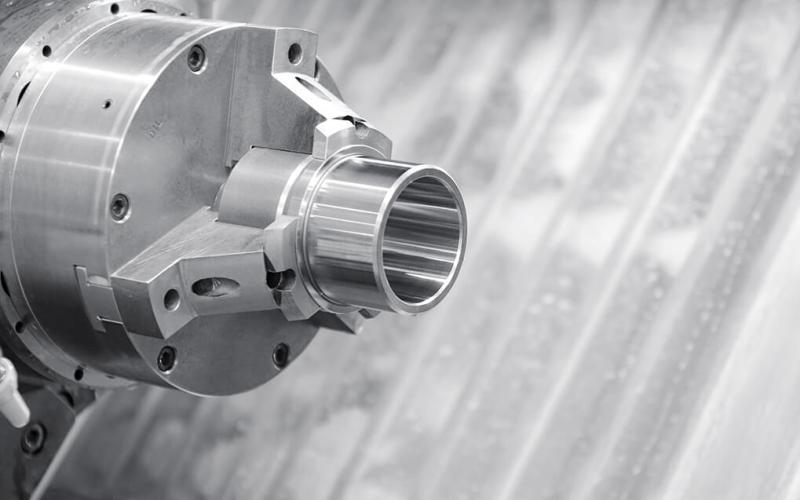

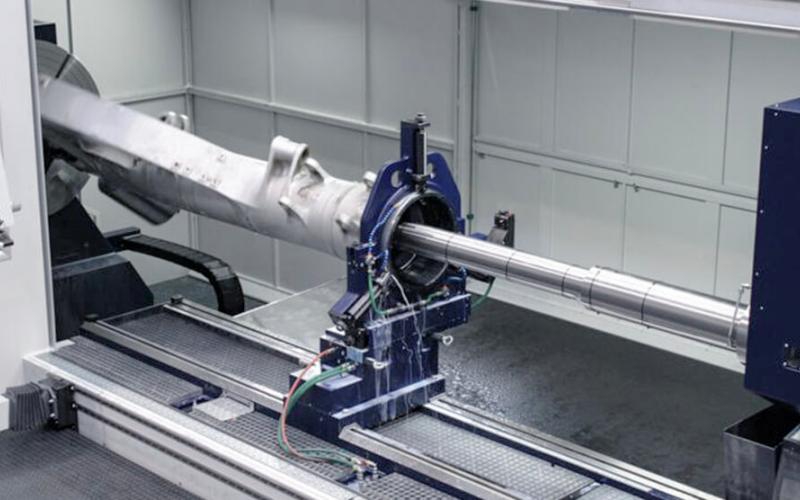

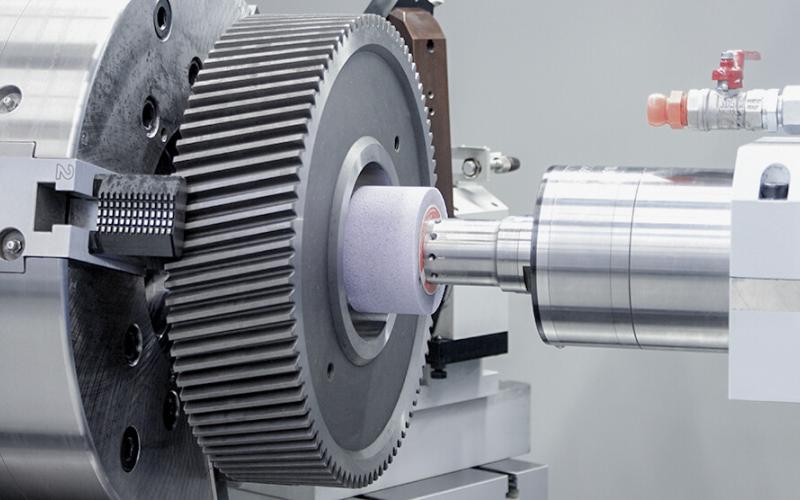

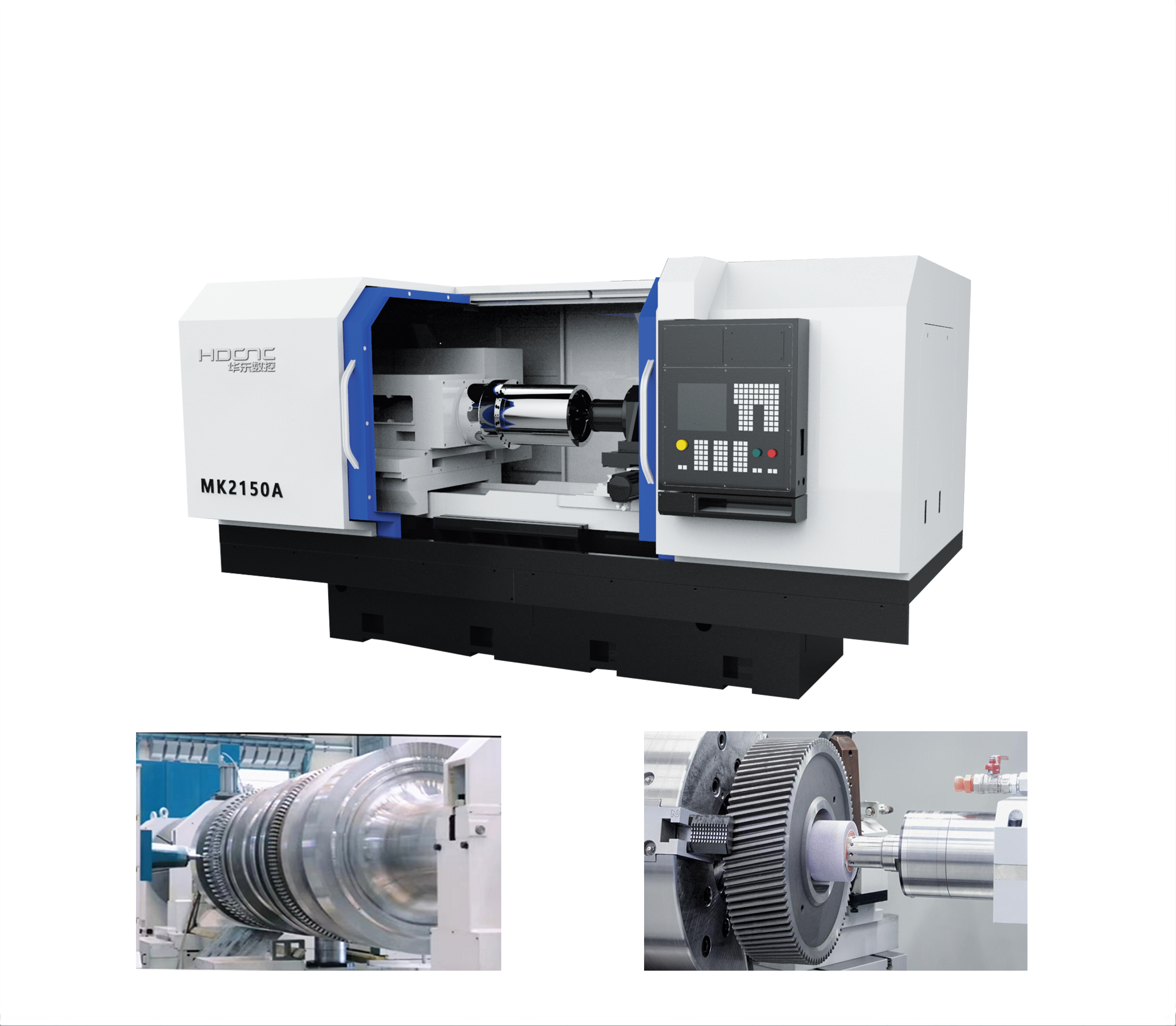

This machine tool is suitable for grinding workpiece inner holes, concave end faces, outer end faces, multi-step inner holes, and multi-step end faces. It is a versatile production machine tool. It is widely used in grinding processes in aerospace, new energy vehicles, mold industry, gear industry, and other fields.
Technical Parameters:
Model Description | Unit | Specifications | |
MK2130 | MK2150A | ||
Hole grinding diameter | mm | 50～300 | 100～500 |
Maximum depth of hole grinding (when using standard grinding tools) | mm | （When grinding the hole diameter）φ50～φ80：150 | （When grinding the hole diameter）φ100～φ170：200 |
（When grinding the hole diameter）φ80～φ300：320 | （When grinding the hole diameter）φ170～φ500：550 | ||
Maximum turning diameter of workpiece | mm | Φ600 | φ725 |
Maximum rotation angle of the main axis at the bedside | mm | （When using a chuck）30° | |
（When using a flower plate）15° | |||
Maximum lateral movement of the bed head | mm | 250 | |
Workpiece spindle | kg | （Maximum workpiece weight）：300 | |
rpm | （Workpiece rotation speed）：20～320（Infinite） | ||
kW | Workpiece motor power：5.5 | ||
Workpiece clamping method：chuck clamping, bracket | |||
Headstock spindle taper hole： Morse 5# | |||
Grinding wheel spindle | rpm | Maximum rotational speed of grinding wheel shaft：20000 | Maximum rotational speed of grinding wheel shaft：8000 |
kW | Grinding wheel spindle power：18 | Grinding wheel spindle power：11 | |
Grinding wheel spindle taper hole：D36/63 | Grinding wheel spindle taper hole：Morse 5# | ||
Workbench (Z-axis) motion parameters | mm | maximum stroke 600/750 | maximum stroke 725 |
m/min | maximum speed：10 | ||
μm | resolution：1 | ||
Motion parameters of grinding wheel head (X-axis) | mm | maximum stroke：150 | maximum stroke：200 |
m/min | maximum speed：10 | ||
μm | resolution：1 | ||
Total power | kW | 25 | |
Overall dimensions of the machine tool (length × width × height) | mm | 3500/3760×1980×1930 | 3760×1980×1930 |
machine tool weight | kg | 4800/5000 | 6500 |
