| Quantity: | |
|---|---|
Precision measuring industry
Wind power industry
Machine spindle industry
Aerospace Industry

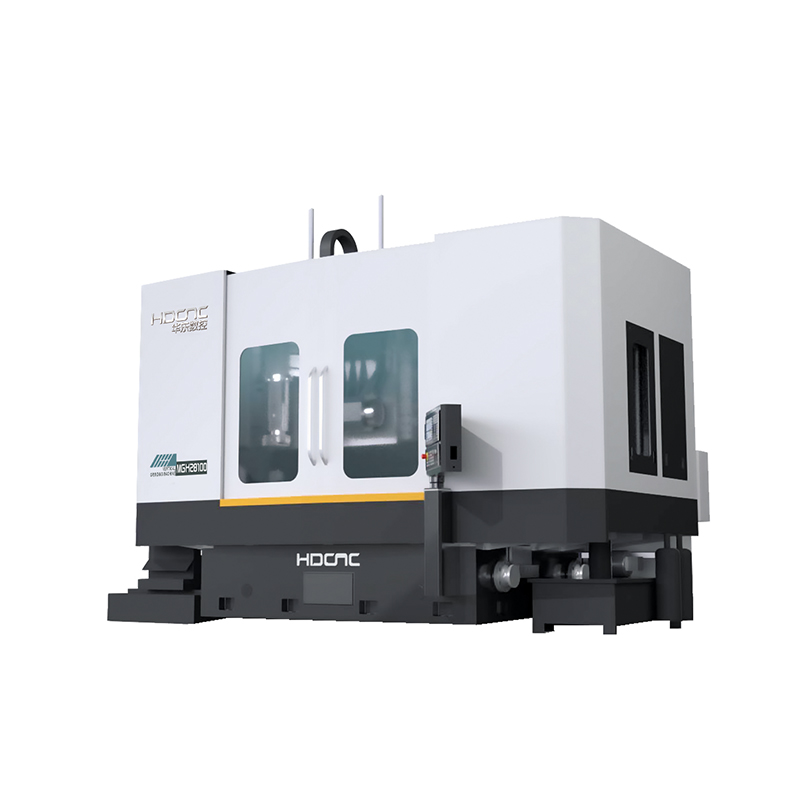

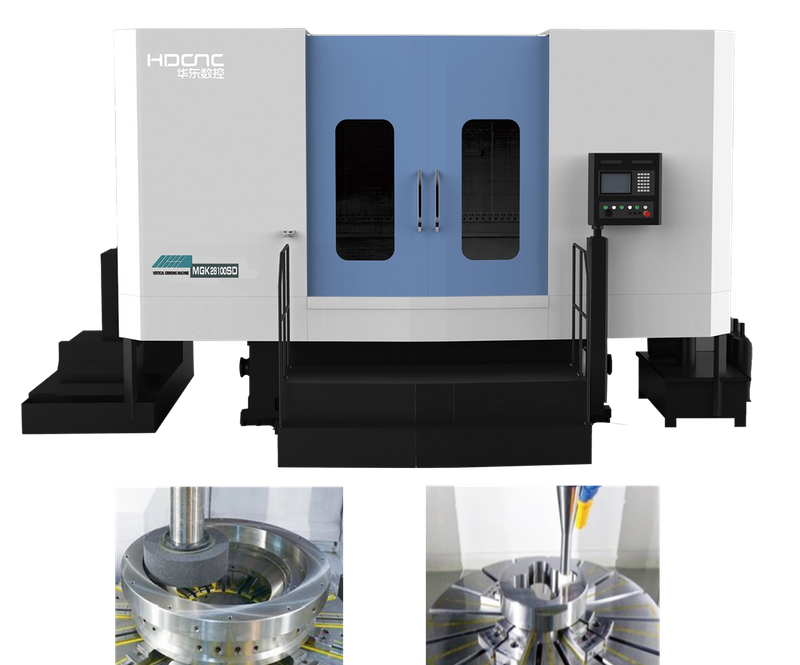

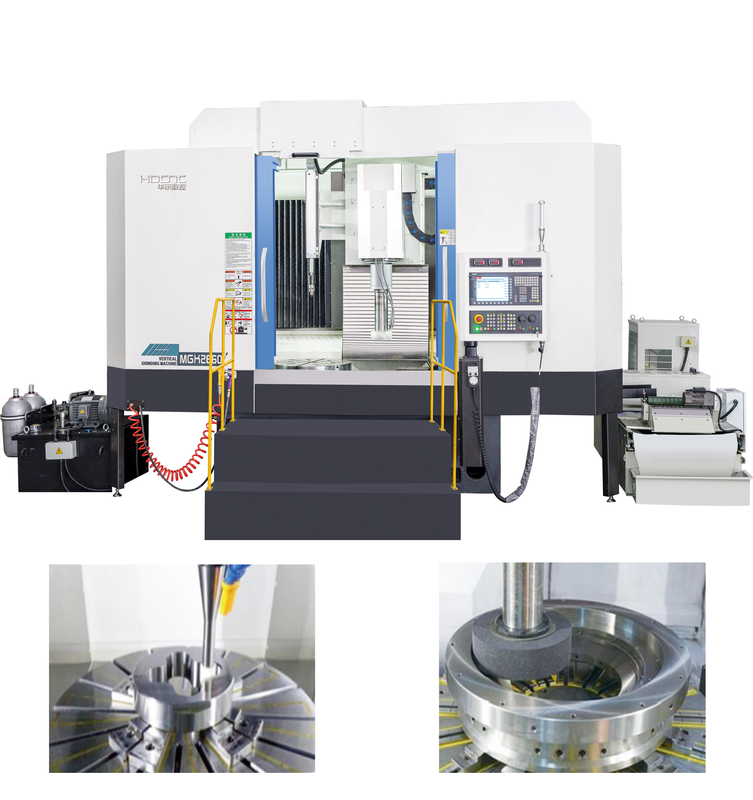

| Closed static pressure turntable | Grinding wheel spindle (oil cooler) |
X axis grating ruler | Large torque permanent magnet (including water cooler) |
Siemens 828D system | Rotary hydraulic station (oil cooler) |
lubricating device for linear guideway and ballscrew | Electric cabinet (including air conditioning) |
Air filtration unit | Magnetic roll paper tape cooling water tank |
Single point diamond pen dresser | Grinding wheel flange and balance stand |
Fully enclosed guard | Water gun, air gun |
| Roller dresser | Electropermanent magnet sucker |
| Half closed guard | Circular arc dresser |
| ATC | Z axis grating ruler |
| Automatic measuring device | Oil mist device |
Model Item | unit | MGK2860 | MGK2880 | MGK28100 | MGK28100H | MGK28125 | MGK28160 | MGK28200 |
Capacity of processing | ||||||||
Maximum workpiece grinding diameter | mm | 750 | 850 | 1100 | 1100 | 1350 | 1800 | 2200 |
Maximum workpiece height | mm | 400 | 400 | 500 | 1000 | 500 | 550 | 550 |
Minimum grinding inner hole | mm | 60 | 60 | 100 | 250 | 100 | 350 | 350 |
Maximum bearing capacity of workbench | kg | 600 | 800 | 2000 | 2000 | 2500 | 3000 | 5000 |
Worktable | ||||||||
Diameter of working table | mm | 600 | 800 | 1000 | 1000 | 1250 | 1600 | 2000 |
Speed of work table | rpm | 200 | 200 | 60 | 60 | 60 | 50 | 40 |
Precision of rotating | mm | 0.0015 | 0.0015 | 0.002 | 0.002 | 0.002 | 0.003 | 0.003 |
Spindle | ||||||||
Maximum spindle speed of vertical grinding wheel | rpm | 10000 | 10000 | 7000 | 6000 | 7000 | 3000 | 3000 |
Vertical grinding wheel spindle power | kw | 11 | 11 | 15 | 15 | 15 | 18.5 | 22 |
Maximum spindle speed of horizontal grinding wheel | rpm | - | - | 2500 | - | 2500 | 2000 | 2000 |
Horizontal grinding wheel spindle power | kw | 11 | 11 | 15 | 15 | |||
1. Adopt high precision closed static pressure rotary table and high torque permanent magnet motor direct drive, with large bearing capacity and stable operation; Table rotation accuracy (axial/radial) ≤2μm
2. High strength stair wall beam and reinforced base with full contact structure, to ensure the machine high rigidity, good precision retention;

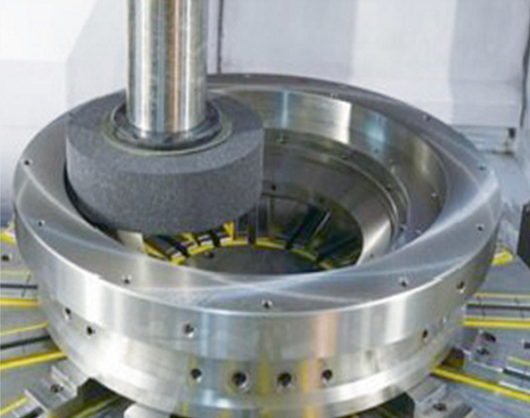

3. The use of NSK precision bearing spindle (axial/radial ≤2μm), vertical and horizontal double spindle, to meet different processing requirements; Optional with spindle of high-precision dynamic and static spindle (axial/radial ≤1μm) to meet the needs of higher precision machining;
4. Using imported SCHNEEBERGER big size High Precision Roller Type Guideway, X axis standard with FAGOR grating ruler;
5. Rotary table oil supply system, torque motor, grinding wheel spindle, cooling system, control system are equipped with temperature control device, to ensure the stable work of key components of the whole machine;

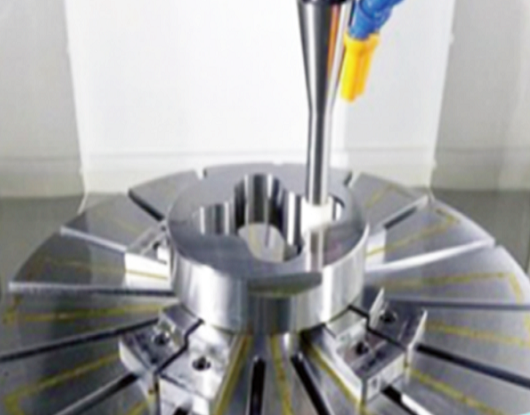

6. The work table is equipped with standard disk, optional electropermanent magnet chuck, to meet the needs of different workpiece clamping;
7. Using fully closed cover, can be configured with high power oil mist collector, optimize the working environment.
