Item | Unit | TK6913 | TK6916 | TK6920 | HBW160 | HBW200 |
Headstock section | ||||||
Boring shaft diameter | mm | ф130 | ф160 | ф200 | ф160 | ф200 |
Spindle taper | Rpm | ISO50 | ISO50 | ISO50 | ISO50 | ISO60 |
Spindle speed | Mm | 2-1500 | 2-1200 | 2-1200 | 2-1500 | 2-1500 |
Milling shaft end dimension | Mm | ф221.44 | ф280 | ф320 | ф300 | ф300 |
Ram section size | mm | 420*460 | 480*520 | 480*520 | 480*520 | 480*520 |
Spindle power | KW | 30 | 55 | 85 | 71 | 71 |
Max. torque of milling spindle | Nm | 2200 | 5500 | 11000 | 10000 | 10000 |
Max.feed resitance of milling spindle | N | 18000 | 23000 | 26000 | 38000 | 38000 |
Processing range | ||||||
X axis travel | mm | 4000+1000*n | 6000+1000*n | 6000+1000*n | 6000+2000*n | 6000+2000*n |
Y axis travel | mm | 2000-4000 | 3000-6000 | 3000-6000 | 3000-6000 | 3000-6000 |
Z axis travel(ram) | mm | 800 | 1200 | 1200 | 1200 | 1200 |
W axis travel(boring shaft) | mm | 700 | 1200 | 1200 | 1200 | 1200 |
Speed | ||||||
XYZ axis rapid speed | Mm/min | 8000 | 8000 | 8000 | 8000 | 8000 |
W axis rapid speed | Mm/min | 6000 | 6000 | 6000 | 6000 | 6000 |
XYZ axis feed speed | Mm/min | 1-6000 | 1-6000 | 1-6000 | 1-6000 | 1-6000 |
W axis feed speed | Mm/min | 1-4000 | 1-4000 | 1-4000 | 1-4000 | 1-4000 |
Accuracy | ||||||
XYZW axis positioning accuracy | Mm | 0.02/1000 | 0.02/1000 | 0.02/1000 | 0.02/1000 | 0.02/1000 |
XYZW axis repeat positioning accuracy | mm | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 |

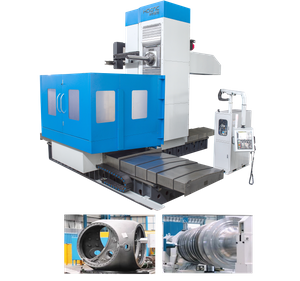

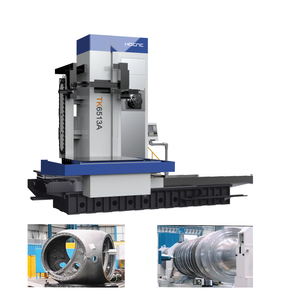

Item | Unit | TK6511 | TK6513 | TK6516 |
Headstock section | ||||
Boring shaft diameter | mm | ф110 | ф130 | ф160 |
Spindle taper | Rpm | ISO50 | ISO50 | ISO50 |
Spindle speed | Mm | 2-1500 | 2-1500 | 2-1200 |
Milling shaft end dimension | Mm | ф221.44 | ф280 | ф320 |
Ram section size | mm | 420*460 | ||
Spindle power | KW | 17/22.5 | 30/36 | 30/36 |
Max. torque of milling spindle | Nm | 1300 | 2234 | 2553 |
Max.feed resitance of milling spindle | N | 18000 | 20000 | 40000 |
Processing range | ||||
Table size | mm | 1400*1600 | 1600*2000 | 2500*2500 |
Max.table loading weight | kg | 10000 | 10000 | 20000 |
Min. division | ° | 0.001 | 0.001 | 0.001 |
X axis travel | mm | 3000 | 3000 | 3000 |
Y axis travel | mm | 2000 | 2000 | 2500 |
Z axis travel(ram) | mm | 1500 | 1600 | 1600 |
W axis travel(boring shaft) | mm | 600 | 800 | 1000 |
Speed | ||||
XYZ axis rapid speed | Mm/min | 8000 | 10000 | 10000 |
W axis rapid speed | Mm/min | 6000 | 4000 | 4000 |
XYZ axis feed speed | Mm/min | 1-6000 | 1-6000 | 1-6000 |
W axis feed speed | Mm/min | 1-4000 | 1-4000 | 1-4000 |
B aixs feed speed | °/min | 360 | 360 | 360 |
Accuracy | ||||
XYZW axis positioning accuracy | Mm | 0.02/1000 | 0.02/1000 | 0.02/1000 |
B axis positioning accuracy | '' | 8 | 15 | 10 |
XYZW axis repeat positioning accuracy | mm | 0.015 | 0.015 | 0.015 |
Baxis repeated positioning accuracy | '' | 6 | 4 | 8 |
1. Hydrostatic guide
2.high rigid bed with mutiple supports
3.full enclosed headstock
4.Y axis nut rotaion
5.X axis rack and pinion driven, you can choose double motor -double gear clearance mechanism or choose single motor double gear clearance mechanism.
the main transmission box and square ram feed synchronously ,with high speed,low noise,high torque characteristics.
6.imported steel wire rope counterweight balance ,advanced unique balance lifting point.
7.double column design.
8.full grinding of bed column guide rail.
9.column guide rail with unloading device

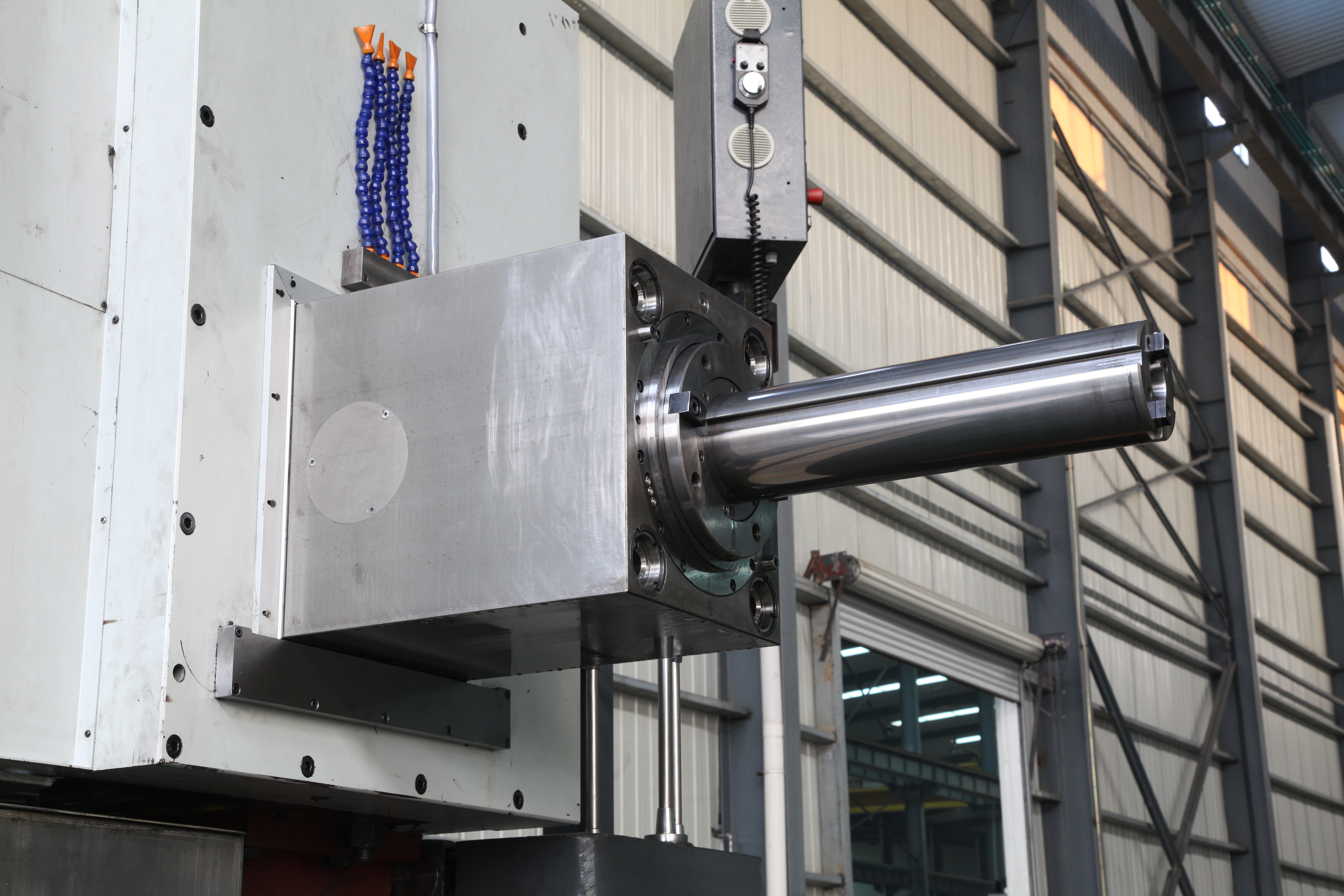

10.Square ram for four sides full package form,with compensation mechanism.
11.high pressure center outlet can be configured.
12.other options:ATC, auto head
